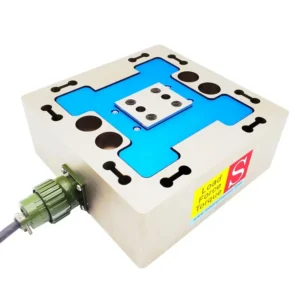

The low profile multi-axis force sensor LCM04 is a robust and versatile measurement device engineered with stainless steel for superior durability and reliability. This LCM04 tri-axial load cell is available in rated capacities of 5kN, 10kN, 20kN, 30kN, and 50kN, making it suitable for a wide range of force measurement applications. The LCM04 is designed to simultaneously measure forces along the Fx, Fy, and Fz axes, capturing three mutually perpendicular loads without the need for complex mathematical manipulation or data processing.

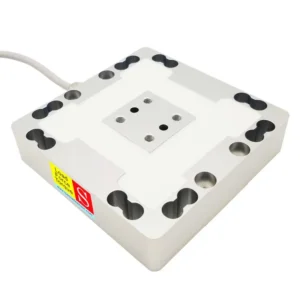

The Low Profile Multi-Axis Load Cell LCM03 is designed for three-dimensional force measurement across the Fx, Fy, and Fz axes, making it ideal for applications that demand precise, multi-directional force data. Available in seven rated capacities—20kg, 30kg, 50kg, 100kg, 200kg, 300kg, and 500kg—the LCM03 provides flexibility to cater to different measurement needs, from light to medium loads. Built on reliable strain gauge technology, this triaxial load cell features three individual Wheatstone bridges, each dedicated to a specific axis. This ensures accurate and real-time force output without the need for complex post-processing or mathematical adjustments, simplifying data collection and analysis.

Model: LCMR

Axes: Fx Fy Fz

Capacity: 10/20/30/50kg

Sensor output: -12mV…+12mV

Amplifier output: -5-5V 0-10V 4-20mA RS485

The 3-axis load cell LCM02 is designed for precise three-dimensional force measurement across the Fx, Fy, and Fz axes, making it a versatile and reliable tool for a range of applications. Available in five rated capacities—100N, 200N, 300N, 500N, and 1000N—the LCM02 can accommodate various force measurement needs, from light to medium loads. Constructed from durable stainless steel, this multi-axis force sensor is built to withstand challenging industrial environments while maintaining accuracy and stability. The sensor features flanged mounting on the bottom and loading surfaces on the top, allowing for secure and straightforward installation into existing systems.

Measurement axes: Fx-Fy-Fz

MTA400-A: 50kg-50kg-150kg

MTA400-B: 100kg-100kg-300kg

MTA400-C: 200kg-200kg-500kg

MTA400-D: 300kg-300kg-800kg

MTA400-E: 400kg-400kg-1100kg

MTA600-A: 600kg-600kg-2500kg

MTA600-B: 1000kg-1000kg-4000kg

MTA600-C: 1100kg-1100kg-2200kg

MTA600-D: 2000kg-2000kg-6000kg

MTA600-E: 3000kg-3000kg-10000kg

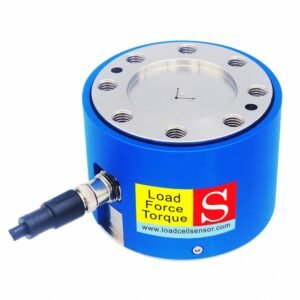

Model: LCM3D

Certification: CE

Measuring direction: Fx Fy Fz

Sensor output: -20mV…+20mV

Amplifier output: -5-5V 0-10V 4-20mA RS485 RS232

Model: LCM07

Certification: CE

Axes: Fx Fy Fz

Capacity: 50kg 100kg 200kg 300kg 500kg 1000kg

Sensor output: -12mV…+12mV

Amplifier output: -5-5V 0-10V 4-20mA

Material: Stainless steel

Structure: Flange-to-flange

Model: LCM3A

Certification: CE

ODxH: Φ52x52mm

Axes: Fx Fy Fz

Capacity: 5kg 10kg 20kg 50kg

Sensor output: -12mV…+12mV

Amplifier output: -5-5V 0-10V 4-20mA

Material: Stainless steel

Ingress protection: IP67

Structure: Flange-to-flange

The 3-axis Load Cell LCM06 is a high-precision sensor built from durable stainless steel and features an innovative flange-to-flange design that allows for straightforward and secure mounting. This versatile load cell is available in rated capacities ranging from 5kg, 10kg, 20kg, 30kg, up to 50kg, making it suitable for a wide range of force measurement tasks. Designed to measure forces in both tension and compression, the LCM06 offers flexibility for applications requiring accurate monitoring under varied load conditions.

The Miniature 3-Axis Force Sensor LCM01 is a compact and versatile measurement device designed to capture forces across three independent axes (Fx, Fy, Fz). With its small footprint and lightweight aluminum construction, the LCM01 weighs only about 120g, making it an ideal choice for applications where space and weight are limited. Rated capacities for this triaxial load cell are available in 10N, 20N, 50N, and 100N, offering flexibility for various precision measurement needs. This sensor allows for simultaneous force measurement in three mutually perpendicular axes without the need for mathematical post-processing.

Model: LCM3B

Certification: CE

Axes: Fx Fy Fz

Material: Aluminum

Capacity: 1kg 2kg (10N 20N)

Sensor output: -12mV…+12mV

Amplifier output: -5-5V 0-10V 4-20mA RS485

The multi-axis load cell LCM09 is distinguished by its highly compact design, boasting a small footprint of just 40x40mm and a low height of only 20mm. This streamlined configuration makes the LCM09 ideal for applications where space is a constraint but precise force measurement is required. Available in capacities of 5kg, 10kg, 20kg, 50kg, and 100kg, the LCM09 can be constructed from either aluminum or stainless steel, depending on the force range and specific application needs. This flexibility ensures that the sensor meets various industrial standards and client specifications.

The miniature 3-axis load cell LCM11 is designed for precision and versatility, highlighted by its exceptionally compact size. With a footprint of only 32x32mm and a low height of 20mm, the LCM11 is ideal for applications where space is limited yet high-performance force measurement is essential. Constructed from red anodized aluminum, the LCM11 combines lightweight properties with robust strength. Available in rated capacities of 50N, 100N, and 200N, it accommodates a range of force measurement needs.

The torque and thrust bi-axial load cell LCM10 is an advanced solution designed to measure torque in both clockwise and anticlockwise directions, as well as force in tension and compression. Constructed from durable stainless steel, the LCM10 features a practical flange-to-flange structure, ensuring easy and secure installation in various setups. This dual-axis sensor offers two separate outputs, one dedicated to measuring applied torque and the other for thrust force, enhancing the precision and reliability of data collection.

Model: LCM08

Certification: CE

Force range: 0-1000kN (Tension & Compression)

Torque range: 0-10kNm (CW & CCW)

Structure: Flange-to-flange

Model: LCM2E

Axes: Fz & Mz

Force capacity: 65kN (Customizable)

Torque capacity: 5kNm (Customizable)

Ingress protection: IP68

MOQ: 1pc

The 2-axis load cell LCM12 is a versatile sensor designed for precise two-dimensional force measurement across the Fx and Fy axes. Available in three rated capacities of 500N, 1kN, and 2kN, this load cell offers reliable performance across a variety of applications. Each axis supports loading in both tension and compression directions, with the unique ability to output a positive signal in one direction and a negative signal in the opposite. This output is linearly related to the applied force, ensuring accurate and interpretable data.

The Stick Shift Load Cell LCM2B is a 2-axis force sensor designed for precise measurement of forces in the Fx and Fy axes. With rated capacities available in 100N, 200N, 500N, and 1kN, the LCM2B is ideal for applications that require reliable force data in both light and heavier load scenarios. Each axis supports tension and compression bidirectional force measurement, delivering an mV signal output that is linearly proportional to the force applied. This ensures accurate, real-time feedback, essential for various testing and monitoring tasks. For applications requiring different output formats, the LCM2B can be connected to an external signal conditioner to produce 0-5V, 0-10V, or 4-20mA outputs, enhancing its compatibility with different data acquisition systems.

Model: LCM2W

Axes: Fx Fy

Capacity: 30kg 50kg 100kg

Structure: Flange-to-flange

Ingress protection: IP68

MOQ: 1pc
