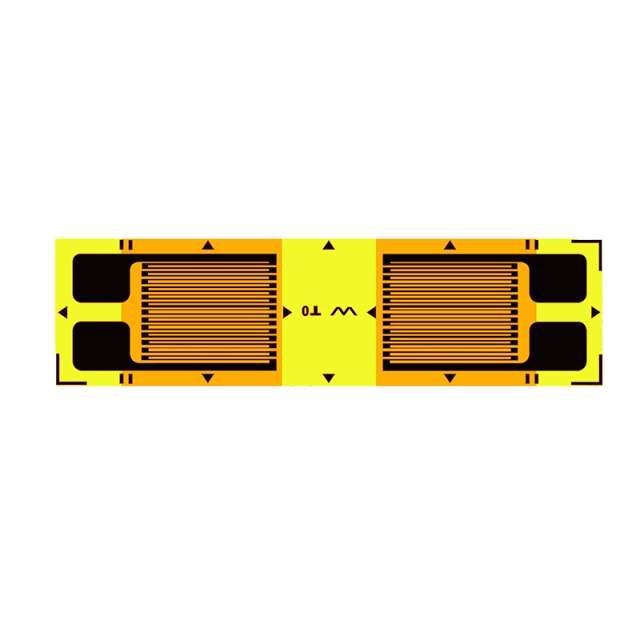

GB-B High Precision Foil Half Bridge Types Of Strain Gauge
Key Features:
Type: GB-B half-bridge type of strain gauge for measuring strain in one direction.
Applications: Ideal for load cells, structural testing, material research, and industrial equipment monitoring.
Construction:
Foil Material: Constantan or nickel-chromium alloy for stable resistance characteristics.
Backing: Flexible polyimide substrate for durability and adhesion.
Resistance: Standard 120Ω or 2000Ω (depending on model).
Gauge Factor: ~2.0–2.2 (typical for metallic foil gauges).
Temperature Compensation: Optimized for compatibility with 11 = Alloy Steel, 16 = Stainless Steel, 23 = Aluminium Alloy, 27 = Magnesium Alloy, M23 = Aluminium Alloy
Usage & Applications:
1. GB-B half-bridge foil strain gauge sensor.
Load Cells (beam-type, bending applications).
Stress Analysis (unidirectional force testing in materials).
Structural Monitoring (e.g., axial strain in bridges, trusses)

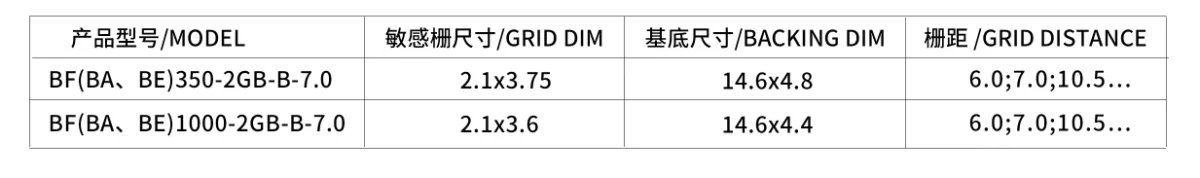

Dimension Size:
