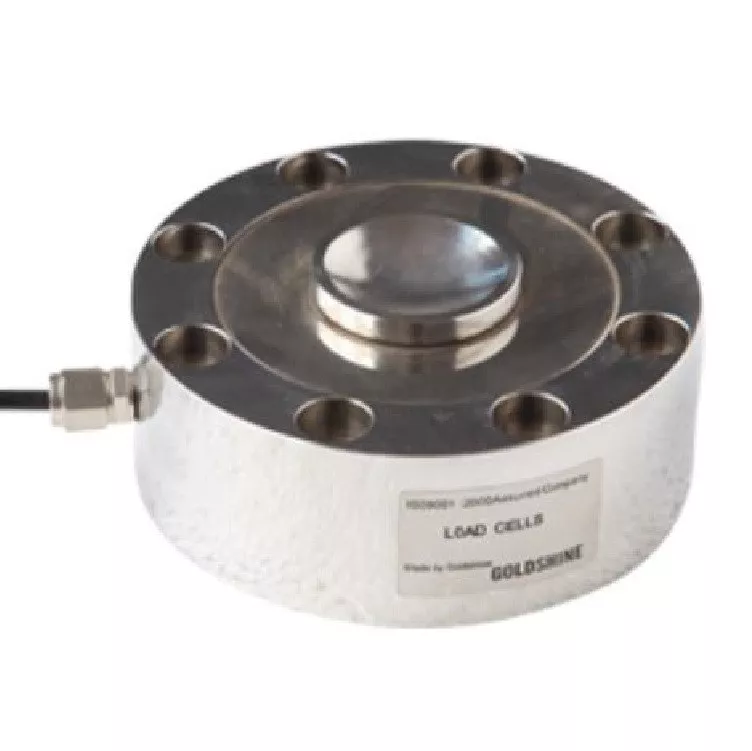

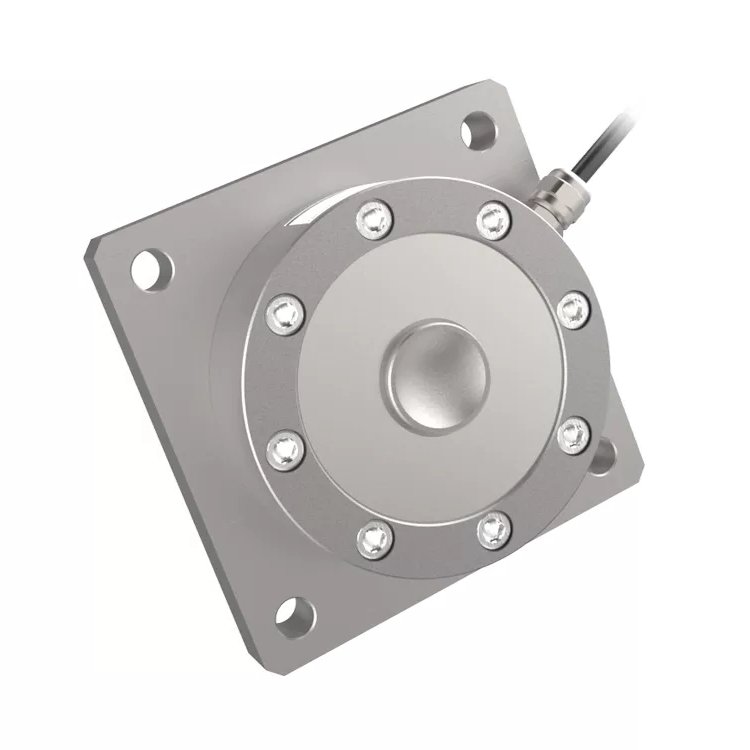

LC502 Simulation Spoke Type Load Cell Torsional Spoke Ring Type Load Cell
Dimensions: Unit: mm
Technical Parameter:
- NS-TH3 series spoke type load cell structure;
- Simple, robust and resistant to lateral forces and eccentric loads
- Low center of gravity and easy installation;
- It is widely used in automatic control systems as automatic control components such as weighing and force measurement.
- NS-TH18 series load cells are compact in structure, low in height, and have good eccentric load resistance
- It is an upgraded product of TH17 series
- Used in automotive press-fitting, automation equipment and other fields
It can be applied to testing machines, truck scales, hopper scales, various industrial weighing systems, etc.
Material: stainless steel, alloy steel
Size: Large range Other ranges can be customized
Product description:Features:
Capacity ：0.5~50Ton
42CrMoA alloy steel
Compact structure
Nickel plating on surface
Suitable for material testing machine, packaging scale, belt scale, hopper scale and other force testing instrument as well as automation equipment and testing filed.
1. Made of alloy steel or stainless steel
2. Suitable for belt weigher, hopper scale and other weighing devices
3. Good steel performance and high accuracy
Product description:
Capacity ：10kg~50Ton
Alloy Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in electronic truck scales hopper scales, automotive testing equipment other electronic weighing or force measuring fields
KWT1D75H series is a kind of bilayer through-hole struture load cell,it is a improved version based on KWT1D55H series to meet more measurement application scene. It adopts the multi-strain gauge bridge design, which can significantly optimize the performance and reduce the influence of external load on the sensor performance. This series has a low structure, and its very suitable for applications in environments with limited vertical space. This is a load cell that can handle eccentric loads and still maintain high accuracy and reliability.
KWT1D100H is a kind of ring symmetric force sensor, which adopts a hollow ring double-spoke structure. It is based on strain principle with an excellent and sensititive internal strain area to distritube the strain guege. It can provide high-precision measurement results and better protect the strain gauge. Also realizing bending moment compensation and lateral force compensation for sensors through special structural design and circuit design. It will improve the production efficiency with easy and fast installation.
Product Numbers:TAS511
Product description:Features:
Capacity ： 0~1000kg
Material: stainless steel
Type: compression and tension type
Defend grade: IP67.
Application: the compression and tension measurement in medical and weighing system.
The ZMLB is spoke type load cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP67. The shear beam structure gives load cell high performance of linearity. Zhimin offers ODM&OEM service.
Features:
Capacity 200kg-60t
High accuracy
Low profile
Nickel plated alloy steel IP67
Optional features:
Hermetically sealed available
Product description:
Capacity ：30~1000kg
Material: stainless steel
Defend grade: IP66.
Application: It is widely used for electronic truck scales, hopper scales, automotive testing equipment other electronic weighing or force measuring fields and other automation fields.
