KWT1D100H  is a kind of ring symmetric force sensor, which adopts a hollow ring double-spoke structure. It is based on strain principle with an excellent and sensititive internal strain area to distritube the strain guege. It can provide high-precision measurement results and better protect the strain gauge. Also realizing bending moment compensation and lateral force compensation for sensors through special structural design and circuit design. It will improve the production efficiency with easy and fast installation.

• NS-TH1 series load cell is composed of combined S-beam structure and metal foil strain gauge, with overload protection device;
• It has the advantages of high measurement accuracy, good temperature characteristics and stable operation;
• It is widely used in dynamic and static measurement of various structures and primary instruments of various electronic scales.

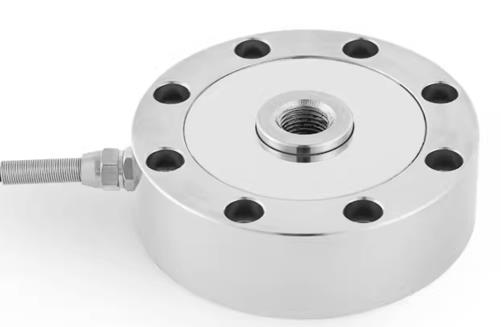

KWT1D65 series is a kind of high-accuracy and multi-functions spoke type sensor. It has a unique integral multi-beam shear design that can withstand high external load, which makes the load cell with good stiffness and excellent dynamic response ability.

It can be applied to testing machines, truck scales, hopper scales, various industrial weighing systems, etc.

Material: stainless steel, alloy steel

Size: Large range Other ranges can be customized

• NS-TH18 series load cells are compact in structure, low in height, and have good eccentric load resistance
• It is an upgraded product of TH17 series
• Used in automotive press-fitting, automation equipment and other fields

KWT1D60 is a kind of high accuracy and overload capacity load cell. The product has a built-in embedded circuit for real-time data accquisition and calculation, and can measure the value of force fastly. This series can also match the measuring requirements of multiple range.

• Rail-type installation is convenient
• Input reverse polarity protection and output protection
• Through 4000V EMC. Strong anti-interference ability
• Long-term stability and high precision
• Can be equipped with various strain gauge sensors

KWT1D63 sensor is a tensile and compressive force transducers with good performance and great overload capacity, it has high-precision embedded integrated circuit, when the load on the force sensor can be collected and solved in real time.

• NS-TH17 series load cells are compact and low in height
• Two forms of rubber seal and welded seal can be selected, all stainless steel material, anti-corrosion;
• It is suitable for platform scales, truck scales, rail scales and automatic measurement and control fields.

1.Alloy steel;

2.Low height, good rigidity, high precision, load-deflection resistance is strong;

3.Suitable for electronic belt scale, hopper scale, storage scale, tank scales, mechanics of materials testing machine, etc. weighing devices.
