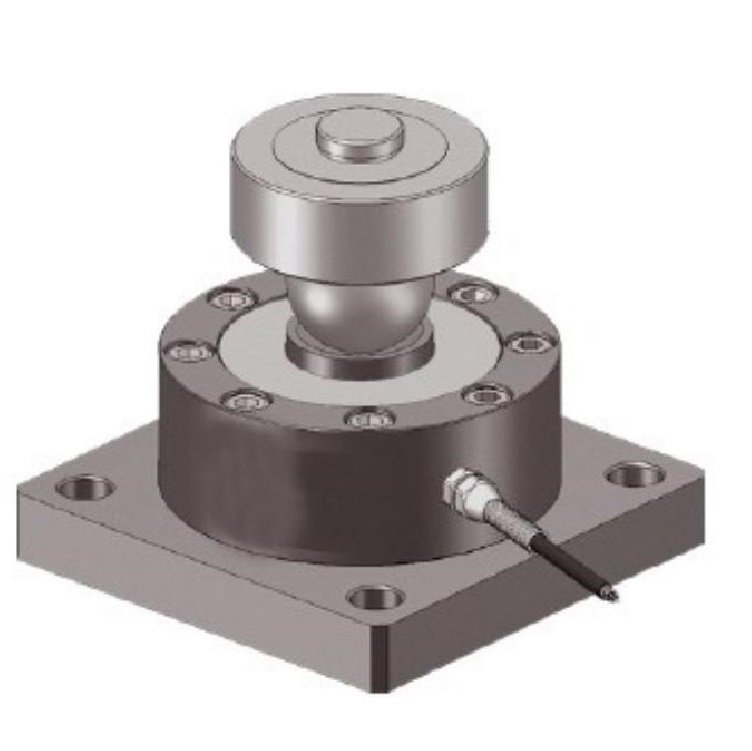

LC502MA Mini Spoke Type Load Cell Torsional Ring Load Cell
Dimensions: Unit: mm
Technical Parameter:
The ZMLB is spoke type load cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP67. The shear beam structure gives load cell high performance of linearity. Zhimin offers ODM&OEM service.
Features:
Capacity 200kg-60t
High accuracy
Low profile
Nickel plated alloy steel IP67
Optional features:
Hermetically sealed available
1.Alloy steel;
2.Low height, good rigidity, high precision, load-deflection resistance is strong;
3.Suitable for electronic belt scale, hopper scale, storage scale, tank scales, mechanics of materials testing machine, etc. weighing devices.
- Rail-type installation is convenient
- Input reverse polarity protection and output protection
- Through 4000V EMC. Strong anti-interference ability
- Long-term stability and high precision
- Can be equipped with various strain gauge sensors
Product Numbers:TAS511
Product description:Features:
Capacity ： 0~1000kg
Material: stainless steel
Type: compression and tension type
Defend grade: IP67.
Application: the compression and tension measurement in medical and weighing system.
Widely used in testing machines, truck scales, hopper scales, various industrial weighing systems.
Material: stainless steel, alloy steel
Size: Spoke type, Other ranges can be customized
KWT1D55H series can provide reliable test results even in harsh industrial environments. The accurate and reliable prouction process ensures that it has a small linear error. The extremely high rigidity makes the sensor fit for scientific research and rapid production processes.
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robotics, mold assembly;And other industrial test, measurement and control systems.
Material: stainless steel
Size: Spoke type
- NS-TH1 series load cell is composed of combined S-beam structure and metal foil strain gauge, with overload protection device;
- It has the advantages of high measurement accuracy, good temperature characteristics and stable operation;
- It is widely used in dynamic and static measurement of various structures and primary instruments of various electronic scales.
KWT1D65 series is a kind of high-accuracy and multi-functions spoke type sensor. It has a unique integral multi-beam shear design that can withstand high external load, which makes the load cell with good stiffness and excellent dynamic response ability.
KWT1D100H is a kind of ring symmetric force sensor, which adopts a hollow ring double-spoke structure. It is based on strain principle with an excellent and sensititive internal strain area to distritube the strain guege. It can provide high-precision measurement results and better protect the strain gauge. Also realizing bending moment compensation and lateral force compensation for sensors through special structural design and circuit design. It will improve the production efficiency with easy and fast installation.
Widely used in medical testing, robotics, mold assembly and other industrial test, measurement and control systems;
It is also suitable for various industrial weighing systems such as testing machines, truck scales, hopper scales and so on.
Material: stainless steel, alloy steel
Size: Flanged, Range can be customized
