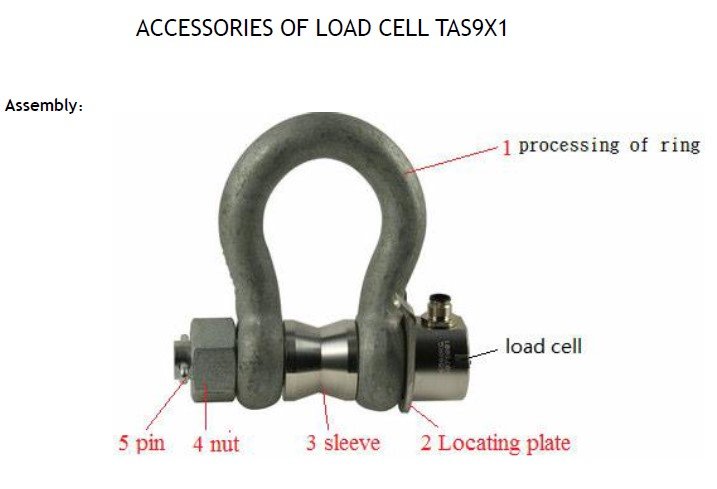

TAS9X1 Load Pin
INTRODUCTION:
| capacity | Ton | 3, 6.5, 12, 25, 55 |
| Accuracy class | G10 | |
| Output sensitivity | mV/V | 1.5 ± 1% |
| Combined error | %FS | 1 |
| Recommended excitation | Vdc | 5~ 12 ( max 18) |
| Electrical connection | Cable | 4 core shielded PVC cable, Ø5.0 ± 0.2 × 12m |

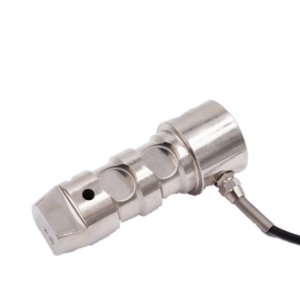

The ZMHBZ is a kind of load pin widely used in weighing industrial. Zhimin offers custom solutions which help you design your unique load cell application. In order to reduce your cost, zhimin can produce sensors according to your current products. Our aim is to provide best solutions for your precious clients.
Features:
Capacity 1t-5t
Shaft pin
Cost-effective
Nickel plated alloy steel
Optional features:
Optional output(4-20mA, 0-5V)
The ZMHBZB is load cell pin widely used for ports, terminals and cargo cranes as well as hoist, lifting equipment and safety test applications. The 17-4PH construction enables load cell achieve IP68 protection class. The capacity and dimension can be designed based on customer’s requirements. The ZMHBZB has very good accuracy and long-term stability.
Features:
Capacity 50KN
High stability
Stainless steel construction
Crane, hoist and lifting applications
Optional features:
Customizable dimensions
High-precision weighing sensor, stainless steel material, electronic weighing system
● High precision weighing sensor
● Stainless steel material
● Electronic weighing system
| Model Number: | TBA | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated output: | 3t,5t | Sensitivity: | 1.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V (AC o r DC) | Maximum Excitation Voltage: | 24V (AC or DC) |
| Zero Balance: | ±1%F.S | Safe Overload: | 150%F.S |
| Ultimate Overload: | 250%F.S | Working temperature: | (-30~+70)℃ |
| Model Number: | TBB | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Rated Load: | 3t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
| Model Number: | TBQ | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | mixing machine | Theory: | resistant strain |
| Output: | 2.0mv/v | Description: | load pin |
| Rated Load: | 5t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
