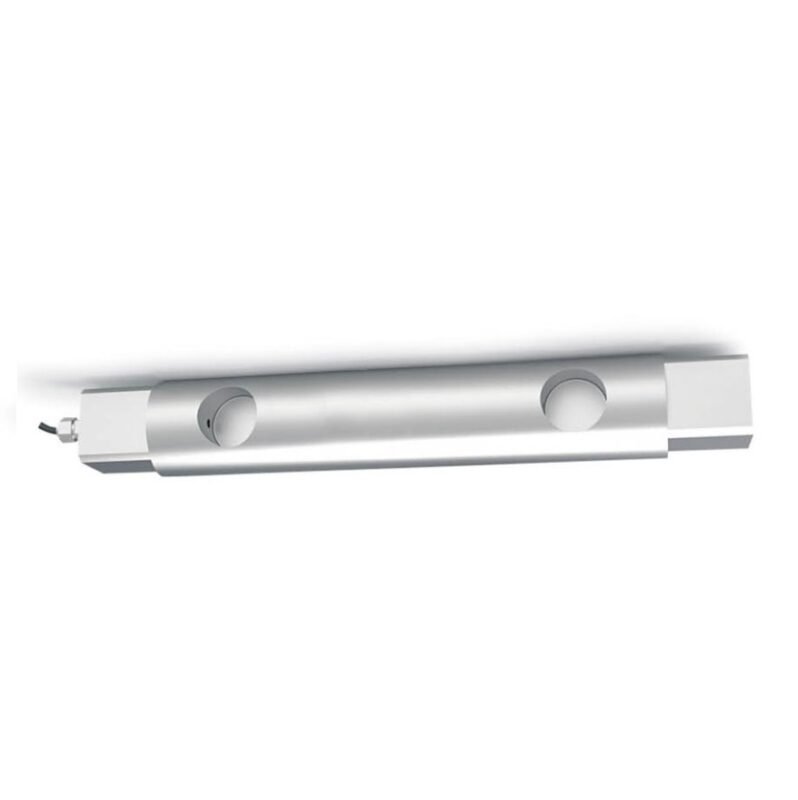

LC7003 Load Cell Shear Pin Limitor Loading Pin for Weight Lifting Chain Hoist
Dimension:in mm
Technical Parameter:
| Model Number: | TBB | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Rated Load: | 3t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
| Model Number: | TBA | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated output: | 3t,5t | Sensitivity: | 1.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V (AC o r DC) | Maximum Excitation Voltage: | 24V (AC or DC) |
| Zero Balance: | ±1%F.S | Safe Overload: | 150%F.S |
| Ultimate Overload: | 250%F.S | Working temperature: | (-30~+70)℃ |
The structure of the shear pin type load cell is simple and the installation is convenient. This load cell for sale is suitable for port and terminal cargo measurement and safety inspection of hoist and lifting equipment.
Axle pin sensor, alloy steel material, tensile and compressive measurement, electronic weighing system
● Shaft pin sensor
● Alloy steel material
● Tension and compression measurement
● Electronic weighing system
