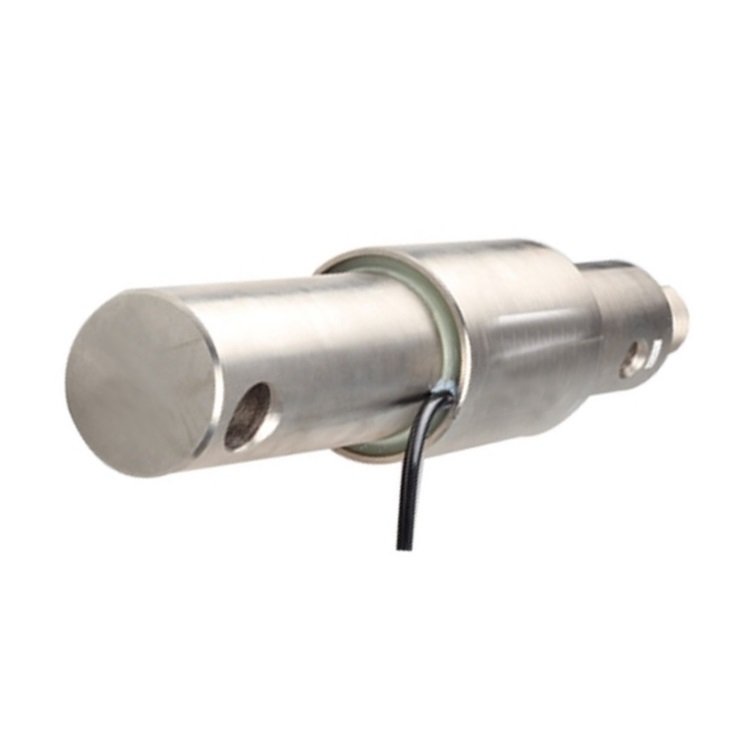

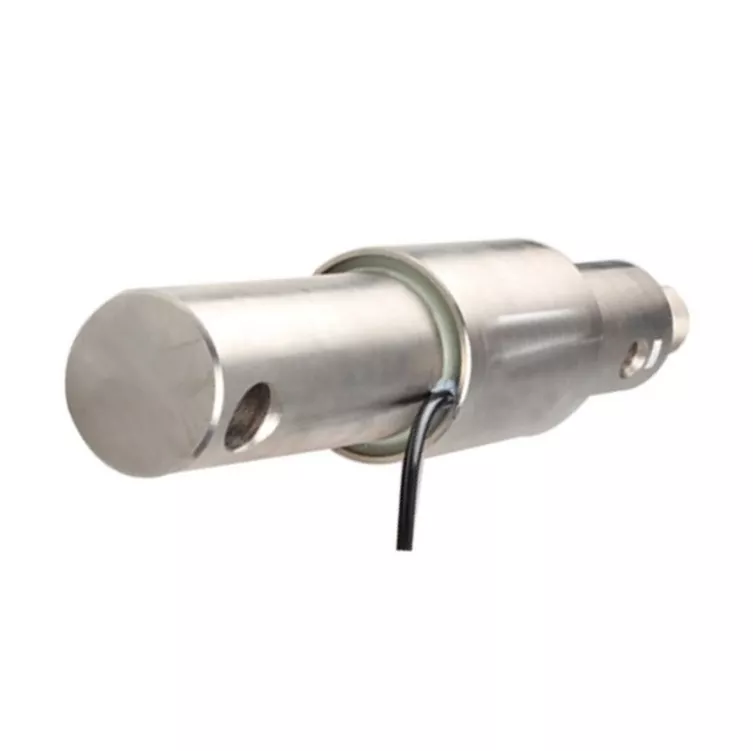

LC7201 Custom Load Pin Designs Clevis Pin Type Load Cell

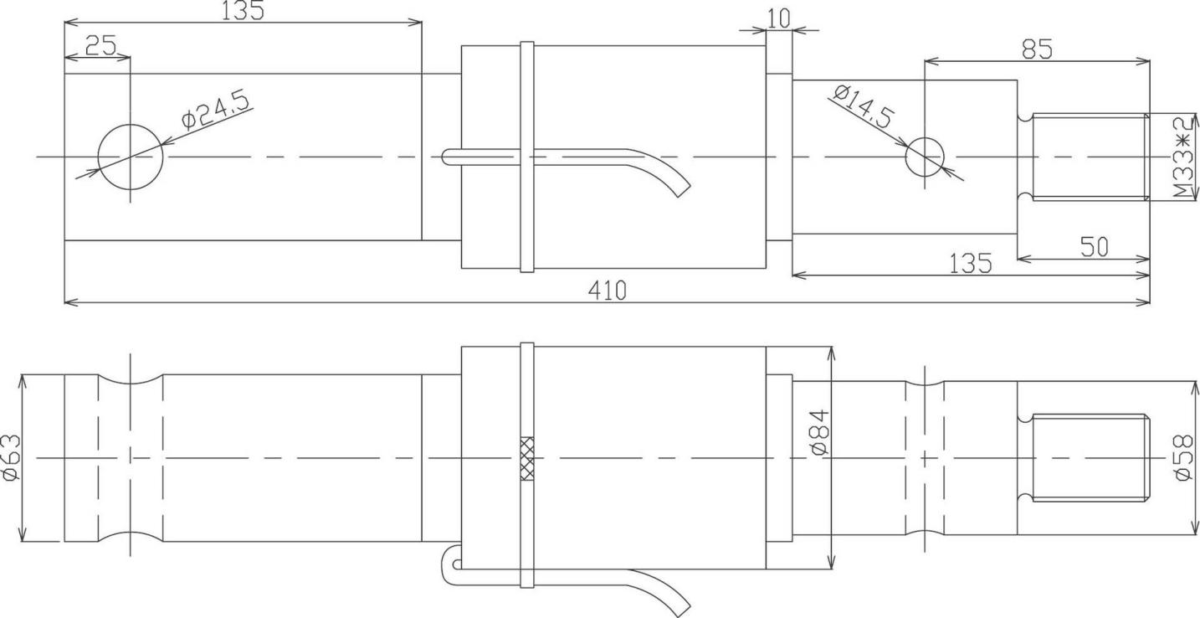

Dimension:
Technical Parameter:
The ZMHBZ is a kind of load pin widely used in weighing industrial. Zhimin offers custom solutions which help you design your unique load cell application. In order to reduce your cost, zhimin can produce sensors according to your current products. Our aim is to provide best solutions for your precious clients.
Features:
Capacity 1t-5t
Shaft pin
Cost-effective
Nickel plated alloy steel
Optional features:
Optional output(4-20mA, 0-5V)
| Model Number: | TBQ | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | mixing machine | Theory: | resistant strain |
| Output: | 2.0mv/v | Description: | load pin |
| Rated Load: | 5t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
Product description:
Capacity ：3~55Ton
Material: stainless steel materials
Type: Parallel beam type
Defend grade: IP68
High accuracy, stable and reliable
Application: draft sensors, cranes, hopper weighing, process weighing and onboard vehicle weighing
The structure of the shear pin type load cell is simple and the installation is convenient. This load cell for sale is suitable for port and terminal cargo measurement and safety inspection of hoist and lifting equipment.
