Product Description:

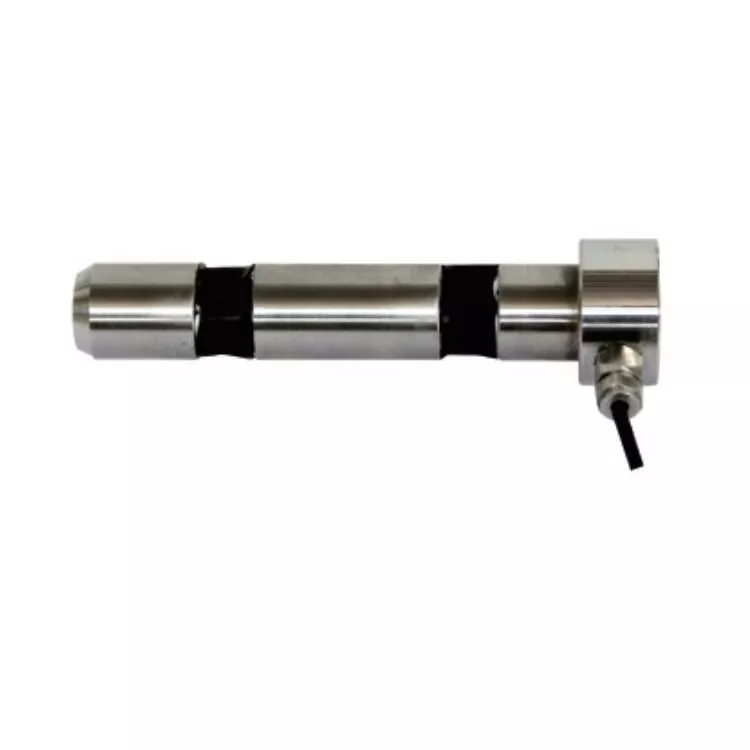

The pin shape double shear beam structure can replace the original pin shaft. It has the characteristics of high precision, anti-eccentric load and high long-term stability. It is widely used in all kinds of vehicles, hoisting mechanism, traction equipment and industrial automation measurement and control system.
Dimension:
Specification:
| Model Number: | TBQ | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | mixing machine | Theory: | resistant strain |
| Output: | 2.0mv/v | Description: | load pin |
| Rated Load: | 5t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
| Model Number: | TBA | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated output: | 3t,5t | Sensitivity: | 1.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V (AC o r DC) | Maximum Excitation Voltage: | 24V (AC or DC) |
| Zero Balance: | ±1%F.S | Safe Overload: | 150%F.S |
| Ultimate Overload: | 250%F.S | Working temperature: | (-30~+70)℃ |
