TAL220G Micro load cell with connector
INTRODUCTION:
| Capacity | kg | 1.5, 2, 4 |
| Accuracy | %FS | ± 0.05% |
| Output signal | mV/V | 1.0 ± 0.1 |
| Recommend excitation | Vdc | 3~10Vdc |

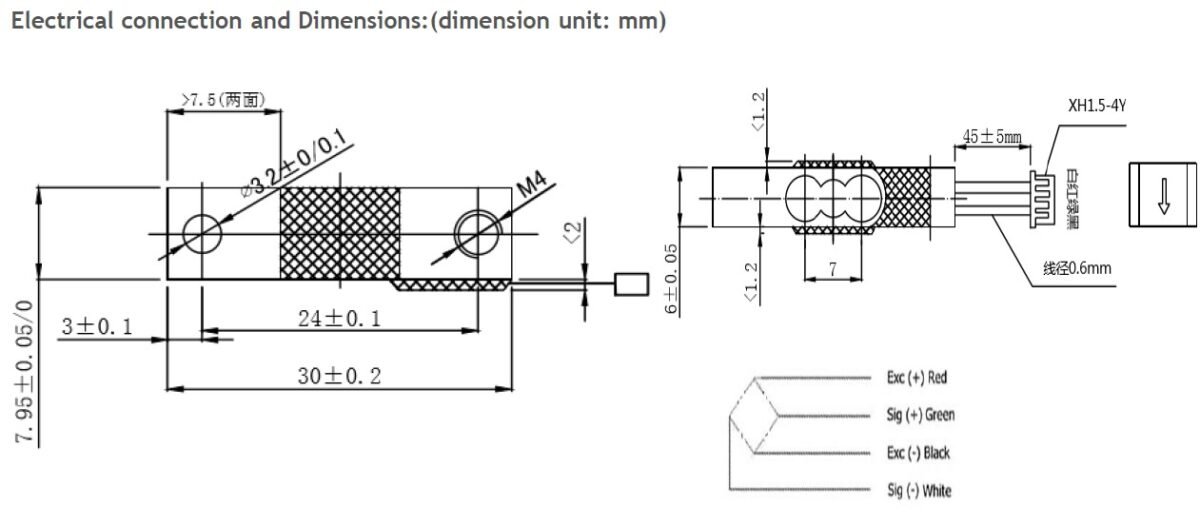

| Electrical connection | Cable | 4 color wire ,Ø0.6×45 mm with connector |
HT SENSOR / TAL220G / Micro load cell with connector
Product description:Features:
Capacity ： 100~750g
Material: aluminum-alloy
Type: Parallel beam type
Defend grade: IP65
Application : body scales, hand scales, kitchen scales,postal scales, fishing scales, baby body scales and other micro electronic weighing systems.
SC635는 SC133의 소형 버전입니다. SC133과 동일한 마이크로 빔 전단 프로파일을 사용하며, 용량도 동일하지만, 소형 적용 분야에 적합하도록 길이가 더 짧습니다. SC635의 단점 중 하나는 각 측면에 장착 구멍이 하나만 있어 설치 시 특별한 고려 사항이 필요할 수 있다는 점입니다.
The SC635 is the smaller variant of the SC133. It is the same micro beam shear profile as the SC133 and also the same capacity but is shorter in length for compact applications. Note that one trade-off of the SC635 is that there is only one mounting hole on each of the sides and may require special consideration when installing.
SC133은 다양한 소매 및 산업 분야에 사용하도록 설계된 마이크로 빔 전단 로드셀입니다. 알루미늄으로 제작되고 양극산화 처리되어 SC133은 뛰어난 장기 정확도와 신뢰성을 제공합니다.
The SC133 is micro beam shear load cell designed for use in a wide range of retail and industrial applications. It is constructed from aluminum and anodized giving the SC133 great long term accuracy and reliability.
SC611CD는 SC133 및 SC635와 유사한 소형 로드셀입니다. SC133보다 작고, 빔 프로파일은 동일하지만 길이가 더 짧아 공간 제약이 있는 어플리케이션에 적합합니다. 또한, SC133과 동일한 용량으로 제공되며 최대 50kg까지 측정 가능합니다.
The SC611CD is a miniature load cell that is similar to the SC133 and SC635. It smaller than SC133, it has the same beam profile but is also shorter making it ideal for the space constrained applications. It is also available in the the same capacities as the SC133 with a maximum of 50kg.
The ZMMA1 is miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The low profile, small diameter design enables the ZMMA1 to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.
Features:
Capacity 500N-5000N
Compact size
Easy installation
Stainless steel construction
Optional features:
4-20mA or 0-5V output
The ZMMC3 is through-hole force sensor which is available in a wide range of standard capacities from 50N through to 1000N. Zhimin offers custom solutions which help you design your unique load cell application. For wahser type load cell, we need to know your required diameter and through hole size. In order to reduce your cost, zhimin can produce sensors according to your current products. Our aim is to provide best solutions for your precious clients.
Features:
Capacity 50N-1KN
Low profile and compact size
Through-hole
Stainless steel construction
Optional features:
Customizable dimensions
The S beam load cell provides good restraint to possible movement of the automation and in many cases. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Features:
Capacity 1kg-100kg
Both tension and compression
Rational outputs
Stainless steel
Optional features:
Hermetically sealed available
SC132는 현재 출시된 마이크로 빔 전단 로드셀 중 가장 작은 제품입니다. 작은 크기에도 불구하고 2kg의 용량을 처리할 수 있다.
The SC132 is the smallest micro beam shear load cell available. Despite is small size, it can handle 2KG capacity which means that
SC616C는 저용량 소형 어플리케이션에 적합한 소형 로드셀입니다. 300g부터 5kg까지 다양한 용량으로 제공되며 양극산화 처리된 알루미늄으로 제작된 SC616C는 높은 정확도와 신뢰성을 제공합니다.
The SC616C is a miniature load cell that is ideal for low capacity, compact applications. Available in capacities from 300g to 5kg and built with anodized aluminum, the SC616C provides high accuracy and reliability.
The ZMWMC is constructed from stainless steel and protected from moisture with an epoxy bonded cover. ZMWMC is configured for both of compression and tension force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million load cycles.
Features:
Capacity 1kg-200kg
Both compression and tension
Compact size
Stainless steel
Optional features:
Hermetically sealed available
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications.
Advantages of LCT Single Point Load Cells/Miniature Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.These load cells are moment insensitive.
Model LAA-H1/H3 load cells are designed to this “single point/miniature”type and manufactured from high quality aluminum alloy of aviation standard. LAA-H1/H3 oad cells can be used to measure loads range from 150g to 750g with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
LAA-H1/H3 load cells are mainly used for pocket scales,kitchen scales,postage scales,portable scales,jewellery scales,small balances,other platform scales and coffee machine weighing systems.
SC932는 체중계에 적합한 하프 브리지 마이크로 로드셀입니다. SC932는 최대 50kg의 고하중을 지원합니다. 또한, 로드셀 본체에 받침대가 미리 설치되어 있어 설치가 간편합니다. ***SC928NB에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다.***
The SC932 is a half-bridge micro load cell ideal for body scales. The SC932 is high capacity with a maximum of only 50kg. It also has feet pre-installed to the load cell body to simplify installation.
***Mounting assembly/module may be necessary as the SC928NB has no mounting holes***
- Capacity: 1-100kg
- Sensitivity: 1.0-2.0mV/V
- Non-linearity 0.5% F.S.
- Repeatability 0.3% F.S.
- Material Stainless steel with nickel plated
- Bi-directional tension and compression
- Can be customized
