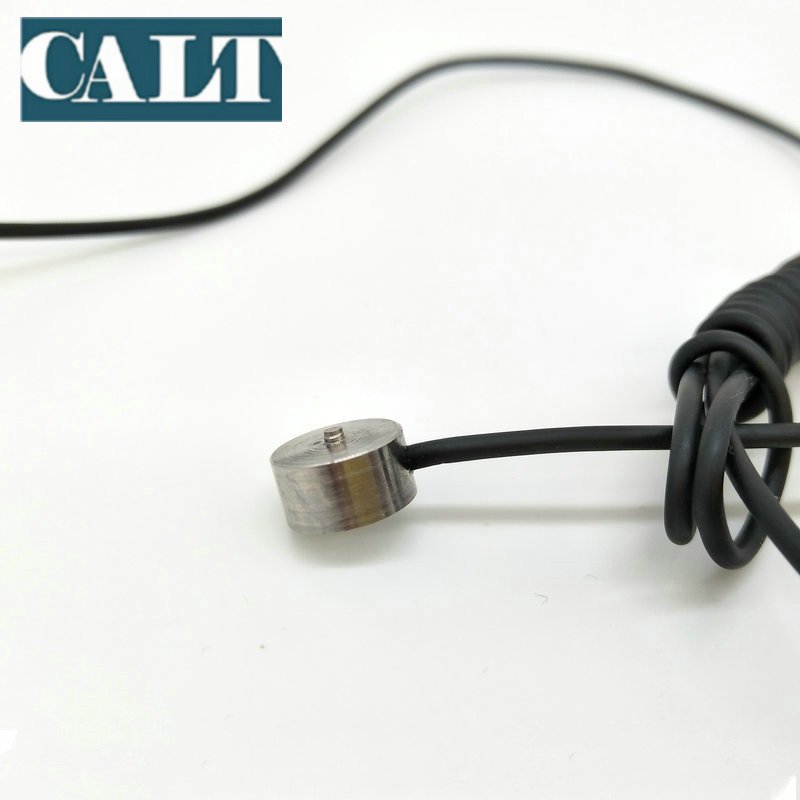

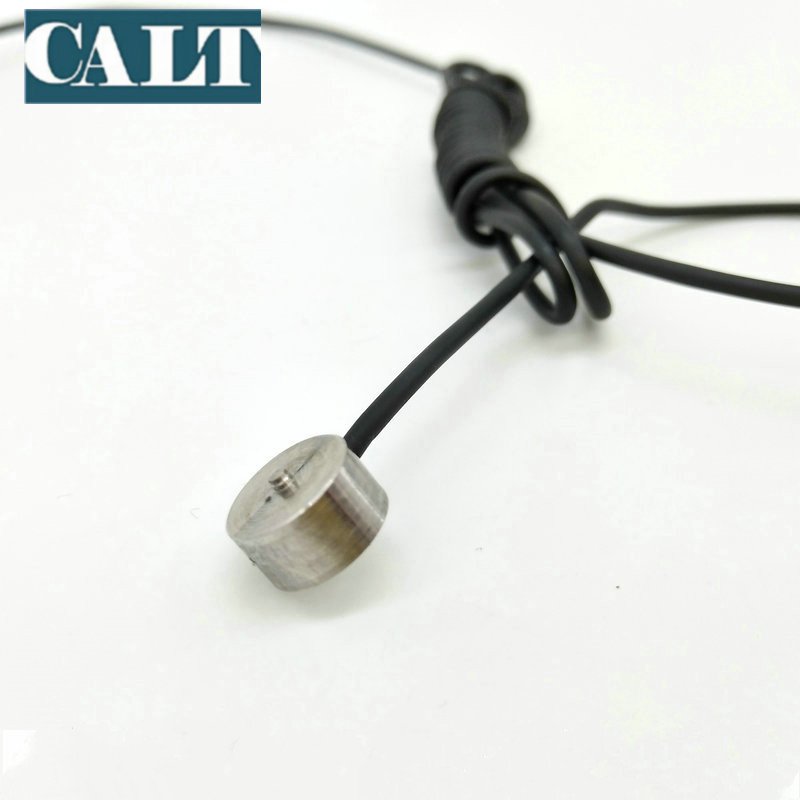

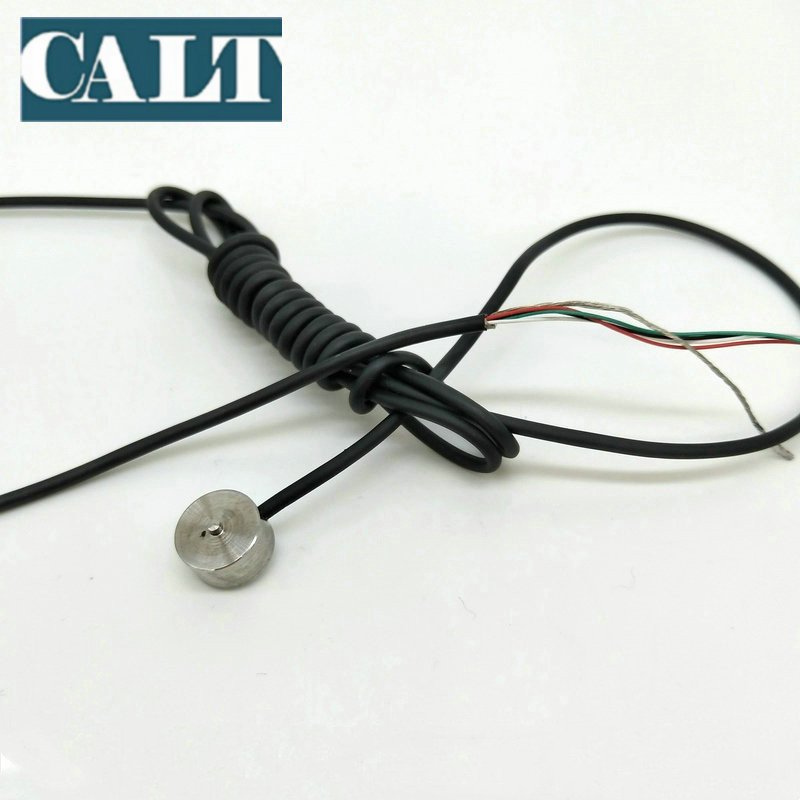

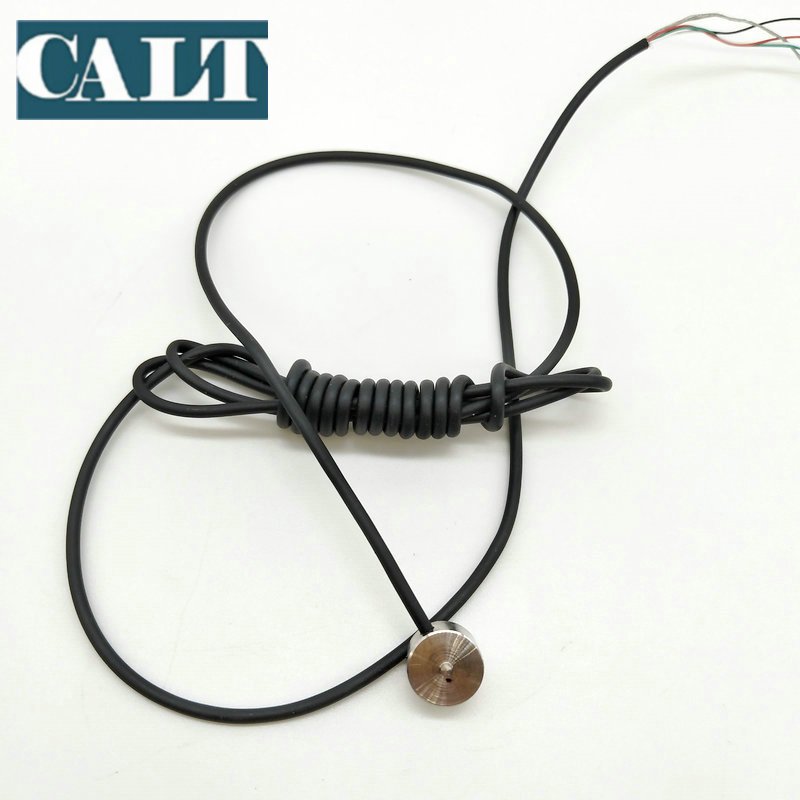

Mini Load Cells DYHW-110
Characteristic and Application fields
It has the advantages of bi-directional tension and compression, compact structure, high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel.
Universal materisl testing machine, hopper scale, hook scale, packaging scale, belt scale, plug-in force tester and othere tension and pressure testing instruments as well as automation equipment and testing field.

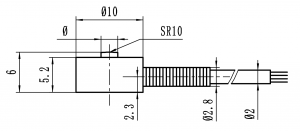

Dimension(mm)
| Capacity (kg) | 5-10 | 20-30 | 50-100 |
| Φ | 1.5 | 2 | 2.5 |
Technical parameter
| Parameter | Unit | Technical
Specifications |
Parameter | Unit | Technical
Specifications |
| Sensitivity | mV/V | 1.0±2.0 | Temperature coefficient of sensitivity | ≤%F·S
/10℃ |
±0.5 |
| Nonlinear | ≤%F·S | ±0.5 | Operating temperature range | ℃ | -20℃～+80℃ |
| Hysteresis | ≤%F·S | ±0.5 | Input resistance | Ω | 350/500Ω |
| Repeatability | ≤%F·S | ±0.3 | Output Resistance | Ω | 350/500Ω |
| Creep | ≤%F·S/30min | ±0.1 | Safe Overload | ≤%F·S | 150% F·S |
| Zero output | ≤%F·S | ±2 | Insulation resistance | MΩ | ≥5000MΩ(100VDC) |
| Zero temperature
coefficient |
≤%F·S/10℃ | ±0.5 | Excitation voltage | V | 5V-15V |
