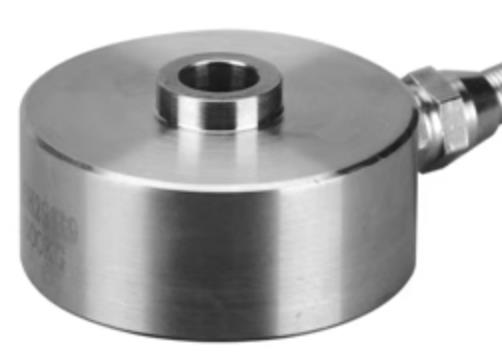

TAS60W50 Load cell with Through Hole
INTRODUCTION:
HT SENSOR / TAS60W50 / Load cell with Through Hole
Product description:
Capacity ：0~2000kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly, tank, material mechanics testing machine and other fields.
Product description:
Capacity ：10kg~50Ton
Alloy Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in electronic truck scales hopper scales, automotive testing equipment other electronic weighing or force measuring fields
Product description:
Capacity ： 10~100kg,200kg,2000kg
Material: alloy steel
Type: spoke type.
Miniature feature and low profit, customizable.
Defend grade: IP66.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Defend grade: IP66.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Product description:
Capacity ：0~100kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly, tank, material mechanics testing machine and other fields.
Product description:Capacity ：0~50kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly, tank, material mechanics testing machine and other fields
The ZMMC4 is donut type force sensor which is available in a wide range of standard capacities from 5kg through to 2000kg. The ZMMC4 is configured for compression force measurement acting on cylinders, bolts or shafts. A range of internal through-hole diameters is available. The outer and inner diameter can be customized based on client’s requirements.
Features:
Capacity 5kg-2000kg
Low profile and compact size
Through-hole
Stainless steel construction
Optional features:
Customizable dimensions
Product description:
Capacity ： 50kg~5Ton
Material: alloy steel
Type: force type
Defend grade: IP67.
Application: Suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Product description:
Capacity ：500~5000kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly, tank, material mechanics testing machine and other fields.
Product description:
Capacity ：500~5000kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly, tank, material mechanics testing machine and other fields.
Product description:
Capacity ：5~100kg
Material: stainless steel
Defend grade: IP66.
Application: It is widely used in 3C digital production and manufacturing inspection process force measurement, power-assisted equipment, robotic arms and other automation fields.
Product description:
Capacity ：0.5~200KN
Stainless steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly,tank, material mechanics testing machine
Model TH Donut Shaped Load Cell features a smooth thru-hole design for use in applications which require the load structure to pass through the cell. Such applications include bolt force measurement, post or leg mount, and rolling mill systems. Load ranges as low as 15,000 pounds and as great as 200,000 pounds can be measured within a maximum full scale non-linearity of ±0.25. This model is used in compression applications. For optimum performance, this load cell must be mounted between load surfaces which are flat and parallel. The Model TH Donut Shaped Load Cell is designed to provide the customer with an internal hole diameter which is large relative to the outside diameter. The Model TH is a small size, high capacity load cell.
High stability and reliability.
Applicable to: measurement and control system of testing machine and other force value.
