Product description:
Capacity ：0~50kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly, tank, material mechanics testing machine and other fields.
Model: MLC162
Category: Bridge load cell
Range: 2,3,5,10,15,20,30,40,50,100t
Dimensions: ± 58 * 128mm, ± 68 * 128mm
Material: alloy steel, stainless steel
Characteristic: safety limiter load cell, overload load cell, pin load cell, pin force sensor
The ZML2 is large force capacity pancake or spoke type compression load cell, capacity from 100t up to 1000t. The load cell is widely used in universal testing machine and construction force measure.
Nickel plated alloy steel
Model: MLC161
Category: Bridge load cell
Load range: 2t,3t,4t
Dimension: Φ55*123mm
Material: alloy steel, stainless steel
Characteristic: safety limiter load cell,overload load cell,pin load cell

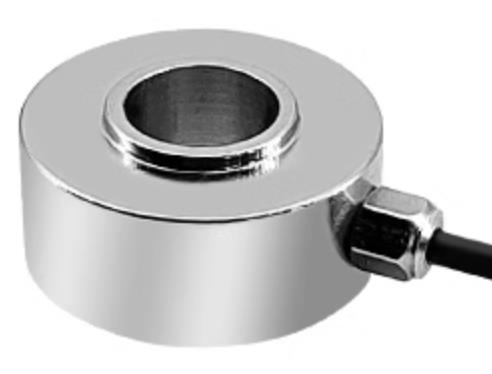

Model TH Donut Shaped Load Cell features a smooth thru-hole design for use in applications which require the load structure to pass through the cell. Such applications include bolt force measurement, post or leg mount, and rolling mill systems. Load ranges as low as 15,000 pounds and as great as 200,000 pounds can be measured within a maximum full scale non-linearity of ±0.25. This model is used in compression applications. For optimum performance, this load cell must be mounted between load surfaces which are flat and parallel. The Model TH Donut Shaped Load Cell is designed to provide the customer with an internal hole diameter which is large relative to the outside diameter. The Model TH is a small size, high capacity load cell.
Product description:
Capacity ：0~100kg
Stainless steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in automotive pressing, automatic assembly, 3C product testing, new energy product assembly, medical testing, machines Robot field, mold assembly and other industrial testing, motorizing equipment and testing field.
Product description:
Capacity ：0.5~200KN
Stainless steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly,tank, material mechanics testing machine
Model: MLC409
Category: Compression Load Cell
Range: 40t,50t,60t,100t,150t,200t,300t
Dimension: 197*160mm; 240*230/305*326mm; 415*358mm
Material: alloy steel, stainless steel
Characteristic: big capacity load cell,compression force load cell,tension force load cell,hydraulic equipment force load cell
The sensor elastomer is made of 17-4PH stainless steel, sealed with adhesive, and nickel-plated on the surface, providing excellent waterproof and corrosion-resistant performance with IP67 and IP68 protection ratings.
Model: MLC408
Category: Compression Load Cell
Range: 5t,10t,15t,20t
Dimension: 125*215mm
Material: alloy steel, stainless steel
Characteristic: compression force load cell, hydraulic equipment force load cell. tension force sensor
Product description:
Capacity ： 50kg~5Ton
Material: alloy steel
Type: force type
Defend grade: IP67.
Application: Suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Product description:
Capacity ：0~100kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly, tank, material mechanics testing machine and other fields.
