The ZML2 is large force capacity pancake or spoke type compression load cell, capacity from 100t up to 1000t. The load cell is widely used in universal testing machine and construction force measure.

Nickel plated alloy steel

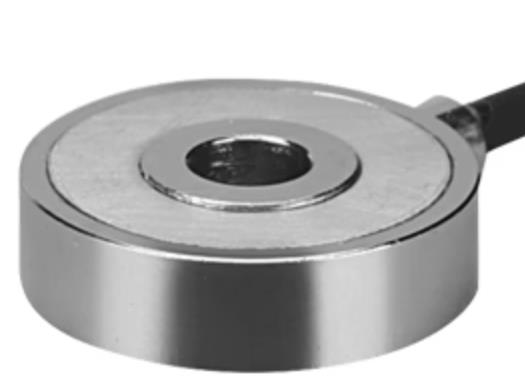

The ZMMC4 is donut type force sensor which is available in a wide range of standard capacities from 5kg through to 2000kg. The ZMMC4 is configured for compression force measurement acting on cylinders, bolts or shafts. A range of internal through-hole diameters is available. The outer and inner diameter can be customized based on client’s requirements.

Stainless steel construction

Compression force load cell, vehicle scale load cell, railroad scale load cell, hopper scale load cell.

Model: MLC401
Catalogue: Compression load cell
Rated load: 10, 25, 40, 60,100ton
Dimension: 152*184mm
Material: alloy steel, stainless steel
Apply to: compression force load cell, Vehicle scale load cell, railroad scale load cell, hopper scale load cell.

Product description:
Capacity ：10kg~50Ton
Alloy Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in electronic truck scales hopper scales, automotive testing equipment other electronic weighing or force measuring fields

The Model D Donut Shaped Load Cell features a smooth thru-hole design often ideal for applications which require the load structure to pass directly through the cell. Such applications include bolt force measurements, clamping forces, and monitoring overloads. Load ranges as low as 150 grams and as great as 30,000 pounds can be measured within a maximum full scale non-linearity and hysteresis of ±0.5 % F.S., respectively. These models are used in compression applications and are available in multiple hole and frame sizes. For optimum performance, these cells must be mounted between load surfaces which are flat and parallel. The Model D miniature load cell is designed to have a minimum thickness.

big capacity load cell, compression force load cell, hydraulic equipment force load cell

Model: MLC407
Category: Compression Load Cell
Load range:600ton
Dimension:256*225mm
Material: alloy steel
Cable: Φ6mm*12m
Characteristic: big capacity load cell, compression force load cell, hydraulic equipment force load cell

silo scale load cell,tank scale load cell,big capacity load cell,compression force load cell

Model: MLC410
Category: Compression load cell
Load range: 1t,2.2t,3.3t,4.7t,10t,15t,22t,33t,47t,68t,100t,150t, 220t, 330t
Dimension: 60*43mm/130*75mm/150*100mm
Material: alloy steel, stainless steel
Characteristic:silo scale load cell,tank scale load cell,big capacity load cell,compression force load cell

big capacity load cell, compression force sensor, Hydraulic equipment force sensor, column load cell

Model: MLC406
Category: Compression Load Cell
Load range: 200,300,500,1000ton
Dimension: 259*210mm
Material: alloy steel, stainless steel
Application: big capacity load cell, compression force sensor, Hydraulic equipment force sensor, column load cell

Low height, easy to install, strong anti-eccentric load capacity, good sealing. Suitable for braking force detection of vehicles.
