The Model D Donut Shaped Load Cell features a smooth thru-hole design often ideal for applications which require the load structure to pass directly through the cell. Such applications include bolt force measurements, clamping forces, and monitoring overloads. Load ranges as low as 150 grams and as great as 30,000 pounds can be measured within a maximum full scale non-linearity and hysteresis of ±0.5 % F.S., respectively. These models are used in compression applications and are available in multiple hole and frame sizes. For optimum performance, these cells must be mounted between load surfaces which are flat and parallel. The Model D miniature load cell is designed to have a minimum thickness.

MLC401E Hydraulic Press Forging Press Large Range Column Weighing Sensor 300t

Model: MLC401E
Category: Column weighing sensor
Measurement range: 20t, 25t, 30t, 40t, 50t, 60t, 70t, 100t, 150t, 200t, 300t, 400t
Size: 76 * 82.6mm; 125 * 142 millimeters; 223 * 250mm
Materials: alloy steel, stainless steel
Application: Automobile scale, electronic floor scale, hydraulic press, hydraulic press, dynamometer, large-scale weighing sensor

compression force load cell, hydraulic equipment force load cell. tension force sensor

Model: MLC408
Category: Compression Load Cell
Range: 5t,10t,15t,20t
Dimension: 125*215mm
Material: alloy steel, stainless steel
Characteristic: compression force load cell, hydraulic equipment force load cell. tension force sensor

big capacity load cell, compression force sensor, Hydraulic equipment force sensor, column load cell

Model: MLC406
Category: Compression Load Cell
Load range: 200,300,500,1000ton
Dimension: 259*210mm
Material: alloy steel, stainless steel
Application: big capacity load cell, compression force sensor, Hydraulic equipment force sensor, column load cell

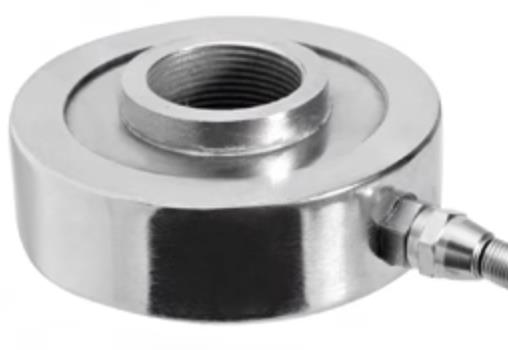

The ZMMC4 is donut type force sensor which is available in a wide range of standard capacities from 5kg through to 2000kg. The ZMMC4 is configured for compression force measurement acting on cylinders, bolts or shafts. A range of internal through-hole diameters is available. The outer and inner diameter can be customized based on client’s requirements.

Stainless steel construction

Model TH Donut Shaped Load Cell features a smooth thru-hole design for use in applications which require the load structure to pass through the cell. Such applications include bolt force measurement, post or leg mount, and rolling mill systems. Load ranges as low as 15,000 pounds and as great as 200,000 pounds can be measured within a maximum full scale non-linearity of ±0.25. This model is used in compression applications. For optimum performance, this load cell must be mounted between load surfaces which are flat and parallel. The Model TH Donut Shaped Load Cell is designed to provide the customer with an internal hole diameter which is large relative to the outside diameter. The Model TH is a small size, high capacity load cell.
