TS20 Static torque Sensor
Technical parameters
| Category | Parameter | Value / Unit |
|---|---|---|
| Capacity | Range (Nm) | 10, 20, 30, 50, 100, 200 |
| Accuracy Class | ( MAX ERROR ) | |
| Non-linearity | +/- 0.1 %FS | |
| Hysteresis | +/- 0.1 %FS | |
| Repeatability | +/- 0.02 %RO | |
| Temperature | ||
| Temp. Effect on Zero | +/- 0.02 %RO/°C | |
| Temp. Effect on Sensitivity | +/- 0.01 %/°C | |
| Compensated Temp. Range | -5 to 45 °C | |
| Operating Temp. Range | -15 to 55 °C | |
| Electrical | ||
| Rated Output (Sensitivity) | 1 +/- 0.1% mV/V | |
| Excitation Voltage | 2-12 VDC | |
| Output Resistance | 350 Ohm | |
| Electrical Connection | 7 pin Binder | |
| Mechanical | ||
| Safe Overload | 150 %RO | |
| Angular Deflection at Rated Torque | < 0.2° | |
| Cyclic Rated Load | +/- 70 Peak %RO | |
| Protection Rating | IP50 |

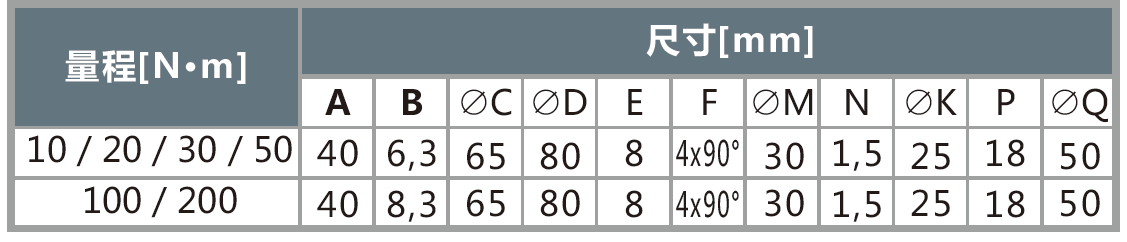

Dimensions
