NS-NJ8 Series Static Torque Transducers
Parameter

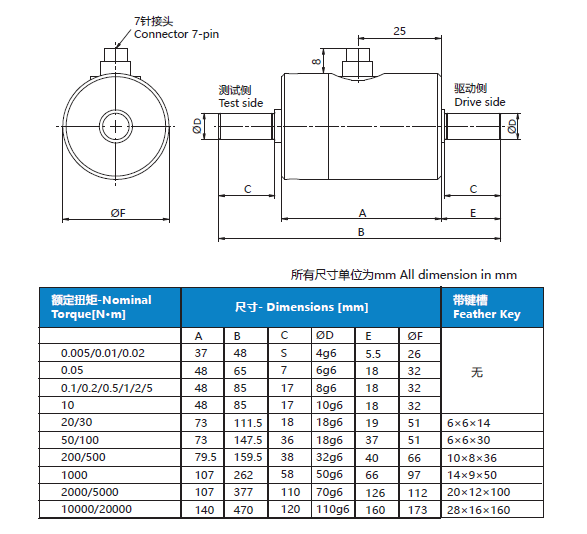

Dimensions
Wiring Definition

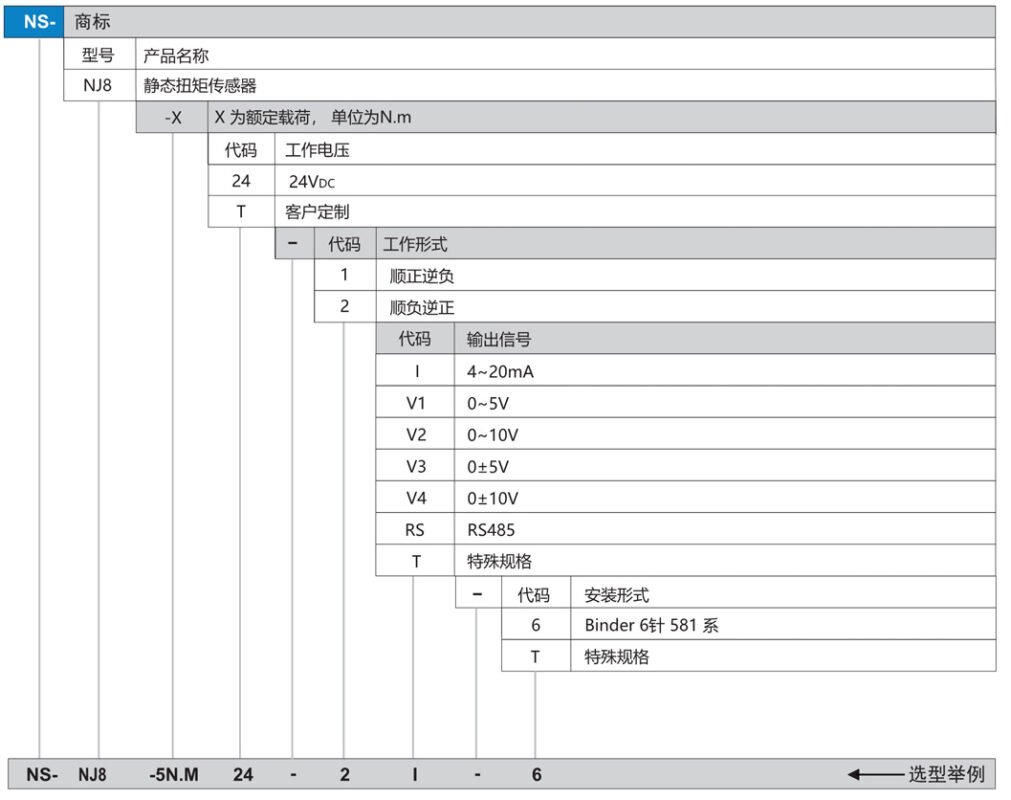

Selection table
Suitable for static and discontinuous rotation torque measurement;
Material: Aluminum alloy
Exterior: Compact structure
Product description:
Capacity ：0-5-200N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
Static Torque Sensor
D 37.6mm*H 50.8mm
Capacity: 1,2,3,5,6,10,20,30,50,100,150N.m
Category: Static Reaction Torque Sensor
Product description:
Capacity ：1~10000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
With the characteristics of double flange connection, the TJN-3 static torque measurement sensor is easy to install. Suitable for the measurement and control of static and discontinuous rotation torque.
Product description:
Capacity ：0-10N.m
Material: aluminum alloy
Type: torque type
Defend grade: IP65.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
- Aluminum alloy flange installation
- Range 0~20Nm, accuracy ±0.1%F.S
- Output: 1mV/V, 0~±5/10V, 4~20mA optional
It is suitable for static and discontinuous rotation torque measurement.
Material: Aluminum alloy
Exterior: Compact structure Easy to install
| Model: | NF602B |
| Category： | Torque Sensor |
| Capacity: | 0.1,0.2,0.5,1,2,3,5,10N.m |
| Rated Output: | 1.5±10%mV/V |
| Material: | aluminum alloy |
| Protection Class: | IP65 |
| Weight: | 0.2KG |
It is suitable for precision control of robot arms, grinding and polishing of curved surfaces, precise carving of machining centers, and precision testing of medical equipment.
Material: Aluminum alloy
Features: Low height
Product description:Features:
Capacity ： 0-5~1000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
