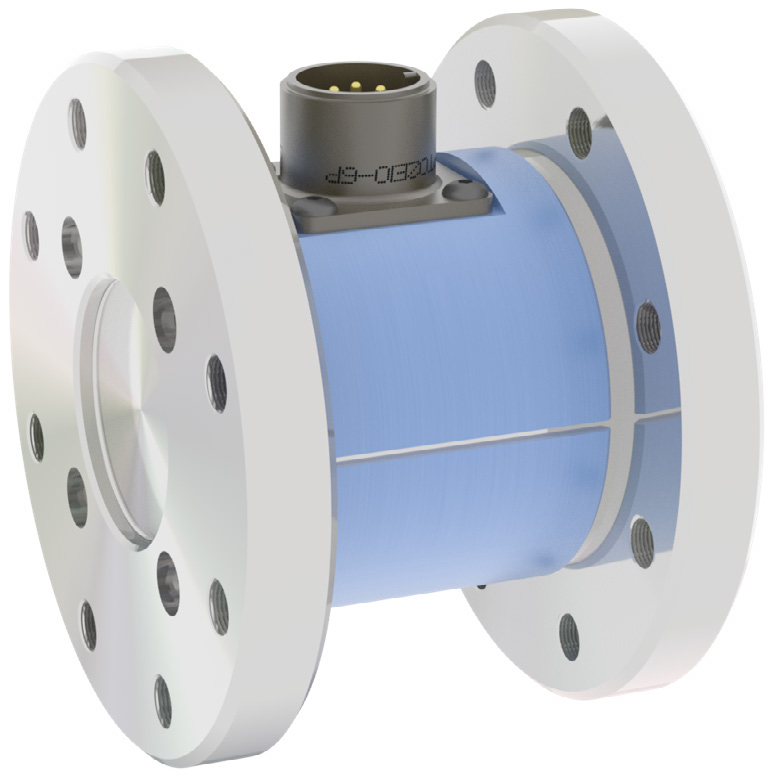

AT101 Static torque Sensor
Technical parameters
| Parameter | Value |
|---|---|
| Accuracy Grade (MAX ERROR) | |
| Non-linearity (Force) — %FS | +/- 0.2 |
| Hysteresis (Force) — %FS | +/- 0.2 |
| Non-linearity (Torque) — %FS | +/- 0.3 |
| Hysteresis (Torque) — %FS | +/- 0.3 |
| Hysteresis — %FS | +/- 0.2 |
| Repeatability — %RO | +/- 0.1 |
| Crosstalk — % | < 1% |
| Temperature | |
| Zero Drift — %RO/°C — MAX | +/- 0.02 |
| Sensitivity Drift — %RO/°C — MAX | +/- 0.02 |
| Compensated Temperature Range — °C | -5 to +45 |
| Operating Temperature Range — °C | -15 to +55 |
| Electrical Characteristics | |
| Rated Output (Sensitivity) — mV/V | 1 |
| Excitation Voltage — VDC MAX | 2-12 |
| Output Resistance — Torque — Ohm | 350 |
| Output Resistance — Force — Ohm | 700 |
| Connection Type | 12-pin Binder |
| Mechanical Characteristics | |
| Safe Overload — %CAP | 150 |
| Protection Class (IP Rating) | 50 |
Dimensions
