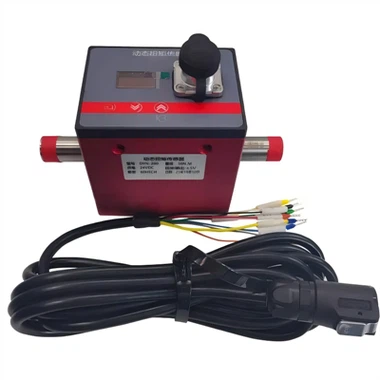

1、The small rotating torque sensor is used to measure the rotating torque in clockwise and counterclockwise directions.
2、The sensor is installed between the motor and the load through the coupling, the shell remains static during the measurement, and the shaft rotates with the motor shaft.
3、High precision,stable and reliable performance.
4、High speed and long time operation.
5、 Output positive and reverse torque signal.

• Range: 0-5N.m
• Speed range: ≤4000rpm
• Nonlinear Accuracy 0.1% F.S.
• Repeatability 0.5% F.S.
• Material: Stainless Steel Nickel Plated
• Force measurement direction: rotational force
• Product name: Dynamic torque sensor DYN-204 series
• Can be customized on request

1、Static torque sensor is a kind of sensor used to measure the torque of a stationary or slowly rotating object.
2、The flange mounted sensor is connected with a load transfer device, which can output voltage or current signals.
3、Static torque sensors can be used in various industrial fields, such as electric screwdrivers, torque wrenches, wind turbines and so on.
4、Small size, light weight and convenient installation and use.
5、 High detection accuracy, good stability and strong anti-interference ability.

• Range: 0-500N.m
• Speed range: 0-4000rpm
• Nonlinear Accuracy 0.5% F.S.
• Repeatability 0.2% F.S.
• Material: Alloy Steel Nickel Plated
• Force measurement direction: rotational force
• Product Name: Dynamic Torque Sensor DYN-201D Series
• Can be customized on request

1, Applications: DTS series dynamic torque sensor is an accurate measuring device for torque and mechanical power consumption. Mainly applied in  1.1 Electromotor, Engine motor, internal-combustion engine and other rotating equipment.  1.2 Fan, water pump, torque wrench  1.3 Train, auto mobile, tractor, airplane, ship, mining machine  1.4 Water recycling system  1.5 Viscometer  1.6 Process industry

1、The small rotating torque sensor is used to measure the rotating torque in clockwise and counterclockwise directions.
2、The sensor is installed between the motor and the load through the coupling, the shell remains static during the measurement, and the shaft rotates with the motor shaft.
3、High precision,stable and reliable performance.
4、High speed and long time operation.
5、 Output positive and reverse torque signal.

1. It can measure both static torque and rotational torque
2. The torque accuracy can reach ± 0.5% F.S
3. The torque range and sleeve price can be customized according to needs
4. The sleeve is equipped with a display screen that can display the tightening torque in real time
5. It has real-time torque and peak torque selection switching display
6. Equipped with wireless torque data real-time transmission function, wireless data transmission distance<10 meters
7. The matching computer testing software can display real-time torque and automatically save information such as the number of bolts tightened, torque curve, etc. as an Excel format file for easy traceability and query
8. After charging, the working time is about 10 hours
9. Can be applied to hydraulic torque wrenches, electric torque wrenches, and pneumatic torque wrenches to achieve torque data communication transmission and automatic control

• Range: 0-5N.m
• Speed range: ≤4000rpm
• Nonlinear Accuracy 0.1% F.S.
• Repeatability Accuracy 0.03% F.S.
• Material: Stainless Steel Nickel Plated
• Force measurement direction: rotational force
• Product name: Dynamic torque sensor DYN-205 series
• Can be customized on request

• Capacity: ±10000N.m
• Non-linearity 0.5% F.S.
• Repeatability 0.2% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

ZMDN is a high-precision rotarting torque sensor. The max rotating speed that the sensor can accept is 3000rpm. The output signal of ZMDN is from 1.0-1.5mv/v. Analog transmitter 4-20mA, 0-5V, 0-10V is optional.

Stainless steel body
