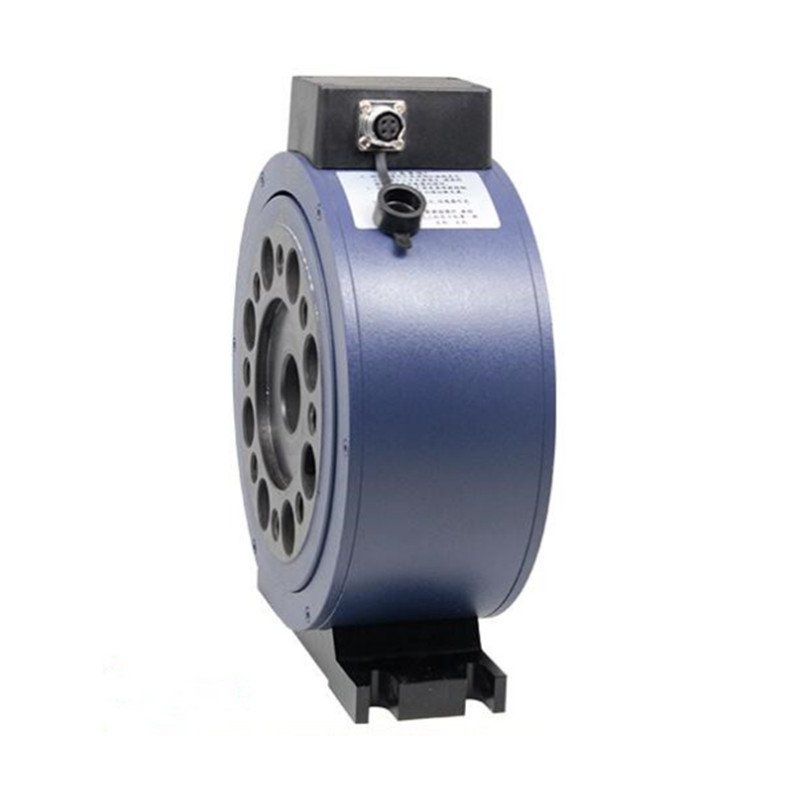

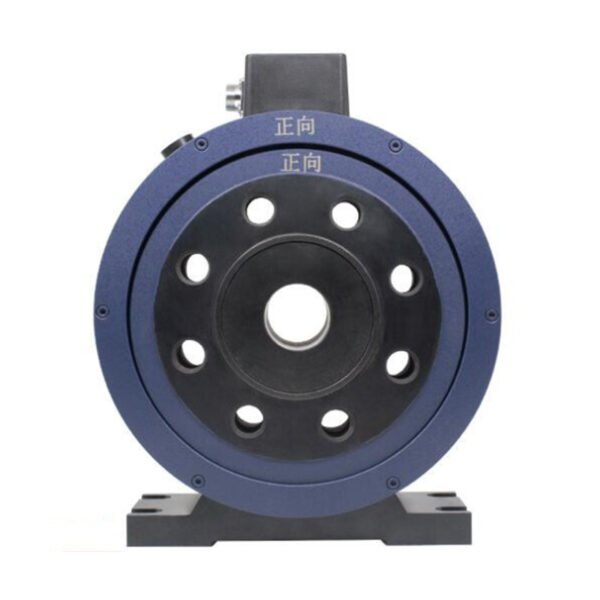

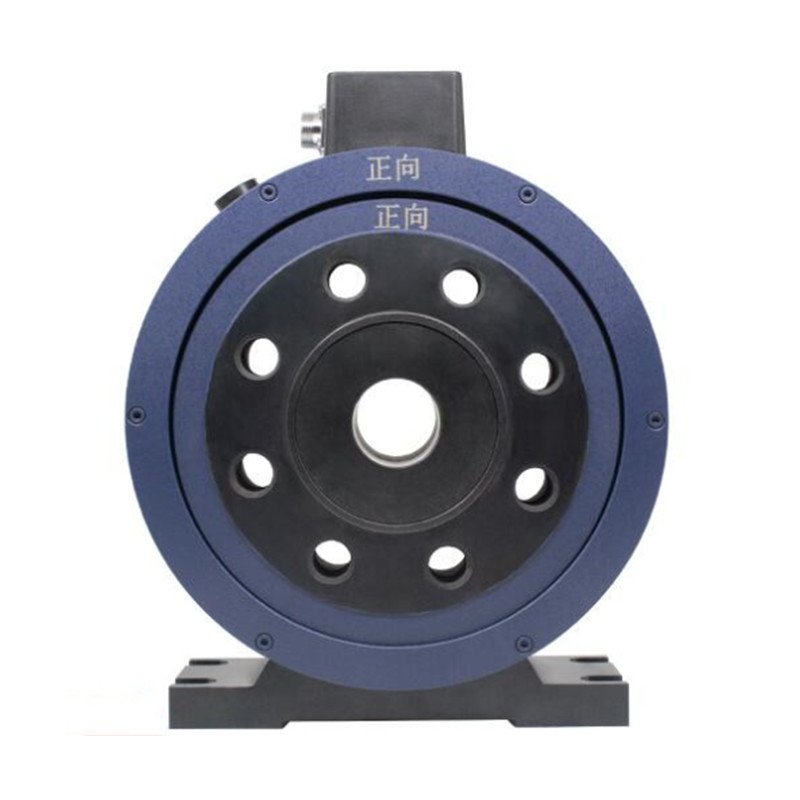

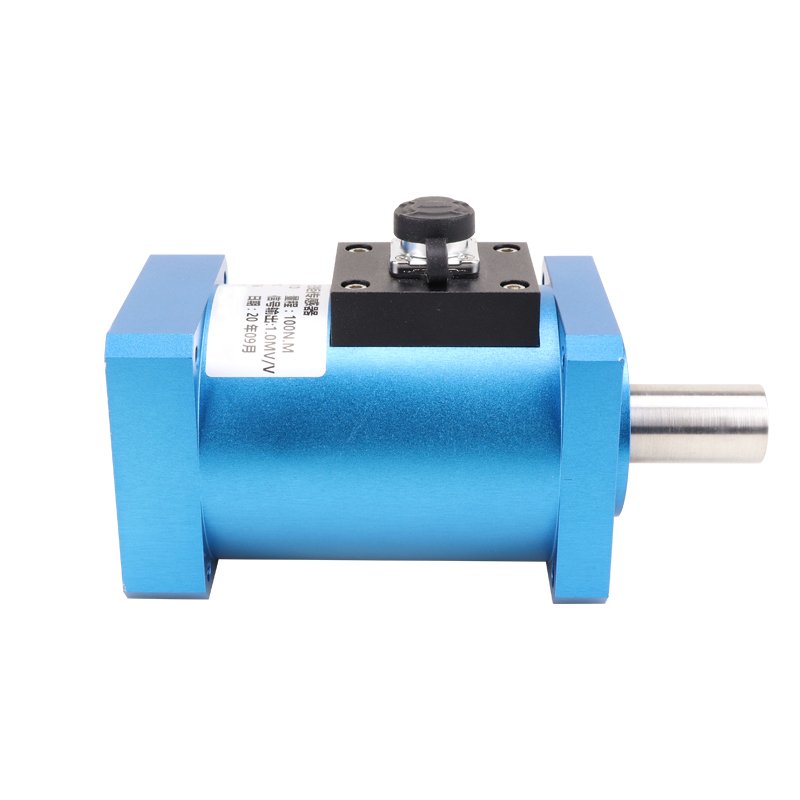

Rotary torque sensor DYN-502 series
Characteristic and Application fields
Strong anti-interference, high precision, good stability, small size, light weight, easy installation, non-contact transmission function of energy and signal, independent of rotation speed and steering when transmitting signal, can continuously transmit positive and negative torque signal without repeated zero adjustment, without wearing parts such as collector ring, and can run at high speed for a long time. It can be used for long-time, high-speed operation and transmit static/rotating/static/dynamic torque signal

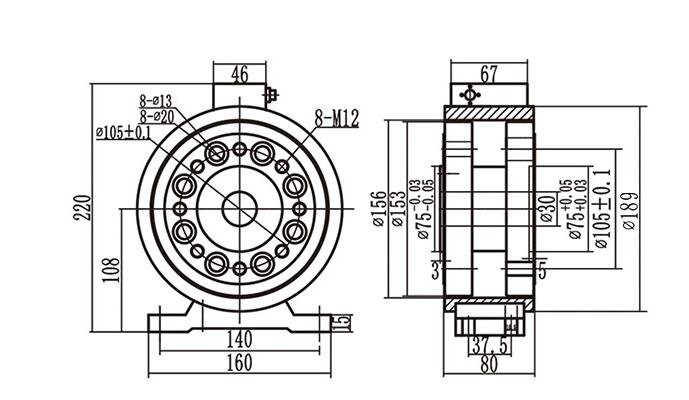

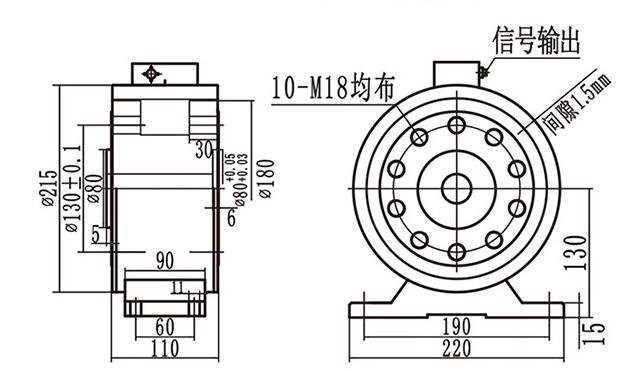

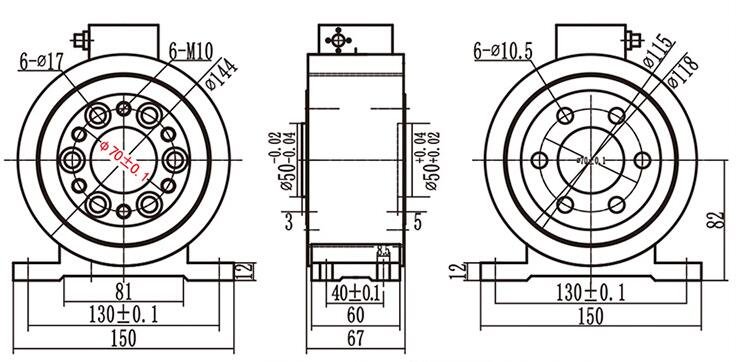

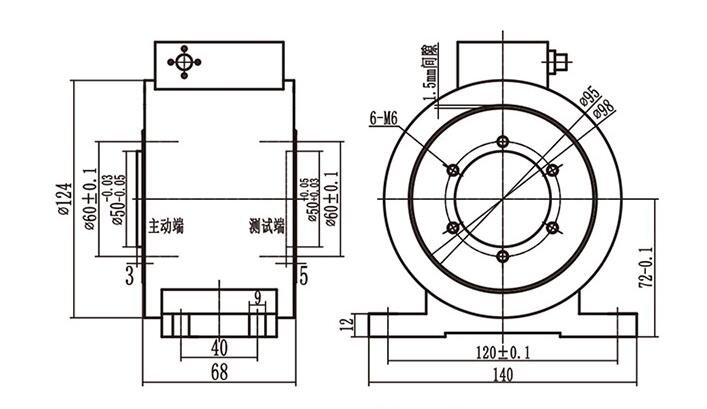

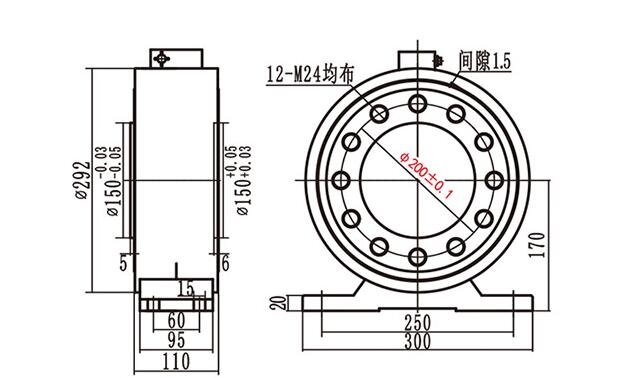

Dimension(mm)
| Capacity(N.m) | 5-50 |
| Capacity(N.m) | 50-500 |
| Capacity(N.m) | 1000-2000 |
| Capacity(N.m) | 5000-10000 |
| Capacity(N.m) | 30000-40000 |

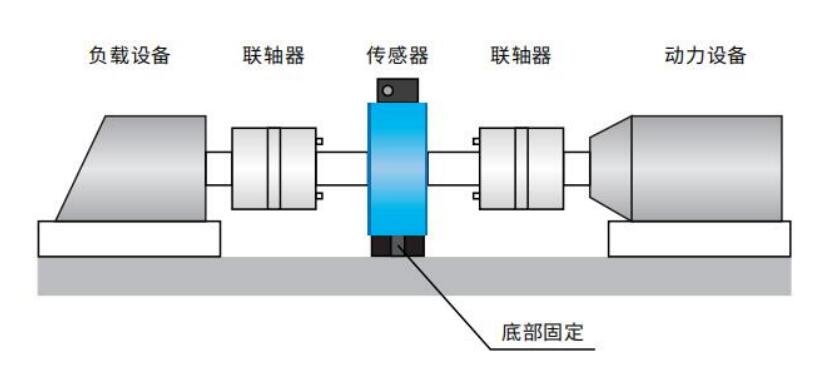

Installation diagram

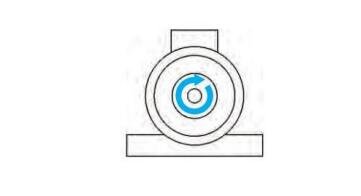

Force diagram
Technical parameter
| Capacity | 0-50000N.m | Material | Alloy Steel |
| Speed Capacity | rpm | Stability per year | 0.3%/year |
| Speed Signal | pulse/turn、mA、V | Impedance | 750Ω |
| Power Supply | 5-15V | Insulation | ≥5000MΩ/100VDC |
| Zero Balance | 0.2% F.S. | Working Voltage | 5-15V |
| Non-linearity | 0.05% F.S. | Operating Temp Range | -20-80℃ |
| Hysteresis | 0.05% F.S. | Relative Humidity | 0-90%RH |
| Repeatability | 0.05% F.S. | Safe Overload | 120% |
| Creep (30 Min) | 0.05% F.S. | Maximum Overload | 150% |
| Temp Effect on output | 0.05% F.S./10℃ | Cable Specifications | Φ5*3m |
| Temp Effect on Zero | 0.05% F.S. /10℃ | Cable ultimate pull | 10kg |
| Response frequency | 10kHz | TEDS |
