Features
- Available capacity: 10T, 20T, 30T, 40T, 60T, 70T, 100T, 150T, 200T, 300T
- Alloy steel or stainless steel construction
- Metric mounting holes
Sizes and mounting holes vary depending on the capacity, see datasheet for more details.
Applications
- Industrial machinery
- Tank or Silo scales
- Hopper scales

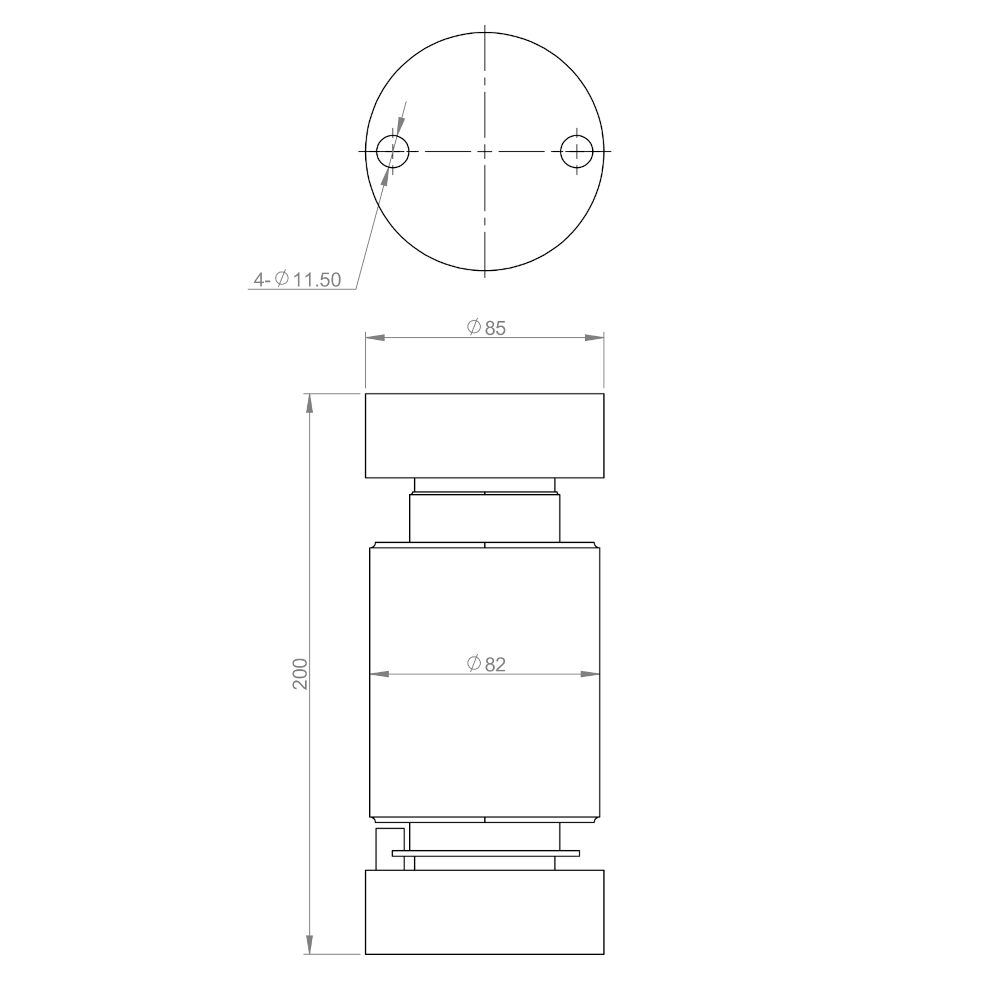

Dimensions
Specifications
| Capacity | 20T, 30T, 40T |
| Rated output | 2.0±0.004mV/V |
| Accuracy class | 0.05 %F·S
0.03%F·S (Optional) |
| Combined error | ≤± 0.020 %F·S |
| Creep | 0.016 %F·S/30min |
| Temp. effect on sensitivity | 0.0011 %F·S/℃ |
| Temp. effect on zero | 0.018 %F·S/℃ |
| Zero balance | ±1.0 %F·S |
| Input resistance | 725±5 ohm |
| Output resistance | 702±4 ohm |
| Insulation resistance | 5000 MΩ(50V) |
| Excitation voltage | 5~15V |
| Compensated temp. range | -10~+40℃ |
| Operating temp. range | -40~+80 ℃ |
| Safe overload | 150 %F·S |
| Ultimate overload | 200 %F·S |
| Load cell material | Alloy steel
Stainless steel |
| Connecting cable | Φ5.7x12m
Φ5.7x16m |
