Canister load cell column type force transducer NF403
Features

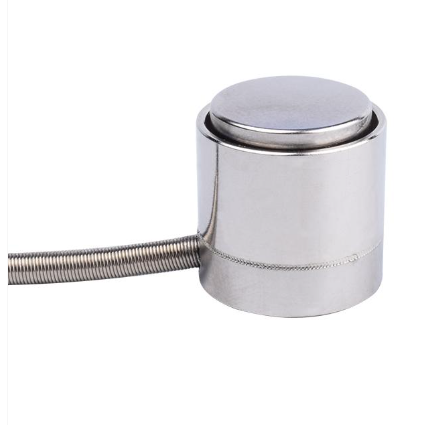

Canister load cell column type force transducer NF403 is based on foil strain gauge technology with mV signal output. Although the cylindrical force sensor is small in size, it has a large range and has six measuring ranges, respectively 0-10KN,0-20KN,0-50KN,0-75KN,0-100KN,0-150KN. The force sensor can be be used in a variety of applications.
- Small size, large range
- Small amount of deformation
- High precision
Applications
- Automation manufacturing
- New energy product assembly
- Industrial measurement

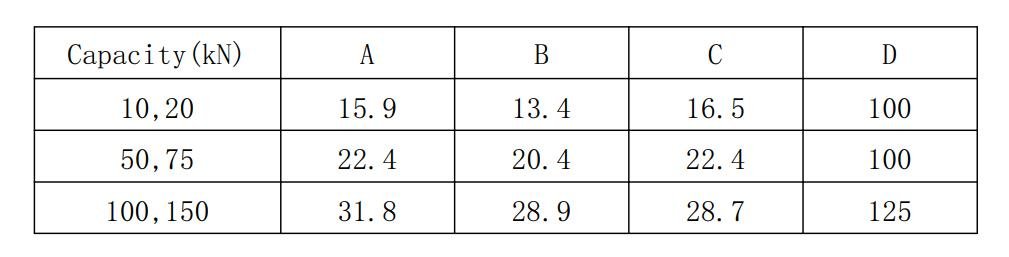

Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 10,20,50,75,100,150kN |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.20%F.S. |
| Repeatability | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 380±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | –10~60℃ |
| Operation temp range | –20~80℃ |
| Safe overload | 200%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ2 /Φ3×3000mm |
