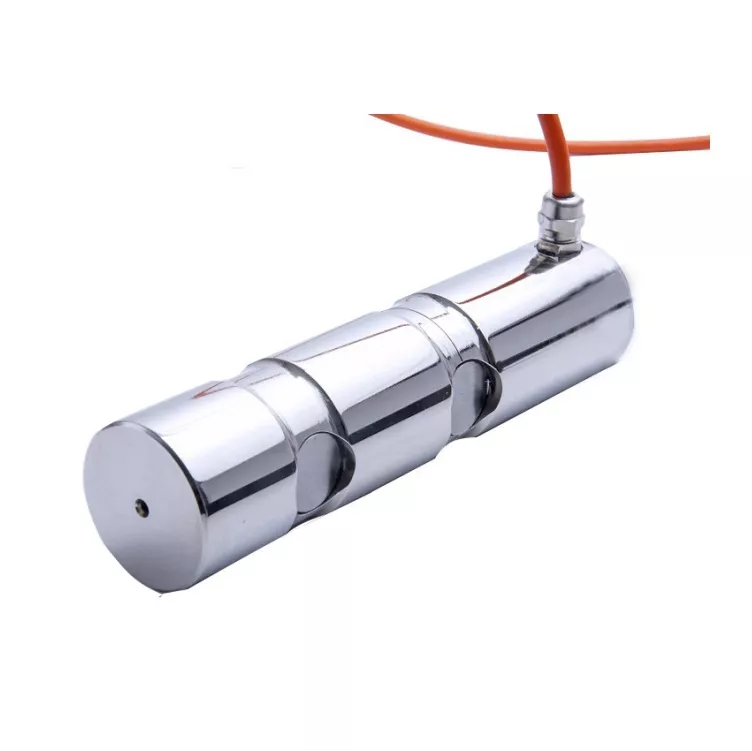

LC703 Standard And Customized Load Measuring Pins Load Cell Pin

Product Description

LC703

Dimensions：Unit:mm





LC703- (2)





Capacity C H1 H2 L L1 L2 L3 L4 L5
Ton mm
2~5 35.0 11.5 16.0 105.0 20.0 12.0 12.0 35.0 6.30
10 50.0 20.0 22.5 152.0 30.0 18.0 18.0 48.0 10.5
20 65.0 22.5 28.5 190.0 32.0 20.0 25.0 65.0 10.5
40 85.0 22.5 28.5 256.0 36.0 35.0 28.0 89.0 12.5
70 100.0 34.0 35.0 328.00 40.0 50.0 32.0 120.0 15.0
100 120.00 44.00 45.0 328.0 40.0 50.0 32.0 120.0 15.0
lb/inches (conversion of above dimensions)
Capacity C H1 H2 L L1 L2 L3 L4 L5
Lb Inches
4,409.2~11,023.1 1.38 0.45 0.63 4.13 0.79 0.47 0.47 1.38 0.25
22,046.2 1.97 0.79 0.89 5.98 1.18 0.71 0.71 1.89 0.41
44,092.5 2.56 0.89 1.12 7.48 1.26 0.79 0.98 2.56 0.41
88,184.9 3.35 0.89 1.12 10.08 1.42 1.38 1.10 3.50 0.49
154,323.6 3.94 1.34 1.38 12.91 1.57 1.97 1.26 4.72 0.59
220,462.3 4.72 1.73 1.77 12.91 1.57 1.97 1.26 4.72 0.59



Technical Parameter:

Rated Load: 2/5/10/20/40/70t Operating Temp.Range: -30~+70℃
Sensitivity: (1.0±0.1%) m V/V Maximum Safe Over Load: 150%F.S
Combined Error: ±0.5% F.S Ultimate Over Load: 400%F.S
Creep Error(30min): ±0.05% F.S Recommend Excitation Vol.: 10~12V DC
Zero Balance: ±1% F.S Maximum Excitation Vol.: 15V DC
Temp. Effect On Zero: ±0.05% F.S/10℃ Sealing Class: IP67
Temp. Effect On Span: ±0.05% F.S/10℃ Element Material: Alloy / Stainless Steel
Input Resistance: 400Ω±20Ω Cable: Length=L:5m~16m
Output Resistance: 350Ω±3Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ Mode Of Connection: Red(Input+),Green(Output+),

Black(Input-),White(Output-)

Note:load cells are available with optional 0~5Vdc to 0~10Vdc or 4 mA to 20 mA output.



Capacity Shipping Weight (Approx.) Application Examples
(Ton) (Kg) LC703
2t 0.8
5t 0.8
10t 2.1
20t 4.6
40t 11.2
70t 20.0
100t 30.00



Product name LC703 Standard And Customized Load Measuring Pins Load Cell Pin
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
