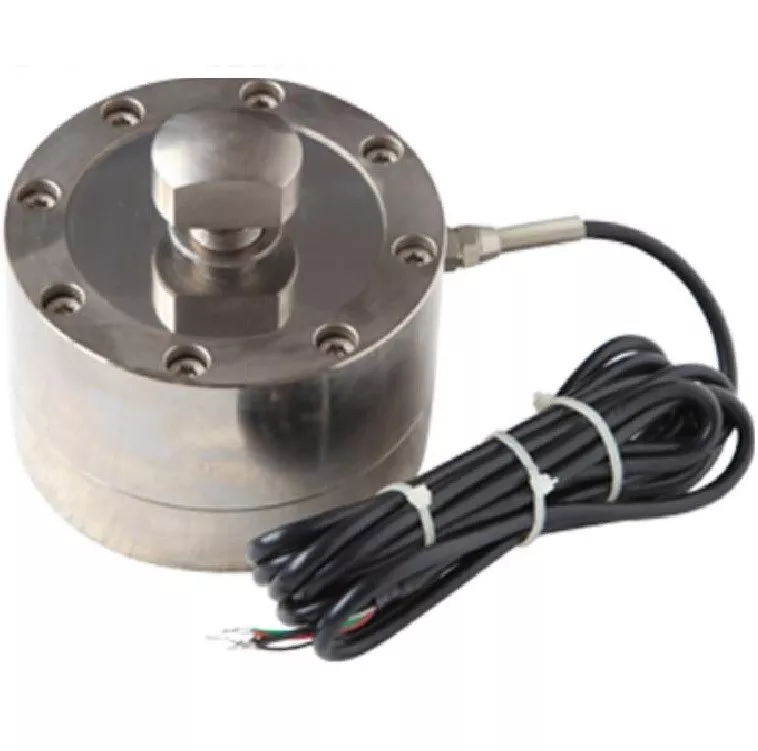

LC518 Low Profile Load Cell Compression Sensor Round Spoke Type Load Cell
Dimensions: Unit: mm
Technical Parameter:
High precision, with good temperature and time stability, low height, good rigidity, and strong resistance to eccentric loads.
Widely used in belt scales, hopper scales, storage scales, material tanks, material mechanics testing machines, labor safety testing equipment, etc
KWT1D100H is a kind of ring symmetric force sensor, which adopts a hollow ring double-spoke structure. It is based on strain principle with an excellent and sensititive internal strain area to distritube the strain guege. It can provide high-precision measurement results and better protect the strain gauge. Also realizing bending moment compensation and lateral force compensation for sensors through special structural design and circuit design. It will improve the production efficiency with easy and fast installation.
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robotics, mold assembly;And other industrial test, measurement and control systems.
Material: stainless steel
Size: Spoke type
The ZMLB is spoke type load cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP67. The shear beam structure gives load cell high performance of linearity. Zhimin offers ODM&OEM service.
Features:
Capacity 200kg-60t
High accuracy
Low profile
Nickel plated alloy steel IP67
Optional features:
Hermetically sealed available
It can be applied to testing machines, truck scales, hopper scales, various industrial weighing systems, etc.
Material: stainless steel, alloy steel
Size: Large range Other ranges can be customized
High stability and reliability.
Applicable to: measurement and control system of testing machine and other force value.
The sensor can meet the test requirements of a wide range of sensors, with a range of 100kN~200kN.
Widely used in medical testing, robotics, mold assembly and other industrial test, measurement and control systems;
It is also suitable for various industrial weighing systems such as testing machines, truck scales, hopper scales and so on.
Material: stainless steel, alloy steel
Size: Flanged, Range can be customized
Widely used in testing machines, truck scales, hopper scales, various industrial weighing systems.
Material: stainless steel, alloy steel
Size: Spoke type, Other ranges can be customized
KWT1D63 sensor is a tensile and compressive force transducers with good performance and great overload capacity, it has high-precision embedded integrated circuit, when the load on the force sensor can be collected and solved in real time.
KWT1D65 series is a kind of high-accuracy and multi-functions spoke type sensor. It has a unique integral multi-beam shear design that can withstand high external load, which makes the load cell with good stiffness and excellent dynamic response ability.
