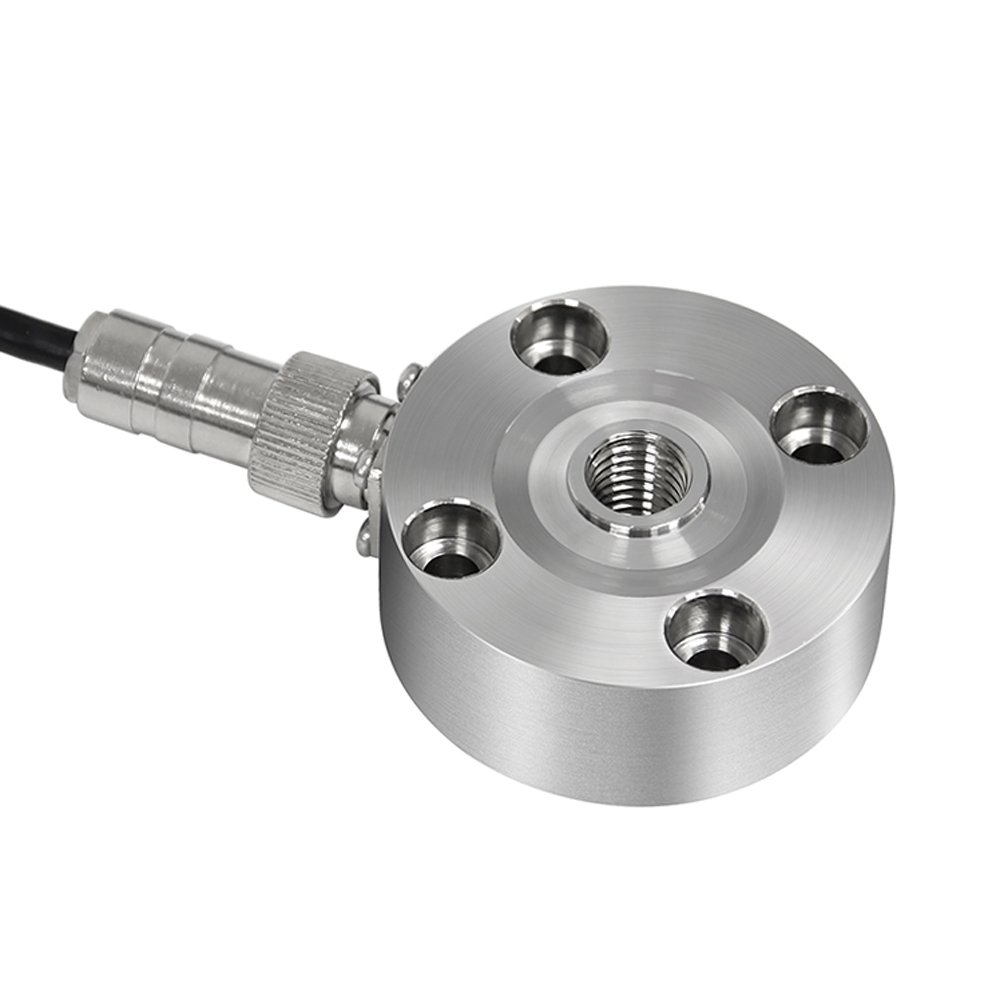

TAS604 Thread hole spoke type load cell
INTRODUCTION:
HT SENSOR / TAS604 / Thread hole spoke type load cell
Product description:
Capacity ：30~1000kg
Material: stainless steel
Defend grade: IP66.
Application: It is widely used for electronic truck scales, hopper scales, automotive testing equipment other electronic weighing or force measuring fields and other automation fields.
Product description:Features:
Capacity ：0.5~50Ton
42CrMoA alloy steel
Compact structure
Nickel plating on surface
Suitable for material testing machine, packaging scale, belt scale, hopper scale and other force testing instrument as well as automation equipment and testing filed.
- NS-TH3 series spoke type load cell structure;
- Simple, robust and resistant to lateral forces and eccentric loads
- Low center of gravity and easy installation;
- It is widely used in automatic control systems as automatic control components such as weighing and force measurement.
Product description:vailable in the capacities from 1~45Ton
High stability and reliability.
Applicable to: measurement and control system of testing machine and other force value.
- NS-TH1 series load cell is composed of combined S-beam structure and metal foil strain gauge, with overload protection device;
- It has the advantages of high measurement accuracy, good temperature characteristics and stable operation;
- It is widely used in dynamic and static measurement of various structures and primary instruments of various electronic scales.
KWT1D100H is a kind of ring symmetric force sensor, which adopts a hollow ring double-spoke structure. It is based on strain principle with an excellent and sensititive internal strain area to distritube the strain guege. It can provide high-precision measurement results and better protect the strain gauge. Also realizing bending moment compensation and lateral force compensation for sensors through special structural design and circuit design. It will improve the production efficiency with easy and fast installation.
1. Made of alloy steel or stainless steel
2. Suitable for belt weigher, hopper scale and other weighing devices
3. Good steel performance and high accuracy
Widely used in medical testing, robotics, mold assembly and other industrial test, measurement and control systems;
It is also suitable for various industrial weighing systems such as testing machines, truck scales, hopper scales and so on.
Material: stainless steel, alloy steel
Size: Flanged, Range can be customized
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robotics, mold assembly;And other industrial test, measurement and control systems.
Material: stainless steel
Size: Spoke type
Product description:
Capacity ：10kg~50Ton
Alloy Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in electronic truck scales hopper scales, automotive testing equipment other electronic weighing or force measuring fields
