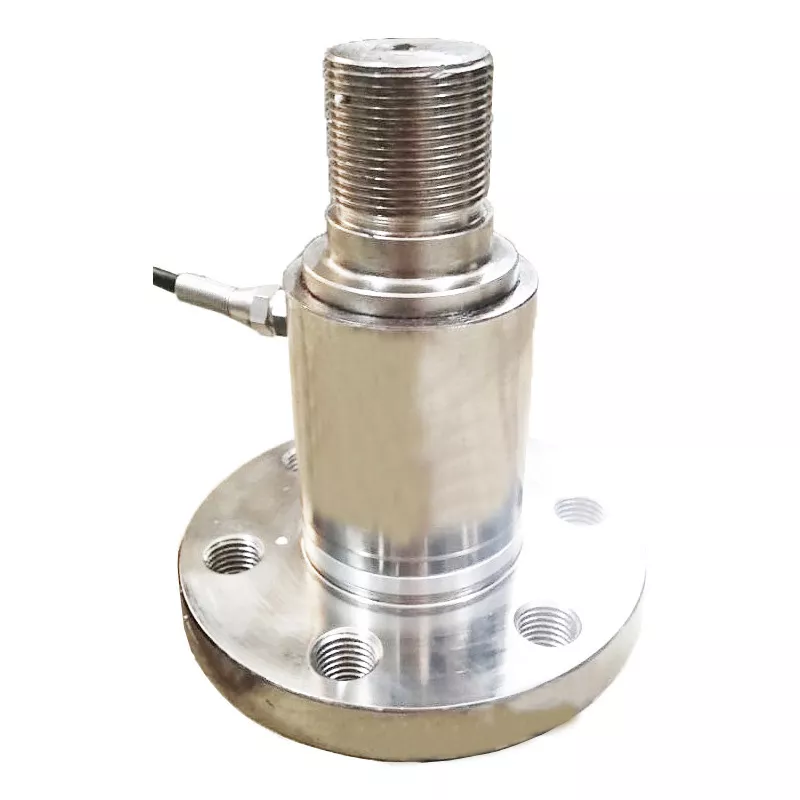

LC4500 3 Ton 5 Ton Load Cell Forklift Scale Load Cell
Apply to: Forklift weighing and other weighing scale.

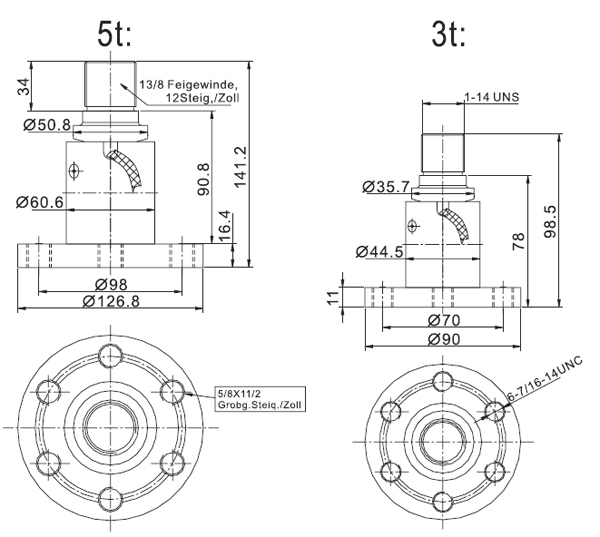

Dimension:
Technical Parameter:
| Model: | NF402B |
| Capacity: | 20,50,100,200,300,500N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Model: | NF403 |
| Category： | Column Load Cells |
| Capacity: | 10,20,50,75,100,150kN |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Model: | NF411 |
| Category： | Column Load Cells |
| Capacity: | 5,10,20,50,100kN |
| Rated Output: | 1.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP66 |
| Model: | NF407 |
| Category： | Column Load Cells |
| Capacity: | 0.5,1,2,3,5,10,20,50,100kN |
| Rated Output: | 1.5±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | 0.8/2kg |
