Miniature reaction torque transducers NF602
Features

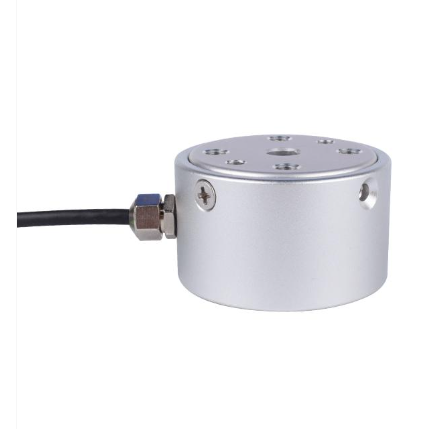

Miniature reaction torque transducers NF602 uses the metal foil strain gauge technology. The static torque sensor converts an input mechanical torque into an electrical output signal. The miniature torsions sensor can be used to measure torque in both clockwise and counterclockwise direction.
- Compact structure
- Easy to install
- Protection grade: IP65
Applications
- Automatic assembly
- Motor torque measurement
- Twist measurement

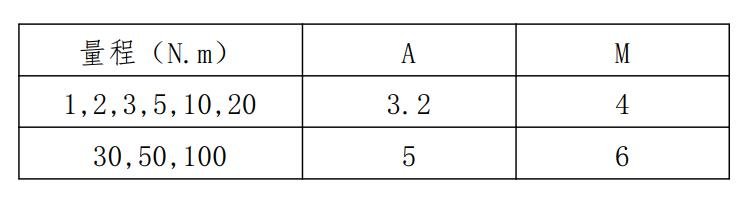

Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 1,2,3,5,10, 20,30,50,100N.m |
| Rated output | 1.5±10%mV/V |
| Zero balance | ±0.02mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.3%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 350±5Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | φ3×3000mm |
| Material | aluminum alloy |
