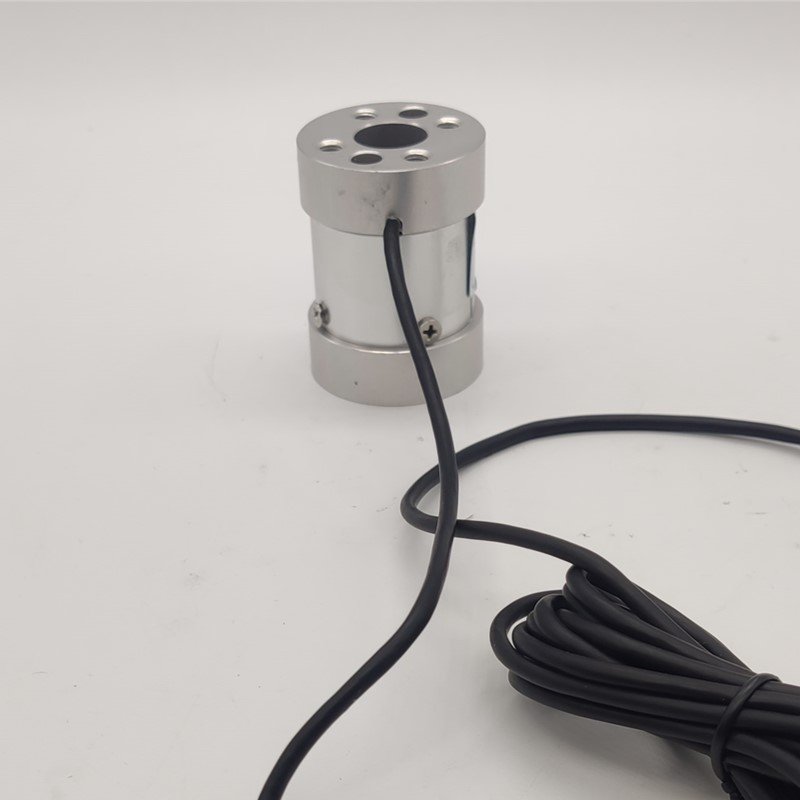

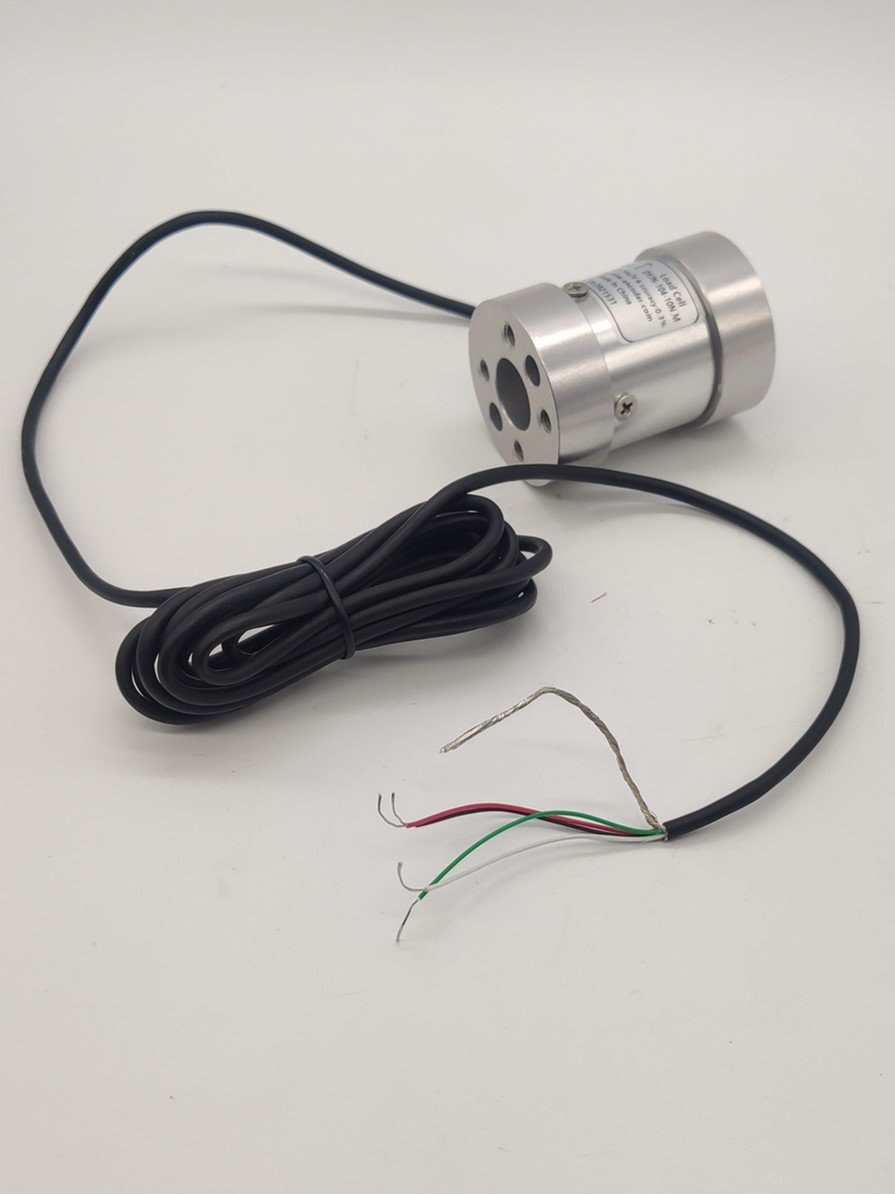

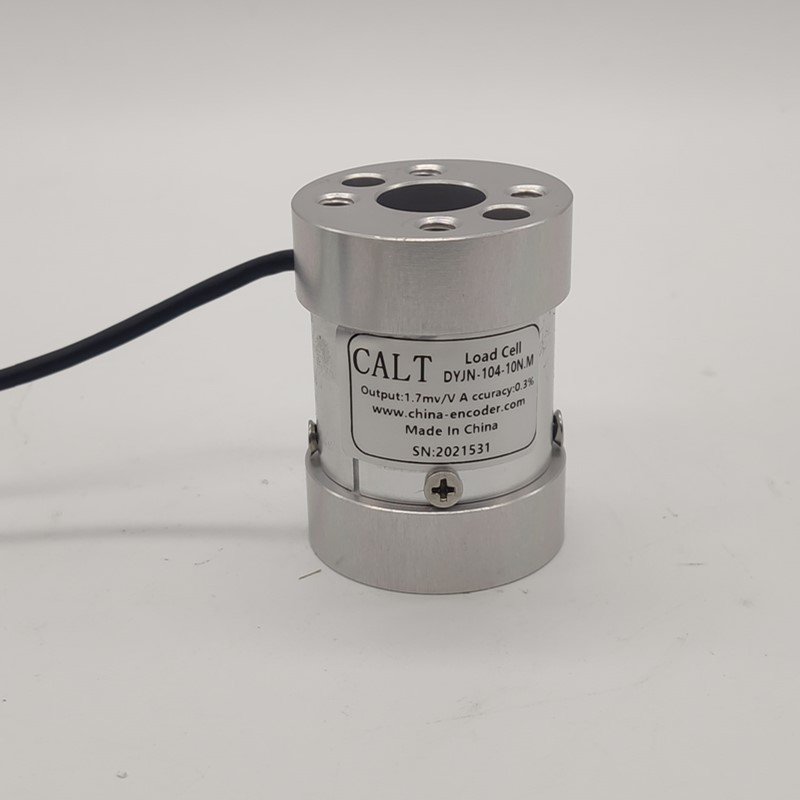

Reaction torque sensor DYJN-104 series
Characteristic and Application fields
Small size, light weight, no base, easy to install and use;
Can be built-in or external transmitter to directly output 4-20mA, 1-5V standard
Current and voltage signals, directly combined with AD card, PLC or DCS to form a torque measuring device;
Can measure the static torque,
High detection accuracy, good stability and strong anti-interference ability;
The static torque can be continuously measured without repeated zero adjustment; the anti-interference is strong, and it can be installed at any position and in any direction;
The strained elastomer is strong enough to withstand 150% load

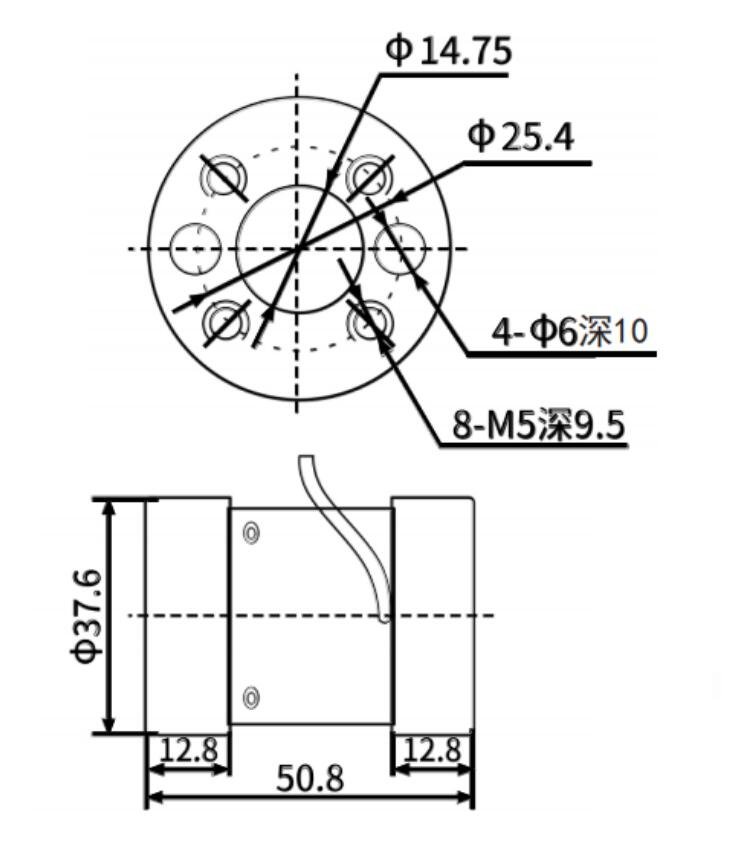

Dimension(mm)
| Capacity(N.m) | 1 | 2 | 3 | 5 | 6 | 10 | 20 | 30 | 50 | 100 | 150 |
Wiring diagram

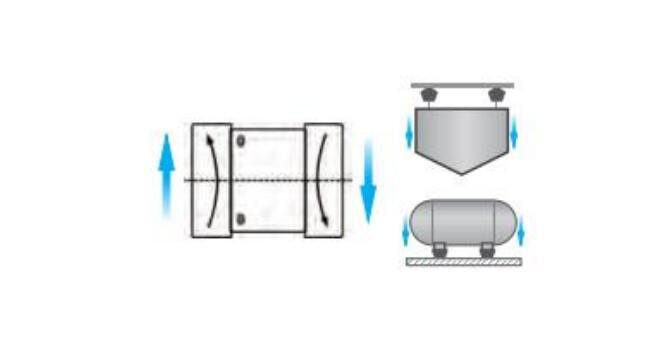

Force diagram
Technical parameter
| Capacity | 0-150N.m | Material | Aluminum alloy/Alloy Steel |
| Rated Output | 2.0mV/V | Impedance | 350Ω |
| Zero Balance | ±2% F.S. | Insulation | ≥5000MΩ/100VDC |
| Non-linearity | 0.05% F.S. | Recommended Excitation | 5-15V |
| Hysteresis | 0.05% F.S. | Operating Temp range | -20~80℃ |
| Repeatability | 0.05% F.S. | Safe Load Limit | 150% |
| Creep (30 Min) | 0.05% F.S. | Ultimate Load Limit | 200% |
| Temp Effect on output | 0.05% F.S./10℃ | Cable Specifications | Φ3*2m |
| Temp Effect on Zero | 0.05% F.S. /10℃ | Cable ultimate pull | 10kg |
| Response frequency | 10kHz | TEDS Optional |
