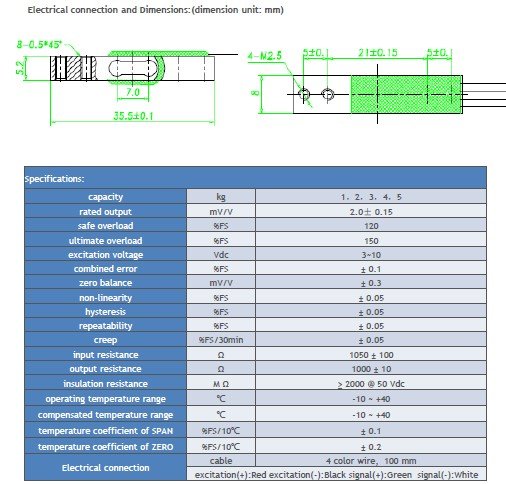

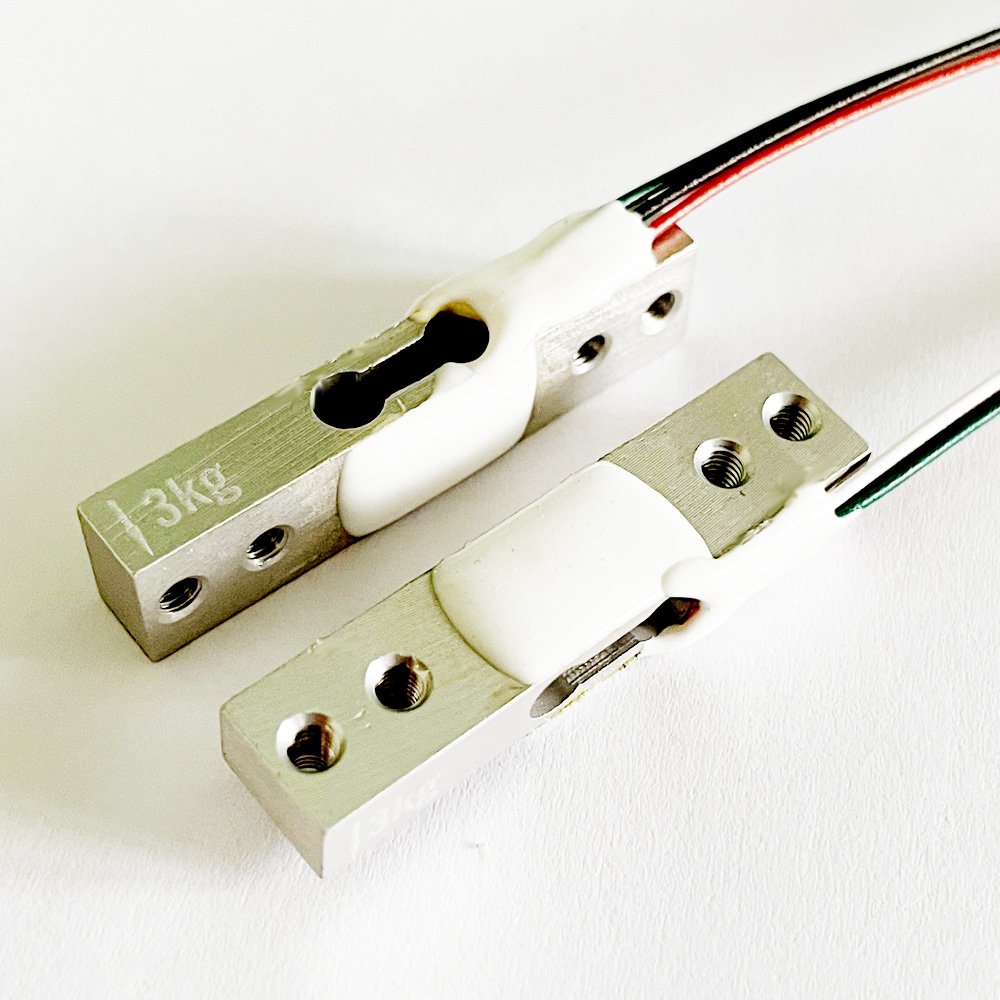

TAL220N micro type load cell
INTRODUCTION:
-
설명
- |
-
Download as PDF
- |
SC902는 전자 저울 및 기타 고정밀 전자 계량 장치에 적합한 소형 체중계용 로드셀입니다. SC902는 뛰어난 신뢰성을 위해 합금강 로드셀로 제작되었으며, 컴팩트한 디자인으로 손이 닿기 어려운 곳에도 설치가 가능합니다. 또한, 간편한 설치를 위해 받침대가 미리 설치되어 있습니다.
This SC902 is a body scale weight miniature load cell ideal for electronic scale and other high accuracy electronic weighing devices. SC902 is made of alloy steel load cell for great reliability and can be installed in hard to reach area because of its compact form factor. The SC902 also has foot pre-installed for simplified installation.
SC929C는 체중계에 적합한 하프 브리지 마이크로 로드셀입니다. SC929C는 최대 50kg의 고용량 제품이지만, 10kg에서 20kg까지 다양한 용량으로 제공되어 특정 사용 사례에 맞게 조정할 수 있습니다. 또한, 로드셀 본체에 받침대가 미리 설치되어 있어 설치가 간편하며, 다른 하프 브리지 마이크로 로드셀과 달리 본체에 장착 구멍이 있어 직접 설치할 수 있습니다.
The SC929C is a half-bridge micro load cell ideal for body scales. The SC929C is high capacity with a maximum of only 50kg but it is also available in a range from 10kg and 20kg so it can be adapted to specific use cases. It also has feet pre-installed to the load cell body to simplify installation and, unlike other half-bridge micro load cells, the SC929C has mounting holes on its body so it can be installed directly.
SC635는 SC133의 소형 버전입니다. SC133과 동일한 마이크로 빔 전단 프로파일을 사용하며, 용량도 동일하지만, 소형 적용 분야에 적합하도록 길이가 더 짧습니다. SC635의 단점 중 하나는 각 측면에 장착 구멍이 하나만 있어 설치 시 특별한 고려 사항이 필요할 수 있다는 점입니다.
The SC635 is the smaller variant of the SC133. It is the same micro beam shear profile as the SC133 and also the same capacity but is shorter in length for compact applications. Note that one trade-off of the SC635 is that there is only one mounting hole on each of the sides and may require special consideration when installing.
SC611CD는 SC133 및 SC635와 유사한 소형 로드셀입니다. SC133보다 작고, 빔 프로파일은 동일하지만 길이가 더 짧아 공간 제약이 있는 어플리케이션에 적합합니다. 또한, SC133과 동일한 용량으로 제공되며 최대 50kg까지 측정 가능합니다.
The SC611CD is a miniature load cell that is similar to the SC133 and SC635. It smaller than SC133, it has the same beam profile but is also shorter making it ideal for the space constrained applications. It is also available in the the same capacities as the SC133 with a maximum of 50kg.
SC611CD는 SC133 및 SC635와 유사한 소형 로드셀입니다. SC133보다 작고, 빔 프로파일은 동일하지만 길이가 더 짧아 공간 제약이 있는 어플리케이션에 적합합니다. 또한, SC133과 동일한 용량으로 제공되며 최대 50kg까지 측정 가능합니다.
The SC611CD is a miniature load cell that is similar to the SC133 and SC635. It smaller than SC133, it has the same beam profile but is also shorter making it ideal for the space constrained applications. It is also available in the the same capacities as the SC133 with a maximum of 50kg.
SC928NB는 체중계 또는 저평형 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC928NB는 최대 5kg의 저용량으로 주방이나 데스크톱 어플리케이션에 적합합니다. 또한, 로드셀 본체에 받침대가 미리 설치되어 있어 설치가 간편합니다. ***SC928NB에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다.***
The SC928NB is a half-bridge micro load cell ideal for body scales or low profile applications. The SC928NB is low capacity with a maximum of only 5kg so it is best for kitchen or desktop applications. It also has feet pre-installed to the load cell body to simplify installation.
***Mounting assembly/module may be necessary as the SC928NB has no mounting holes***
The ZMWMC is constructed from stainless steel and protected from moisture with an epoxy bonded cover. ZMWMC is configured for both of compression and tension force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million load cycles.
Features:
Capacity 1kg-200kg
Both compression and tension
Compact size
Stainless steel
Optional features:
Hermetically sealed available
The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.
Features:
Capacity 10kg-500kg
In-line threaded
Micro size
Stainless steel construction
Optional features:
Optional output(4-20mA, 0-5V)
The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.
Features:
Capacity 10kg-500kg
In-line threaded
Micro size
Stainless steel construction
Optional features:
Optional output(4-20mA, 0-5V)
The ZMSGA provides good restraint to possible movement of the automation and in many cases. The load cell has overload preventer which can protect sensor under extrem overloding situtation. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSGA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Features:
Capacity 0.5kg-200kg
Both tension and compression
Rational outputs
Stainless steel
Optional features:
Hermetically sealed available
SC133은 다양한 소매 및 산업 분야에 사용하도록 설계된 마이크로 빔 전단 로드셀입니다. 알루미늄으로 제작되고 양극산화 처리되어 SC133은 뛰어난 장기 정확도와 신뢰성을 제공합니다.
The SC133 is micro beam shear load cell designed for use in a wide range of retail and industrial applications. It is constructed from aluminum and anodized giving the SC133 great long term accuracy and reliability.
- Capacity: 1-100kg
- Sensitivity: 1.0-2.0mV/V
- Non-linearity 0.5% F.S.
- Repeatability 0.3% F.S.
- Material Stainless steel with nickel plated
- Bi-directional tension and compression
- Can be customized
