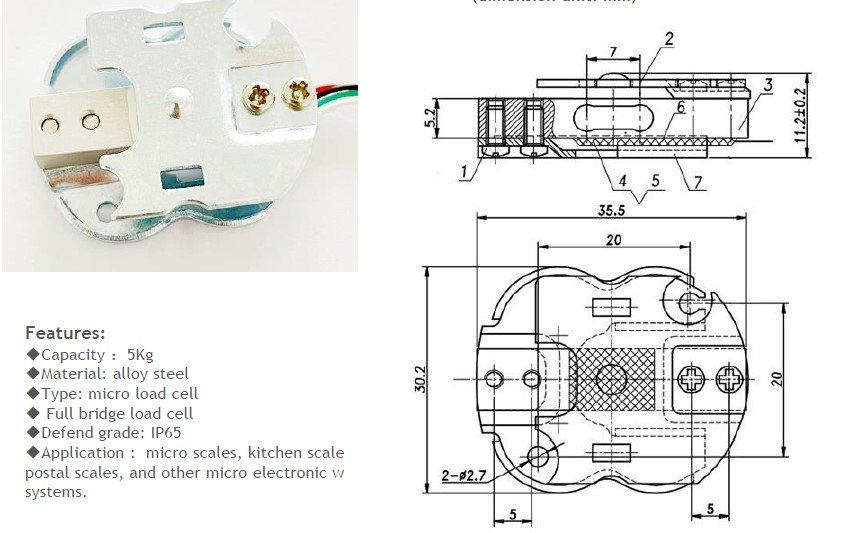

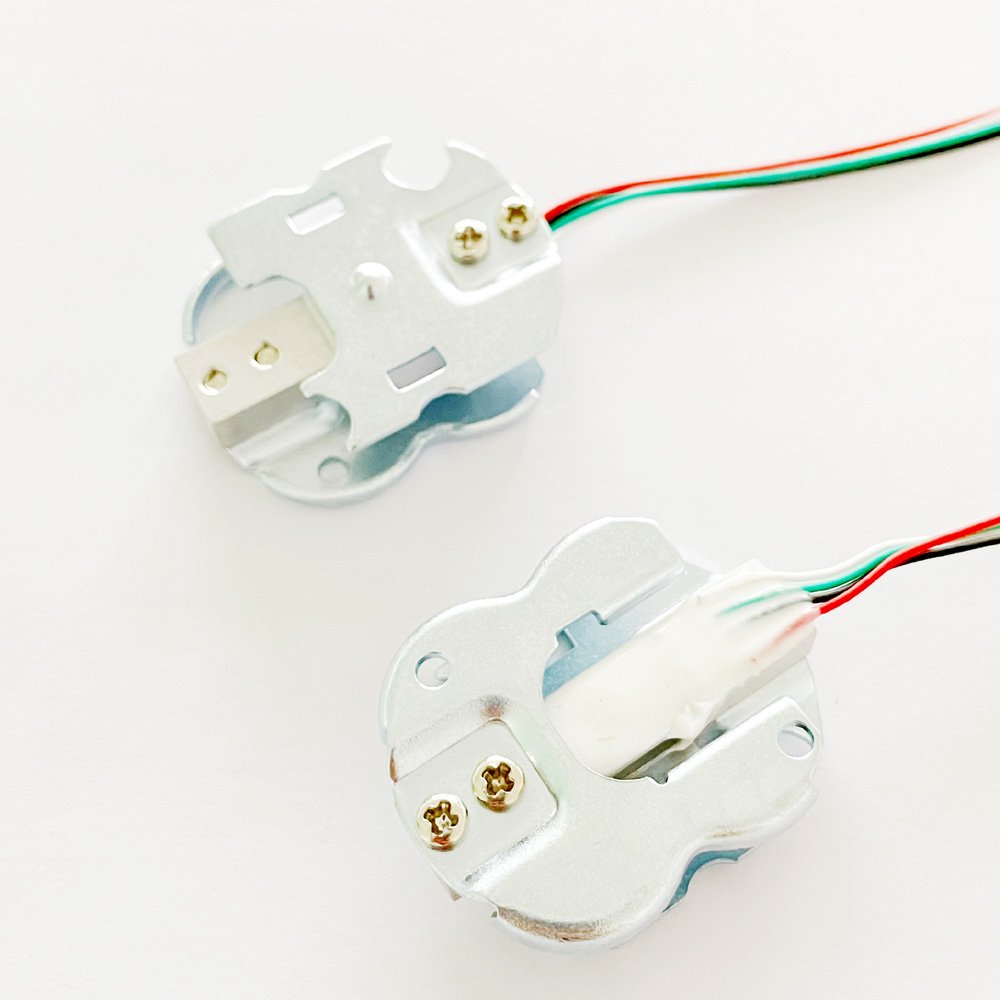

TAL110F micro type load cell
INTRODUCTION:
SC635는 SC133의 소형 버전입니다. SC133과 동일한 마이크로 빔 전단 프로파일을 사용하며, 용량도 동일하지만, 소형 적용 분야에 적합하도록 길이가 더 짧습니다. SC635의 단점 중 하나는 각 측면에 장착 구멍이 하나만 있어 설치 시 특별한 고려 사항이 필요할 수 있다는 점입니다.
The SC635 is the smaller variant of the SC133. It is the same micro beam shear profile as the SC133 and also the same capacity but is shorter in length for compact applications. Note that one trade-off of the SC635 is that there is only one mounting hole on each of the sides and may require special consideration when installing.
SC611CD는 SC133 및 SC635와 유사한 소형 로드셀입니다. SC133보다 작고, 빔 프로파일은 동일하지만 길이가 더 짧아 공간 제약이 있는 어플리케이션에 적합합니다. 또한, SC133과 동일한 용량으로 제공되며 최대 50kg까지 측정 가능합니다.
The SC611CD is a miniature load cell that is similar to the SC133 and SC635. It smaller than SC133, it has the same beam profile but is also shorter making it ideal for the space constrained applications. It is also available in the the same capacities as the SC133 with a maximum of 50kg.
The ZMMC3 is through-hole force sensor which is available in a wide range of standard capacities from 50N through to 1000N. Zhimin offers custom solutions which help you design your unique load cell application. For wahser type load cell, we need to know your required diameter and through hole size. In order to reduce your cost, zhimin can produce sensors according to your current products. Our aim is to provide best solutions for your precious clients.
Features:
Capacity 50N-1KN
Low profile and compact size
Through-hole
Stainless steel construction
Optional features:
Customizable dimensions
SC135는 초박형 소형 로드셀로, 초저프로파일 계량 장비에 사용하도록 인증되었습니다. 다른 저프로파일 마이크로 로드셀과 달리 SC135는 고용량으로 작동하며 단일 지점 로드셀의 대안으로 사용하도록 설계되었습니다. 알루미늄으로 제작되었으며 포팅 소재로 환경 친화적입니다. 이 플랫 로드셀은 가벼운 무게와 간편한 장착으로 어떤 용도에도 매우 쉽게 조립할 수 있습니다.
The SC135 is an ultra thin miniature load cell is certified load cell for use in ultra low-profile weighing equipment. Unlike other low profile micro load cells, the SC135 is capable of high capacities and is designed to be used as an alternative to a single point load cell. It is constructed from aluminum and environmentally protected by potting material. This flat load cell has lightweight design and easy mounting making it very easy to assemble in any application.
SC928NB는 체중계 또는 저평형 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC928NB는 최대 5kg의 저용량으로 주방이나 데스크톱 어플리케이션에 적합합니다. 또한, 로드셀 본체에 받침대가 미리 설치되어 있어 설치가 간편합니다. ***SC928NB에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다.***
The SC928NB is a half-bridge micro load cell ideal for body scales or low profile applications. The SC928NB is low capacity with a maximum of only 5kg so it is best for kitchen or desktop applications. It also has feet pre-installed to the load cell body to simplify installation.
***Mounting assembly/module may be necessary as the SC928NB has no mounting holes***
SC700은 저용량, 소형 어플리케이션에 적합한 소형 로드셀입니다. 작은 크기에도 불구하고 최대 50kg의 용량을 지원합니다.
The SC700 is a miniature load cell that is ideal for low capacity, compact applications. It has a maximum capacity of 50kg despite its small size.
ZMMA-SS is small size force sensor for compression and tension. Widely used on automation machine and small force test purpose.
Features:
Capacity 5N,10N,20N,50N,100N,200N
Compact size
Stainless steel construction
Both compression and tension
Optional features:
0-5V, 4-20mA output signal
The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.
Features:
Capacity 10kg-500kg
In-line threaded
Micro size
Stainless steel construction
Optional features:
Optional output(4-20mA, 0-5V)
The ZMWMC is constructed from stainless steel and protected from moisture with an epoxy bonded cover. ZMWMC is configured for both of compression and tension force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million load cycles.
Features:
Capacity 1kg-200kg
Both compression and tension
Compact size
Stainless steel
Optional features:
Hermetically sealed available
SC913A는 체중계 또는 저평형 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC913A는 최대 5kg의 저용량으로 주방이나 데스크톱 어플리케이션에 적합합니다. 또한, 직사각형 프레임과 로드셀 본체에 미리 설치된 받침대가 있어 설치가 간편합니다. 특수 고객 설치를 위해 받침대 없이도 SC913A를 제공합니다.
***SC913에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다***
The SC913A is a half-bridge micro load cell ideal for body scales or low profile applications. The SC913A is low capacity with a maximum of only 5kg so it is best for kitchen or desktop applications. It also has rectangular frame and feet pre-installed to the load cell body to simplify installation. SC913A is also available without feet for specialized customer installations.
***Mounting assembly/module may be necessary as the SC913 has no mounting holes***
SC132는 현재 출시된 마이크로 빔 전단 로드셀 중 가장 작은 제품입니다. 작은 크기에도 불구하고 2kg의 용량을 처리할 수 있다.
The SC132 is the smallest micro beam shear load cell available. Despite is small size, it can handle 2KG capacity which means that
The ZMSGA provides good restraint to possible movement of the automation and in many cases. The load cell has overload preventer which can protect sensor under extrem overloding situtation. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSGA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Features:
Capacity 0.5kg-200kg
Both tension and compression
Rational outputs
Stainless steel
Optional features:
Hermetically sealed available
