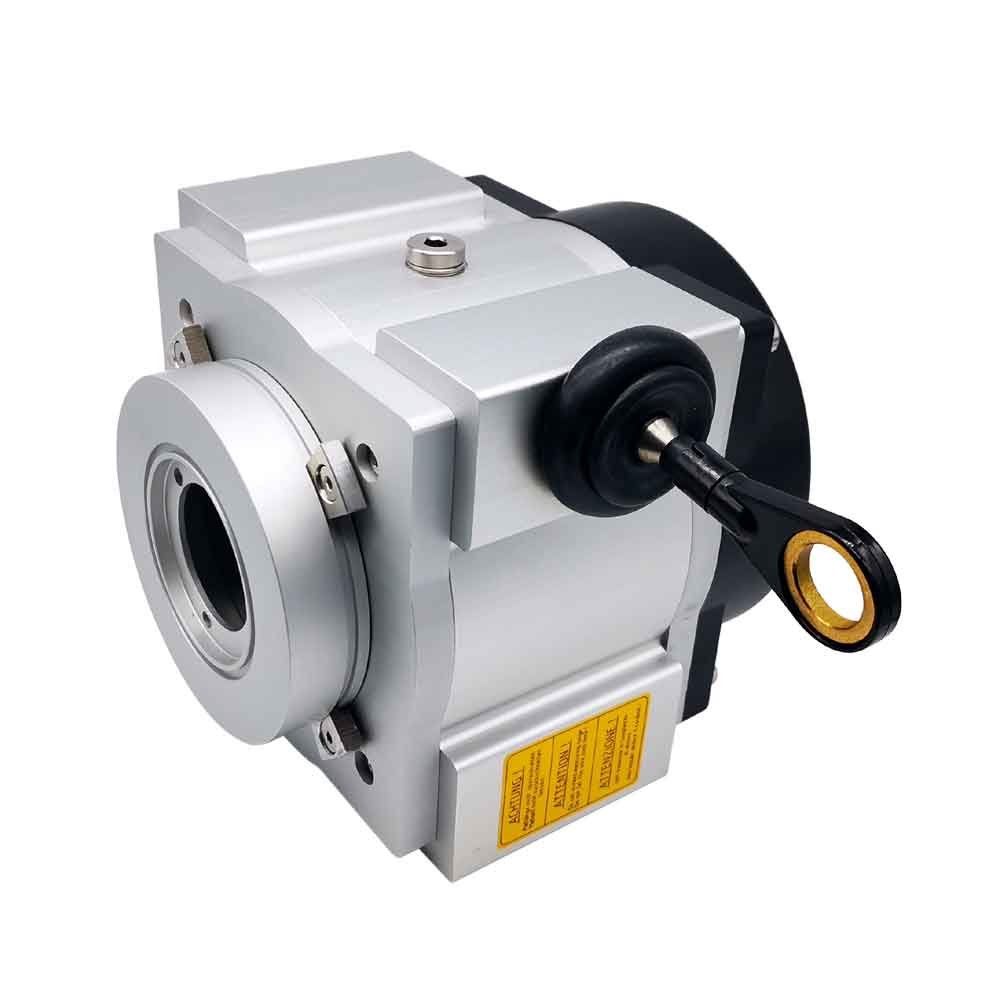

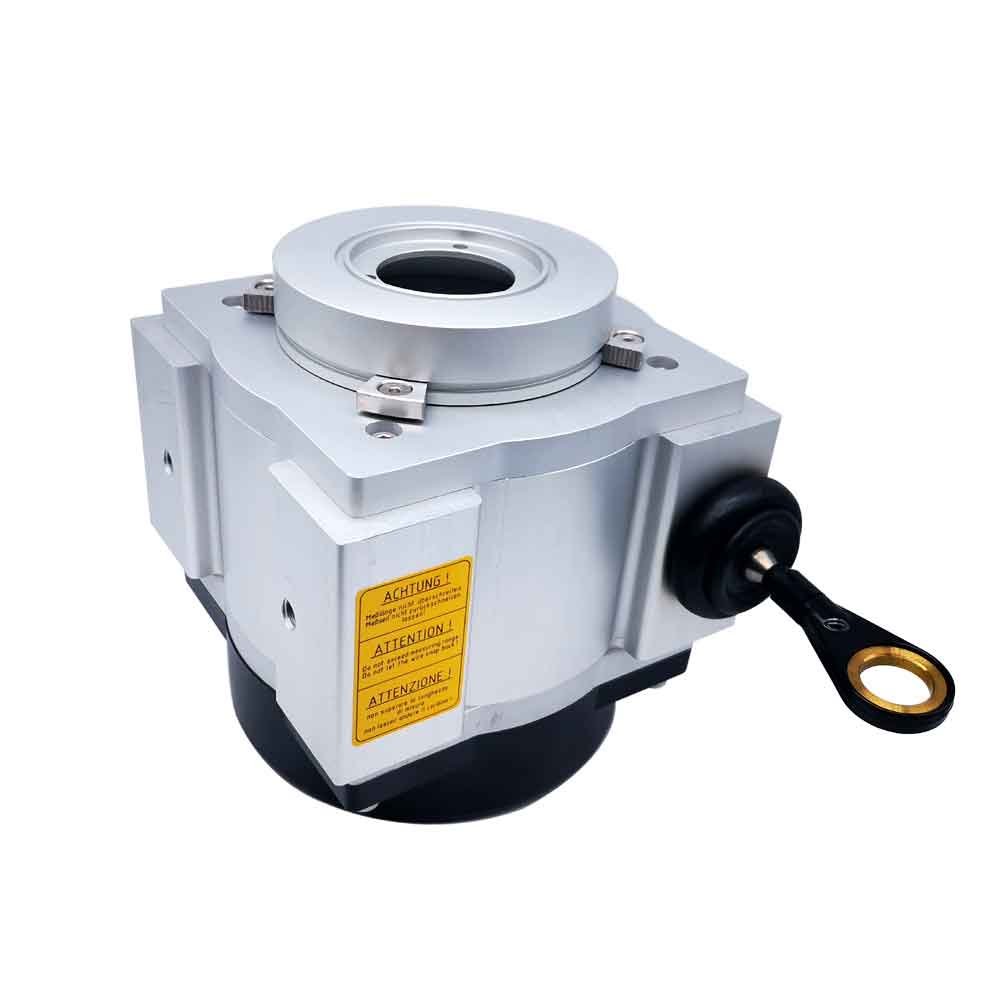

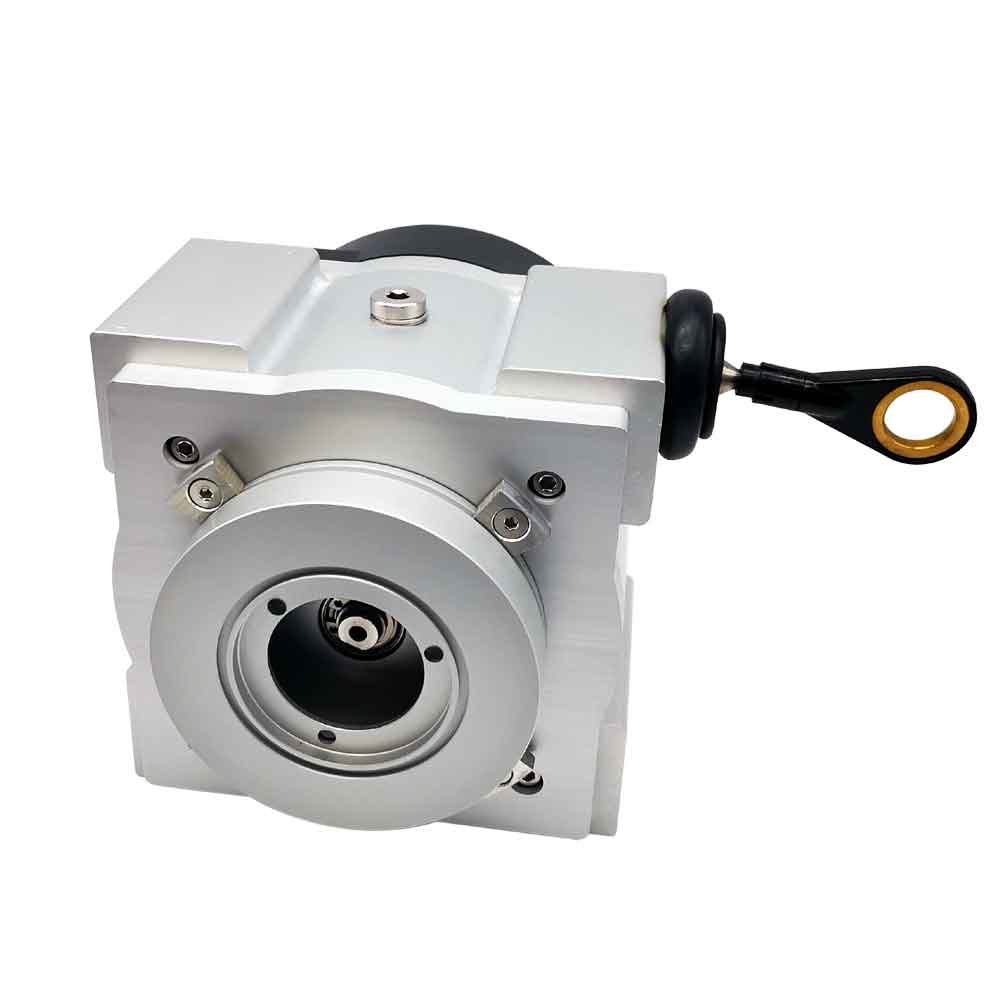

Industrial version string pot BSL-MA130-05
Technical data
| Product | Draw-wire mechanism |
| Profile | Draw- mechanism for servo flange with 6 mm shaft, measuring range 0 m … 5 m |
| Note | Encoders need to be purchased separately |
| Measuring length up to | 0 m … 5 m |
| Repeatability | ≤ 0.5 mm |
| Linearity | ≤ ± 3 mm |
| Hysteresis | ≤ 2 mm |
| Weight | 2.8 kg (without encode) |
| Material（rope） | Highly flexible 316 stainless steel rope |
| Spring sleeve material | plastic |
| Casing material | Aluminum (anode coating treatment), die-cast zinc |
| Circumference of drum | 333 mm |
| Force of retractile spring | 15 N … 20 N 1) |
| Diameter(rope) | 1.2 mm |
| Acceleration | 70 m/s² |
| Speed of adjustment | 10 m/s |
| Resolution | To determine the system resolution, use the following formula:
Pull-out length of cable per circle / Steps per circle = Resolution of draw-wire encoder combination |
| Working temperature | –30 °C … +70 °C |
| IP code of casing | IP64 |
| life | Typ. 5000,000 cycle 2) 3) |
- 1) This value is measured at an ambient temperature of 25 °C. When the temperature changes, the value may deviate..
- 2) The average value depends on the load pattern.
- 3) The service life depends on the type of load. Influencing factors include: environmental conditions, installation conditions, measuring range used, moving speed and acceleration.

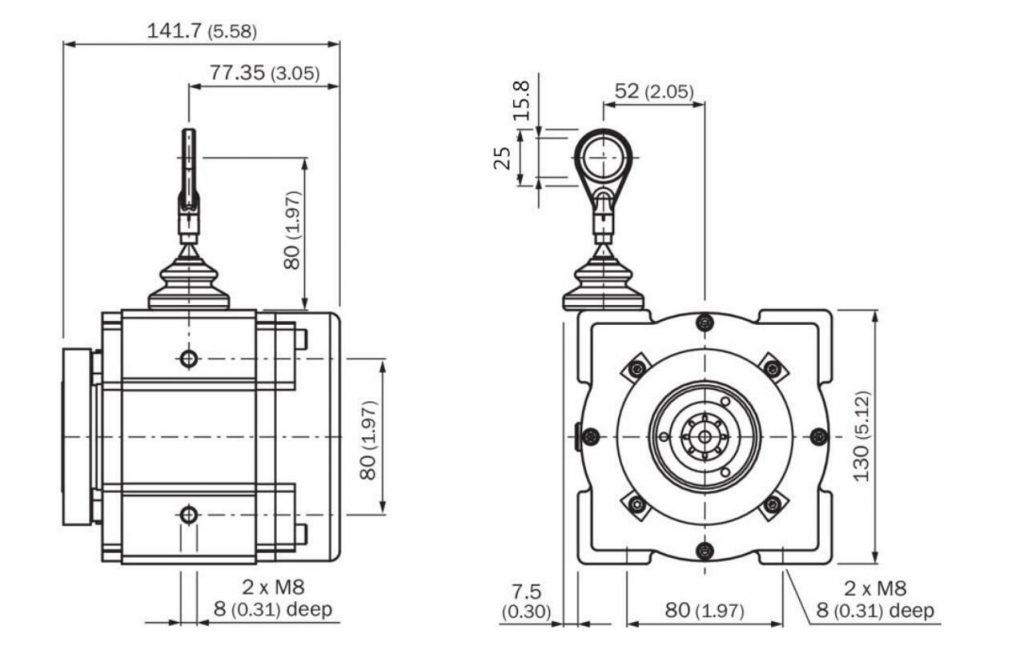

Dimension(mm/inch)
