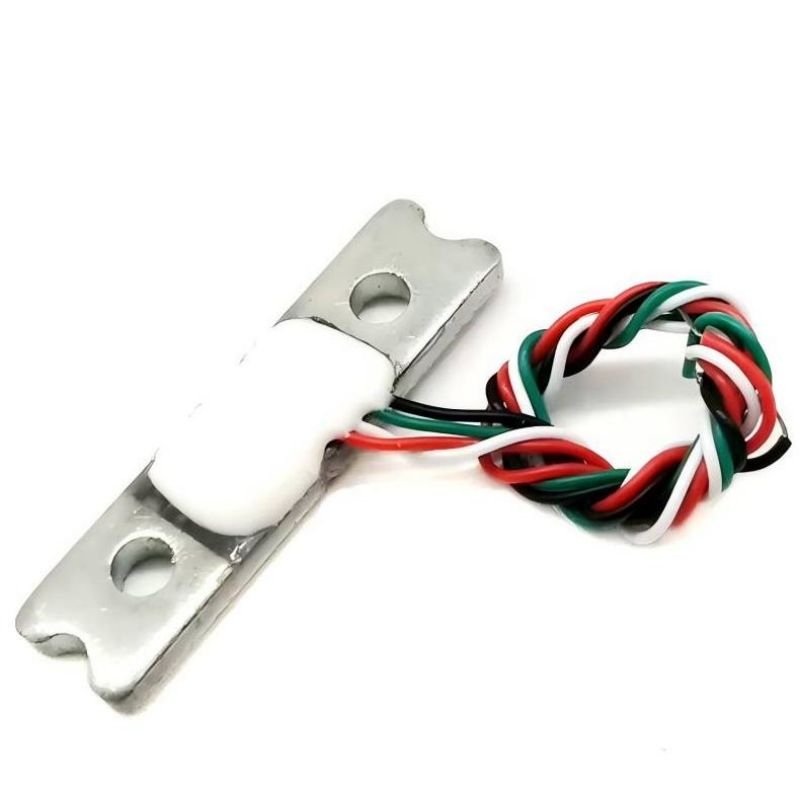

AM34D micro load cell have 10kg,20kg,30kg,40kg, 50kg, the accuracy is 0.3% F.S, small size 31.8*7.9*H mm, and the cable is Φ0.8×110mm.
| Accuracy | 0.3% F.S |
|---|---|
| Capacity | 10kg,20kg,30kg,40kg, 50kg |
| Certificate | RoHS, CE |
| Creep | 0.1 % F.S./3min |
| Material | manganese steel |
| Model | AM34D |
| Sensitivity | Table±0.2 mV/V |
| Size | 31.8*7.9*H mm |
AM34D micro load cell have 10kg,20kg,30kg,40kg, 50kg, the accuracy is 0.3% F.S, small size 31.8*7.9*H mm, and the cable is Φ0.8×110mm. the load cell is hot sales for Baggage weighing, Hook scale, portable scale, postal scale, hanging scale, fishing scale.
Contact us if you need the Datasheet PDF.
ZMMA-YS is mini type force transducer, widely used on UTM and compression&tension force applications.
Features:
Both compression and tension
SC928NB는 체중계 또는 저평형 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC928NB는 최대 5kg의 저용량으로 주방이나 데스크톱 어플리케이션에 적합합니다. 또한, 로드셀 본체에 받침대가 미리 설치되어 있어 설치가 간편합니다. ***SC928NB에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다.***
The SC928NB is a half-bridge micro load cell ideal for body scales or low profile applications. The SC928NB is low capacity with a maximum of only 5kg so it is best for kitchen or desktop applications. It also has feet pre-installed to the load cell body to simplify installation.
***Mounting assembly/module may be necessary as the SC928NB has no mounting holes***
ZMMA-CS is miniature type force sensor for both of compression and tension usage.
Features:
Both compression and tension
The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.
Stainless steel construction
SC639M은 저용량에 적합한 소형 로드셀입니다. 특수한 뼈대 구조를 갖추고 있어 소규모 응용 분야에서 더 작은 용량을 처리할 수 있습니다. 특수 구조로 인해 최대 용량은 2kg에 불과합니다.
The SC639M is a miniature load cell that is ideal for low capacity. It has a special bone structure that allows it handle smaller capacities for small applications. Note that because of its special structure, its maximum capacity is only 2KG
SC918은 체중계 및 저중량 계량 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC918은 최대 75kg의 고용량으로 설계되었지만, 50kg으로도 제공됩니다.
***SC918에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다***
The SC918 is a half-bridge micro load cell ideal for body scales and low profile weighing applications. The SC918 is intended for high capacity with a maximum of 75kg but it is also available in 50kg.
***Mounting assembly/module may be necessary as the SC918 has no mounting holes***
Stainless steel
The S beam load cell provides good restraint to possible movement of the automation and in many cases. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Stainless steel
SC700은 저용량, 소형 어플리케이션에 적합한 소형 로드셀입니다. 작은 크기에도 불구하고 최대 50kg의 용량을 지원합니다.
The SC700 is a miniature load cell that is ideal for low capacity, compact applications. It has a maximum capacity of 50kg despite its small size.
| Model Number: | TBQ | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | mixing machine | Theory: | resistant strain |
| Output: | 2.0mv/v | Description: | load pin |
| Rated Load: | 5t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
SC913A는 체중계 또는 저평형 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC913A는 최대 5kg의 저용량으로 주방이나 데스크톱 어플리케이션에 적합합니다. 또한, 직사각형 프레임과 로드셀 본체에 미리 설치된 받침대가 있어 설치가 간편합니다. 특수 고객 설치를 위해 받침대 없이도 SC913A를 제공합니다.
***SC913에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다***
The SC913A is a half-bridge micro load cell ideal for body scales or low profile applications. The SC913A is low capacity with a maximum of only 5kg so it is best for kitchen or desktop applications. It also has rectangular frame and feet pre-installed to the load cell body to simplify installation. SC913A is also available without feet for specialized customer installations.
***Mounting assembly/module may be necessary as the SC913 has no mounting holes***
ZMMA-SS is small size force sensor for compression and tension. Widely used on automation machine and small force test purpose.
Features:
Both compression and tension
