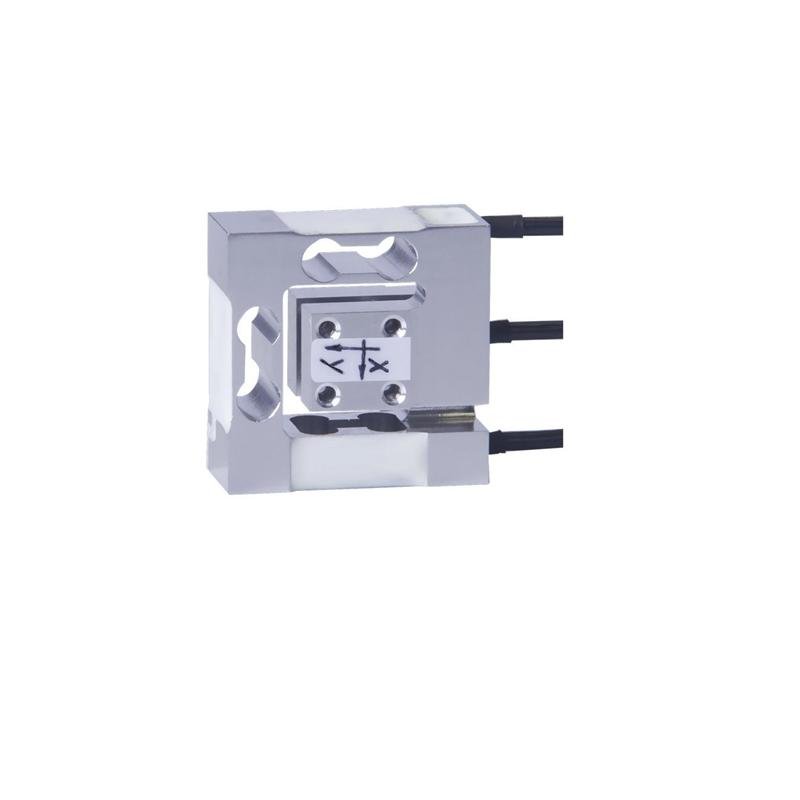

Model: LAN-X1
Capacity: 10,20,30,50 N
Usage: Used for multidirection force measuring systems
Dimension: 40*40*20mm
Features
- Torque Sensors/Multidirection force sensors
- capacity:10N,…,50N
- accuracy:0.2%R.O.
- low profile
- micro structure
- aluminum construction with surface anodized
- environment protection class:IP65
Applications
- force measuring in a narrow space
- torque wrensh and torsion measurement of shaft
- multidirection force measuring systems

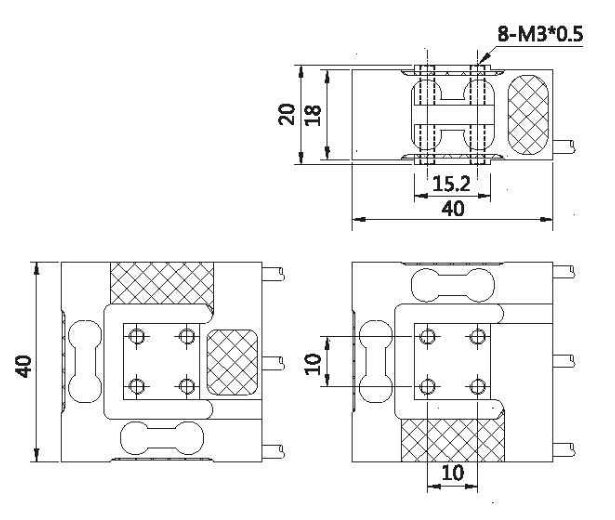

Dimension
Electrical Connection
Technical Data
| Rated Capacity | 10, 20, 30, 50 (N) |
| Accuracy Class | X |
| Rated Output | 1.0 ± 0.5%mV/V |
| Zero Balance | ± 0.1 mV/V |
| Input Resistance | 350±10Ω |
| Output Resistance | 350±10Ω |
| Linearlty Error | ±0.2%R.O. |
| Repeatability Error | ±0.2%R.O. |
| Hysteresis Error | ±0.2%R.O. |
| Creep in 2 Min. | ±0.2%R.O. |
| Temp.Effect on Output | ±0.1%R.O./10℃ |
| Temp.Effect on Zero | ±0.5%R.O./10℃ |
| Compensated Temp.Range | -10－+40℃ |
| Excitation,Recommended | ≤ 6VDC |
| Operating Temp.Range | -20－+60℃ |
| Safe Overload | 120%R.C. |
| Insulation Resistance | ≥2000MΩ(50VDC) |
| Cable,Length | ø3mm×2m * |
| Protection Class | IP65 |
