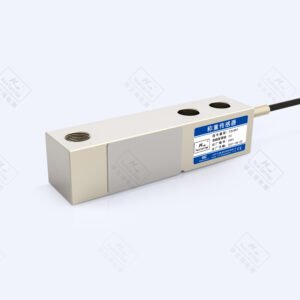

Single-Ended Beam load Cell HM8C
Dimensions
Specifications
| Specification | Value | |
| Accuracy class | C3 | |
| Output sensitivity (=FS) | Mv/V | 2.0 ± 0.0040 |
| Maximum capacity (Emax) | t | 0.5 / 1 / 1.5 / 2 / 3 / 5 / 10 |
| Maximum number of load cell intervals (nLC) | 3000 | |
| Ratio of minimum LC verification interval Y=Emax/Vmin | 10000 | |
| Combined error | %FS | ±0.0230 |
| Minimum dead load | %FS | 0 |
| Safe overload | %FS | 150 |
| Ultimate overload | %FS | 300 |
| Zero balance | %FS | ±1.5 |
| Excitation, recommended voltage | V | 5~12 (DC) |
| Excitation maximum | V | 18 (DC) |
| Input resistance | Ω | 350±3.5 |
| Output resistance | Ω | 351±2.0 |
| Insulation resistance | MΩ | ≧5000(50VDC) |
| Compensated temperature | ℃ | -10 ~ +40 |
| Operating temperature | ℃ | -35 ~ +65 |
| Storage temperature | ℃ | -40 ~ +70 |
| Element material | Nickel plated alloy steel | |
| Ingress protection (acc. to EN 60529) | IP68 | |
| Recommended torque on fixation | N.m | M12: 100, M18: 300, M24: 750 |
| ATEX classification (optional) | 11G ExialCT4 II1D ExiaD 20T73° II3G Ex nL IIC T4 |
