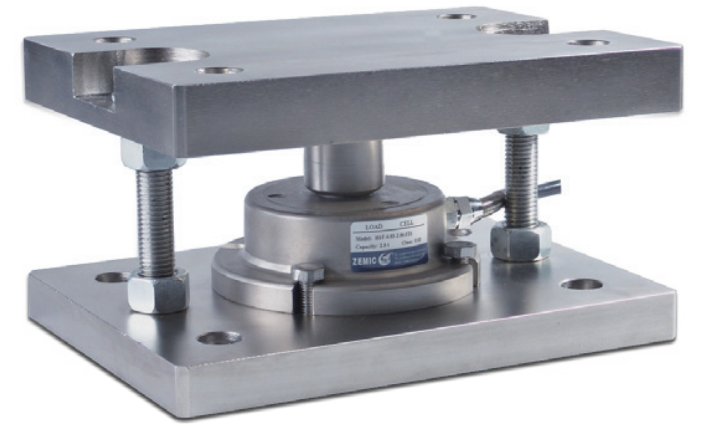

HM-2-401 Weighing Module Load Cell Zemic Load Cell
Short Description:
◎Anti-reversal ability；
◎Easy installation；
◎ Nickel plated alloy steel；
◎ Self-aligning ability；
◎Can be used with Load Cell models: H2F；
◎ Available in fixed, half-floating and floating version；
Available models：

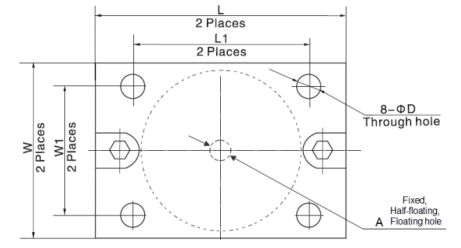

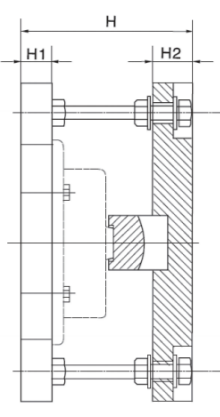

Dimensions in mm：
 Capacity(t) |
H | H1 | H2 | L | L1 | W | W1 | D |
| 1t-5t | 112
(4.41) |
20
(0.79) |
27
(1.06) |
228
(8.98) |
168
(6.61) |
170
(6.69) |
110
(4.33) |
17.5
(0.69) |
| 10t | 143
(5.63) |
25
(0.98) |
31
(1.22) |
260
(10.24) |
200
(7.87) |
200
(7.87) |
140
(5.51) |
20
(0.79) |
| 15t | 163
(6.42) |
30
(1.18) |
37
(1.46) |
294
(11.57) |
234
(9.21) |
234
(9.21) |
174
(6.85) |
20
(0.79) |
| 20t | 173
(6.81) |
30
(1.18) |
37
(1.46) |
320
(12.6) |
260
(10.24) |
260
(10.24) |
200
(7.87) |
20
(0.79) |
| 30t | 200
(7.87) |
35
(1.38) |
47
(1.85) |
330
(12.99) |
270
(10.63) |
270
(10.63) |
210
(8.27) |
23
(0.91) |
| 50t | 225
(8.86) |
40
(1.57) |
55
(2.17) |
364
(14.33) |
294
(11.57) |
294
(11.57) |
224
(8.82) |
27
(1.06) |

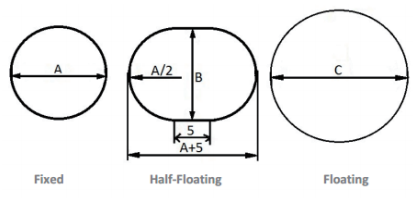

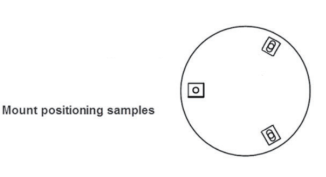

Fixed, half-floating, floating hole & mount positioning：
