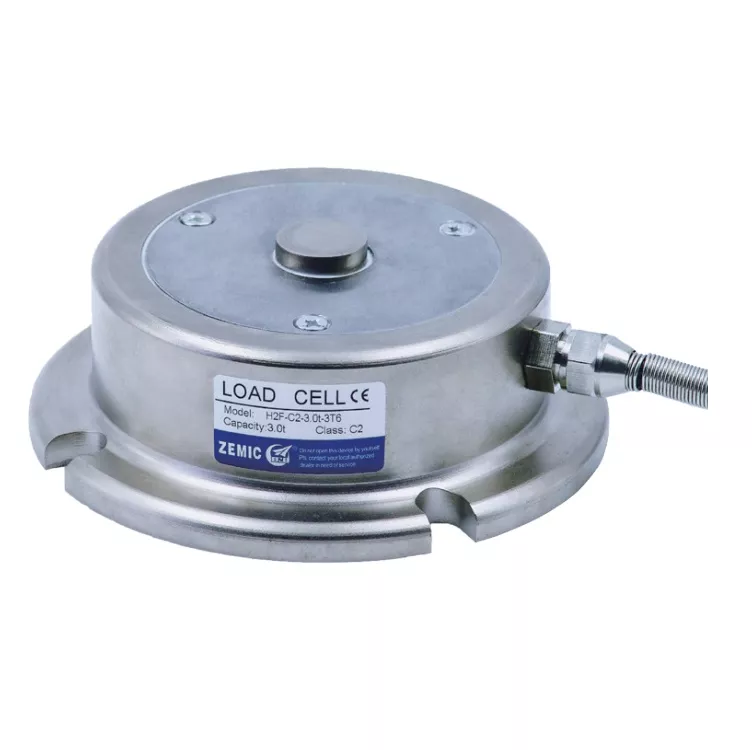

H2D Compression Loading Ring Torsion Load Cell

Product Description


Short Description:

◎Nickel plated alloy steel IP67 compression load cell；

◎High accuracy；

◎Suitable for hanging, hopper and other electronic weighing devices；

Available models：

Capacity Accuracy Full article description Capacity Accuracy Full article description
1 t C3 H2F-C1/C2-1t-3T6 15 t C1 H2F-C1/C2-15t-5T6
2 t C3 H2F-C1/C2-2t-3T6 20 t C1 H2F-C1/C2-20t-5T6
3 t C3 H2F-C1/C2-3t-3T6 30 t C1 H2F-C1/C2-30t-5T6
5 t C2 H2F-C1/C2-5t-4T6 50 t C1 H2F-C1/C2-50t-5T6
10 t C2 H2F-C1/C2-10t-4T6

Specification：

Accuracy class C1 C2 C3
Output sensitivity(= FS) mV/V 2.0±0.01
Maximum capacity ( Emax) t 1,2, 3, 5, 10, 15, 20, 30, 50
Maximum number of load cell intervals (nLC) 1000 2000 3000
Ratio of minimum LC verification interval Y = Emax / Vmin 3000 5000 7500
Combined error %FS ±0.050 ±0.030 ±0.020
Minimum dead load of Emax 0
Safe overload of Emax 150%
Ultimate overload of Emax 300%
Zero balance %FS ±1.0
Excitation, recommended voltage V 5-12(DC)
Excitation maximum V 18(DC)
Input resistance Q 770±30
Output resistance Q 700±5
Insulation resistance MΩ ≥ 5000(50VDC)
Compensated temperature ℃ -50
Operating temperature ℃ -35~+65
Storage temperature ℃ -40~+70
Element material Alloy steel
lngress protection (according to EN 60529) IP67
Recommended torque on fixation N.m M8:25M10:50M12:75

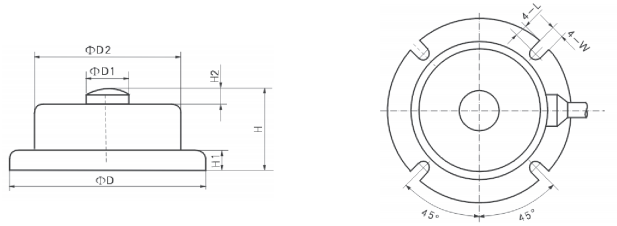

Dimensions in mm：


Dimension(mm)

Capacity(t)

 D D1 D2 H H1 H2 L W
0.5.1 115

(4.53)

 22

(0.87)

 86

(3.39)

 43

(1.69)

 12

(0.47)

 5

(0.2)

 8

(0.31)

 8.4

(0.33)
2 120

(4.72)

 26

(1.02)

 90

(3.54)

 45

(1.77)

 12

(0.47)

 5

(0.2)

 8

(0.31)

 8.4

(0.33)
3 128

(5.04)

 20

(0.79)

 100

(3.94)

 46

(1.81)

 8

(0.31)

 5

(0.2)

 7

(0.28)

 10.4

(0.41)
5 128

(5.04)

 20

(0.79)

 100

(3.94)

 46

(1.81)

 8(0.31) 5(0.2) 7

(0.28)

 10.4

(0.41)
10 160

(6.3)

 40

(1.57)

 120

(4.72)

 63

(2.48)

 15

(0.59)

 10

(0.39)

 10

(0.39)

 10.4

(0.41)
15 194

(7.64)

 42

(1.65]

 154

(6.06)

 68

(2.68)

 20

(0.79)

 10

(0.39)

 12

(0.47)

 12.4

(0.49)
20 220

(8.66)

 44

(1.73)

 170

(6.69)

 73

(2.87)

 22

(0.87)

 10

(0.39)

 12

(0.47)

 12.4

(0.49)
30 230

(9.06)

 48

(1.89)

 188

(7.4)

 78

(3.07)

 25

(0.98)

 10

(0.39)

 12

(0.47)

 12.4

(0.49)
50 264

(10.39)

 52

(2.05)

 214

(8.43)

 90

(3.54)

 30

(1.18)

 10

(0.39)

 12

(0.47)

 12.4

(0.49)



Wiring：

◎Shielded, 6 conductor cable；

◎Cable diameter: Φ5mm；

◎Standard cable length for 1t — 3t: 3m, for 5t — 10t: 4m and for 15t — 50t: 5m；

◎Shield not connected to element；
