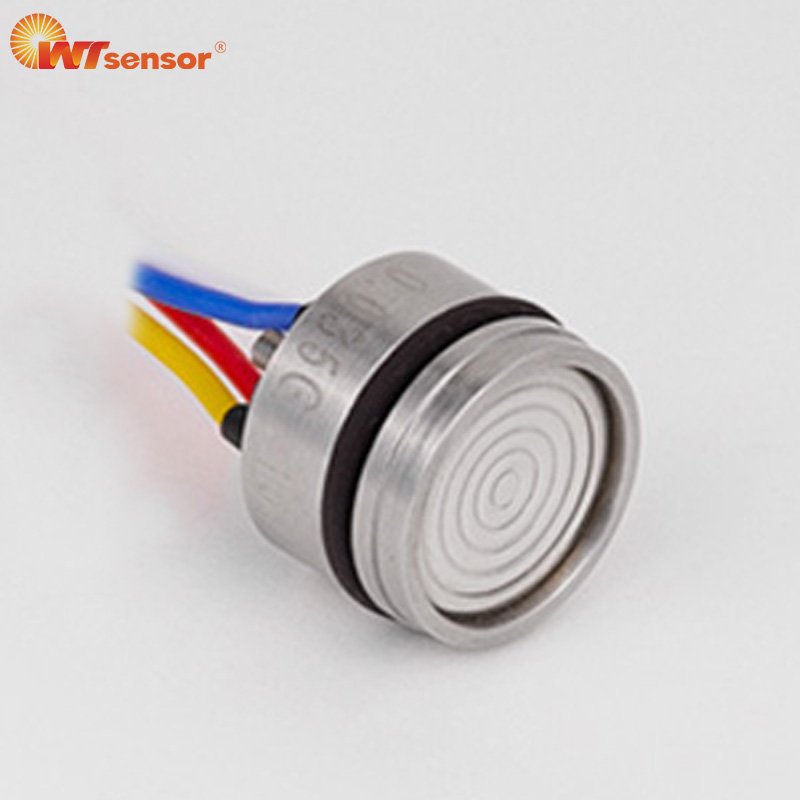

Piezoresistive Pressure Sensor Φ15.8×11mm PC16
Features
■ With constant current and constant voltage excitation options
■ Imported highly reliable pressure die
■ Wide temperature compensation
■ Normalized output available
■ Compensation board filled with glue for protection against moisture
■ Φ15.8mm standard OEM
■ All 316L material
■ High performance, all solid, high reliability
■ 18 months warranty period
Applications
■ Process control systems
■ Pressure calibration instruments
■ Refrigeration equipment and HVAC control
■ Hydraulic systems and valves
■ Level measurement
■ Biomedical instruments
■ Ships and navigation
■ Aircraft and avionics systems
■ Weaponry
Product Parameters
| Electrical performance parameters | ||
| Pressure range | -100kPa~0~100kPa…25MPa | |
| Pressure reference | Gauge pressure, Absolute pressure, Sealed gauge pressure | |
| Excitation | 1.5mA recommended for constant current
10V recommended for constant voltage |
|
| Input impedance | Constant current: 2kΩ~5kΩ
Constant voltage: 3kΩ~18kΩ |
|
| Electrical connection | Gold-plated KOVAR pin or silicon soft wire | |
| Compensated temp. | -10℃~70℃ | |
| Operating temp. | -40℃~125℃ | |
| Storage temp. | -40℃~125℃ | |
| Insulation resistance | ≥200MΩ/250VDC | |
| Response time | ≤1ms (up to 90%FS) | |
| Measured medium | All the liquids and gases compatible with 316L. | |
| Mechanical vibration | 20g (20～5000Hz) | |
| Shock | 100g (10ms) | |
| Service life | 1×106 (cycles) | |
| Structural performance parameters | ||
| Diaphragm material | 316L | |
| Housing material | 316L | |
| Oil filling | Silicon oil | |
| Sealing ring | Fluorine rubber | |
| Basic parameters | |||||||
| Item | Condition | Min | Nominal | Max | Unit | Note | |
| Nonlinearity | -0.3 | ±0.2 | 0.3 | %FS | Note⑴ | ||
| Hysteresis | -0.05 | ±0.03 | 0.05 | %FS | |||
| Repeatability | -0.05 | ±0.03 | 0.05 | %FS | |||
| Zero output | -2 | ±1 | 2 | mV | |||
| Full scale span output | 1.5mA
10V |
60
80 |
90
100 |
150
120 |
mV | ||
| Zero temp. coefficient | -1.5 | ±0.75 | 1.5 | %FS | Note⑵ | ||
| Span temp. coefficient | -1.5 | ±0.75 | 1.5 | %FS | Note⑵ | ||
| Thermal hysteresis | -0.075 | ±0.05 | 0.075 | %FS | Note⑶ | ||
| Long term stability | -0.3 | ±0.2 | 0.3 | %FS/Year | |||
Note:
(1) Calculate according to BFSL least square method. Negative pressure range is calculated in segments.
(2) In the compensated temperature range, refer to 30 ℃ for -10 ℃ ~ 70 ℃.
(3) After passing high and low temperature, return to the reference temperature.

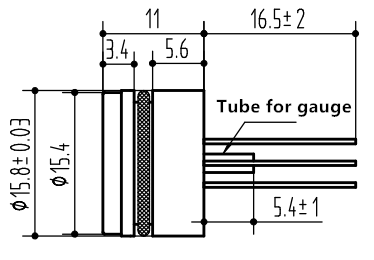

| Structure and dimensions |
In mm
| Gauge pressure
100kPa～2.5MPa |
Sealed gauge pressure or absolute pressure
4MPa～25MPa |
 |
 |
| Electrical connection (in mm) |

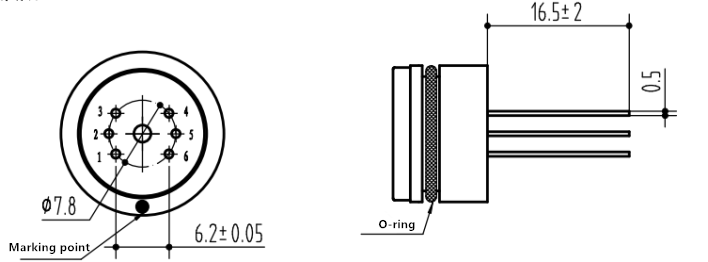

1). 6 pin (6p) for constant current (consult with technical dept. for constant voltage)
|
Pin Definition
3 Excitation+(IN+) 5 Excitation-(IN-) 2 Output+(OUT+) 4 Output-(OUT-) 1 Die- 6 Die- |

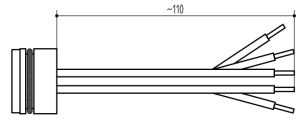

2). 4 wire (4w)
|
Wire color Definition
Red Excitation+(IN+) Blue Excitation-(IN-) Yellow Output+(OUT+) White Output-(OUT-) |
3). 5 wire (5w)
|
Wire color Definition
Red Excitation+(IN+) Blue Excitation-(IN-) Blue Excitation-(IN-) Yellow Output+(OUT+) White Output-(OUT-) |
||||||
| Pressure range selection | |||||||
| Code | Pressure reference | Pressure range | Overpressure | Burst pressure | O-ring | ||
| 100k | G, A | 0～100kPa | 200％FS | 500％FS | Fluorine rubber | ||
| 160k | G, A | 0～160kPa | 200％FS | 500％FS | Fluorine rubber | ||
| 250k | G, A | 0～250kPa | 200％FS | 500％FS | Fluorine rubber | ||
| 400k | G, A | 0～400kPa | 200％FS | 500％FS | Fluorine rubber | ||
| 600k | G, A | 0～600kPa | 200％FS | 500％FS | Fluorine rubber | ||
| 1M | G, A | 0～1MPa | 200％FS | 500％FS | Fluorine rubber | ||
| 1.6M | G, A, S | 0～1.6MPa | 200％FS | 500％FS | Fluorine rubber | ||
| 2.5M | G, A, S | 0～2.5MPa | 200％FS | 500％FS | Fluorine rubber | ||
| 4M | S | 0～4MPa | 200％FS | 400％FS | Fluorine rubber | ||
| 6M | S | 0～6MPa | 200％FS | 400％FS | Fluorine rubber | ||
| 10M | S | 0～10MPa | 200％FS | 400％FS | Fluorine rubber | ||
| 16M | S | 0～16MPa | 200％FS | 400％FS | Fluorine rubber | ||
| 25M | S | 0～25MPa | 150％FS | 400％FS | Fluorine rubber | ||
| (-100～0)k | Omitted | -100～0kPa | 300kPa | 600kPa | Fluorine rubber | ||
| (0～-100)k | Omitted | 0～-100kPa | 300kPa | 600kPa | Fluorine rubber | ||
| NP100k | Omitted | ±100kPa | 300kPa | 600kPa | Fluorine rubber | ||
Note: G: Gauge pressure, A: Absolute pressure, S: Sealed gauge pressure
