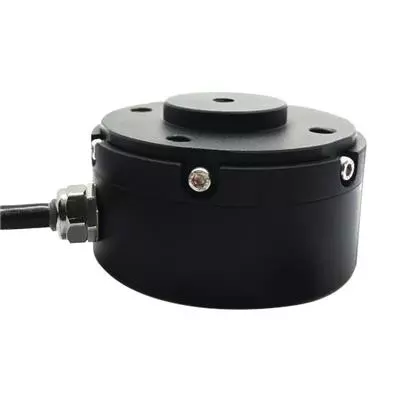

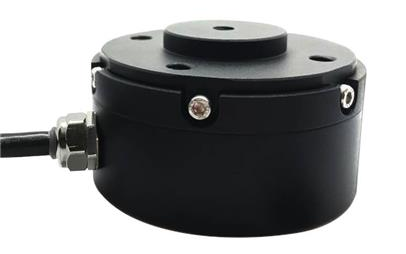

LCX6010 Multi Axis Load Cell Suppliers Strain Gauge Six-axis Force And Torque Sensors

Product Description


Product Introduction:

◎Aluminum alloy material, epoxy treatment;

◎Accuracy≤0.2% F.S;

◎Accuracy≤0.5% F.S;

◎Independent research and development, high cost performance;

◎Analog output, which can be used with collector;

◎Structural decoupling design, small coupling between dimensions;

◎Support 485 / can / USB / Ethernet / EtherCAT;

◎Widely used in industrial robots, cooperative robots, medical robots and industrial automation measurement;

Dimension:


Technical Parameter：

Parameter Reference Value Parameter Reference Value
Capacity:

Fx/Fy/Fz

Mx/My/Mz

 200/200/400N

7/7/7Nm

 Reference voltage 10V
Temp. Effect On Zero 0.3%of Cn/10K Operating voltage range 0…12V
Sensitivity:

Fx/Fy/Fz

Mx/My/Mz

 0.49mV/V;0.524mV/V

1.2912mV/V;1.9992mV/V

2.856mV/V;2.99451mV/V

 Insulation resistance ＞2GΩ/50V
Sensitivity error ±5% Rated temp. range -20～+80℃
Effect of temp. on sensitivity 0.5%of Cn/10K Operating temp. range -20～+80℃
Nonlinear error 0.5%of Cn Storage temp. range -20～+70℃
Lag error 0.3%of Cn Safe bearing 120%of  Emax
Zero Balance ±0.25mV/V Safe Overload 120%of  Emax
Input Resistance 83±20Ω Material Science Aluminium Alloy
Output Resistance

Fx/Fy/Fz/Mx/My/Mz

 356±20/356±20/705±20Ω

361±20/353±20/705±20Ω

 Protection Level IP65



Product name LCX6010 Multi Axis Load Cell Suppliers Strain Gauge Six-axis Force And Torque Sensors
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
