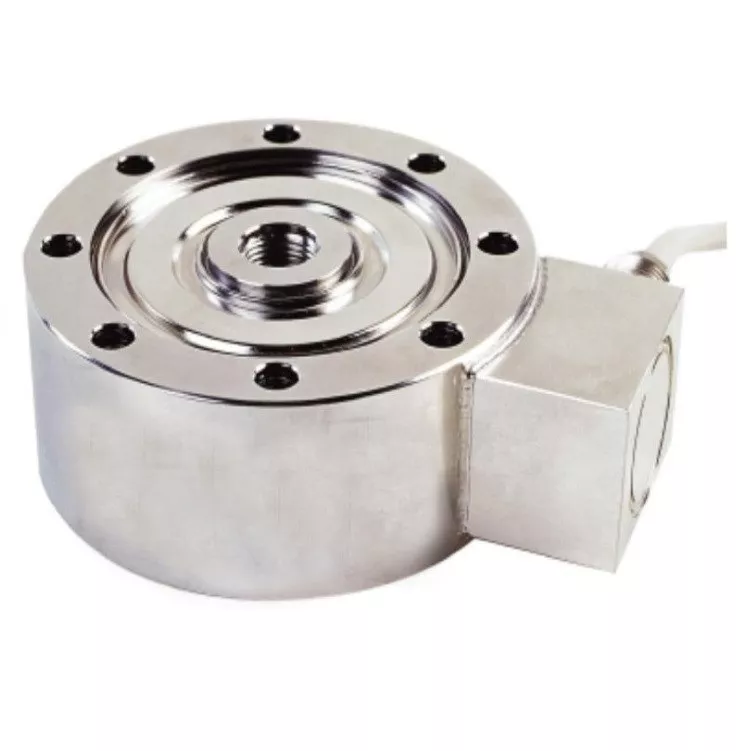

LC509 Torsional Ring Load Weighing Sensor Spoke Type Truck Scales Load Cell

Product Description

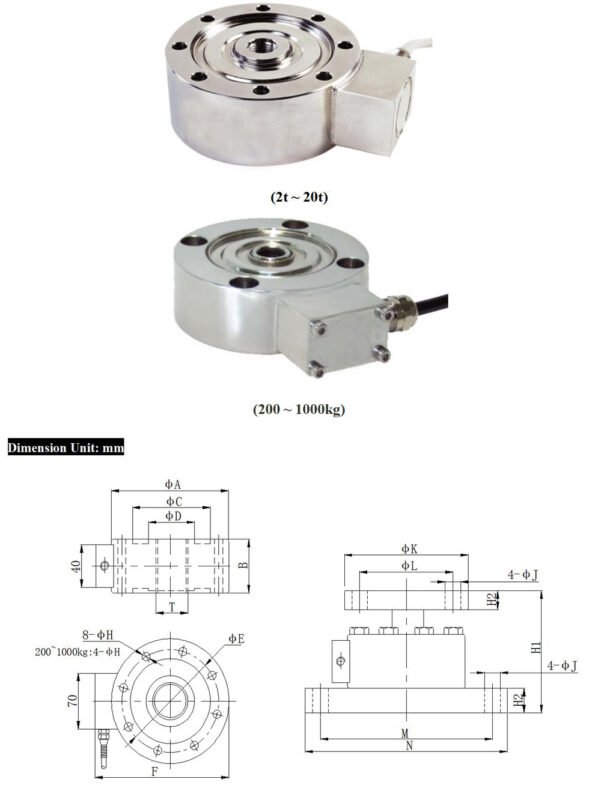

LC509_01



Cap/Size A B C D E F H K L H1 H2 M N J T
0.2~1t 78 27 50 22 65 100 6.5 90 70 54 9 φ90 φ70 7 M12×1.75
2t 112 46 81 27 96 147 6.5 130 106 105 23 185×105 210×130 12 M16×2
3~5t 118 46 86 34 100 153 9 130 106 107 23 185×105 210×130 12 M18×1.5
10t 138 60 98 50 116 180 11 160 126 140 30 125×125 160×160 14 M24×2
20t 182 80 128 74 154 228 14 200 150 175 30 160×160 200×200 14 M39×2



Technical Parameter:

Rated Load: 0.2/0.5/1/2/3/5/10/20t
Sensitivity: (2.0±0.1%) mV/V Operating Temp. Range: -30~+70℃
Combined Error: ±0.05% F.S Max.Safe Over Load: 150%F.S
Creep Error(30min): ±0.03% F.S Ultimate Over Load: 300%F.S
Zero Balance: ±1% F.S Recommend Excitation: 10~12V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Maximum Excitation: 15V DC
Temp. Effect On Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 385±5Ω Load Cell Material: Alloy Steel, Stainless Steel
Output Resistance: 350±2Ω Cable: Length=L:5m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60
Mode Of Connection: Red(Input+),Black(Input),Green(Output+),White(Output-)



Product name LC509 Torsional Ring Load Weighing Sensor Spoke Type Truck Scales Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
