NS-TH1 Series Load Cells
Parameter
Dimensions
Wiring Definition

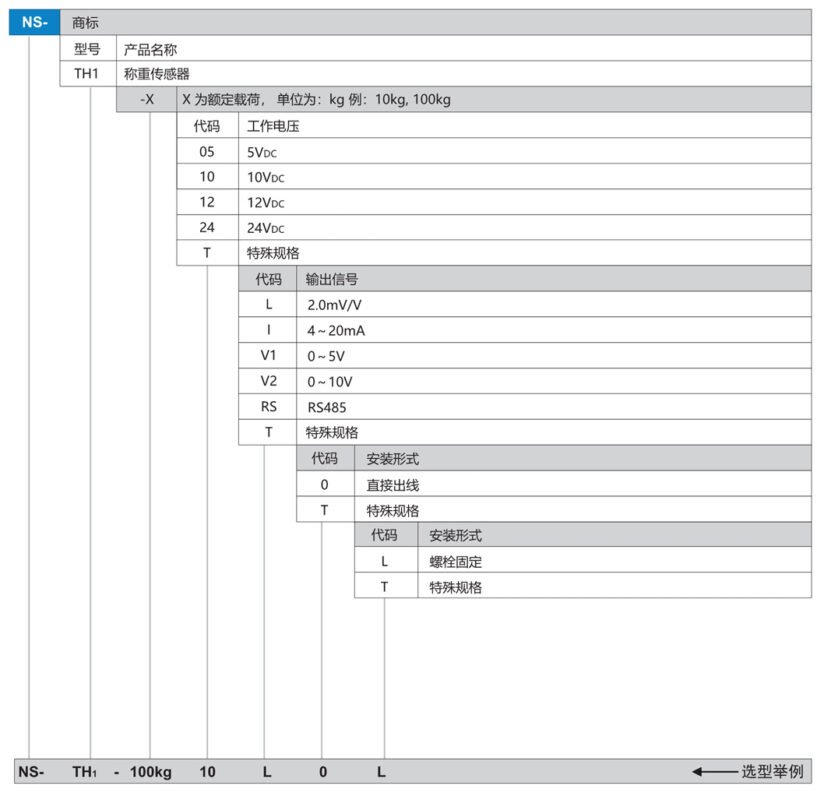

Selection table
NS / NS-TH1 Series Load Cells
- NS-TH1 series load cell is composed of combined S-beam structure and metal foil strain gauge, with overload protection device;
- It has the advantages of high measurement accuracy, good temperature characteristics and stable operation;
- It is widely used in dynamic and static measurement of various structures and primary instruments of various electronic scales.
- NS-TH18 series load cells are compact in structure, low in height, and have good eccentric load resistance
- It is an upgraded product of TH17 series
- Used in automotive press-fitting, automation equipment and other fields
Product description:
Capacity ：10kg~50Ton
Alloy Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in electronic truck scales hopper scales, automotive testing equipment other electronic weighing or force measuring fields
Widely used in medical testing, robotics, mold assembly and other industrial test, measurement and control systems;
It is also suitable for various industrial weighing systems such as testing machines, truck scales, hopper scales and so on.
Material: stainless steel, alloy steel
Size: Flanged, Range can be customized
Product Numbers:TAS511
Product description:Features:
Capacity ： 0~1000kg
Material: stainless steel
Type: compression and tension type
Defend grade: IP67.
Application: the compression and tension measurement in medical and weighing system.
- Rail-type installation is convenient
- Input reverse polarity protection and output protection
- Through 4000V EMC. Strong anti-interference ability
- Long-term stability and high precision
- Can be equipped with various strain gauge sensors
It can be applied to testing machines, truck scales, hopper scales, various industrial weighing systems, etc.
Material: stainless steel, alloy steel
Size: Large range Other ranges can be customized
Product description:Features:
Capacity ：0.5~50Ton
42CrMoA alloy steel
Compact structure
Nickel plating on surface
Suitable for material testing machine, packaging scale, belt scale, hopper scale and other force testing instrument as well as automation equipment and testing filed.
Product description:
Capacity ：30~1000kg
Material: stainless steel
Defend grade: IP66.
Application: It is widely used for electronic truck scales, hopper scales, automotive testing equipment other electronic weighing or force measuring fields and other automation fields.
