LC201 S Load Cell 200kg S Type Load Cell 20/100/200/300/500/750kg/1/2/3/5/10T
Dimension:Unit: mm
| Cap/Size |
A |
B |
C |
H |
T |
| 20~150kg |
70 |
12 |
76 |
64 |
M8 |
| 200~500kg |
70 |
20 |
76 |
64 |
M12 |
| 0.75~1t |
70 |
25 |
76 |
64 |
M12 |
| 1.5~5t |
90 |
32 |
95 |
90 |
M20 |
| 7.5~10t |
90 |
40 |
95 |
90 |
M24 |
Product Characteristics:

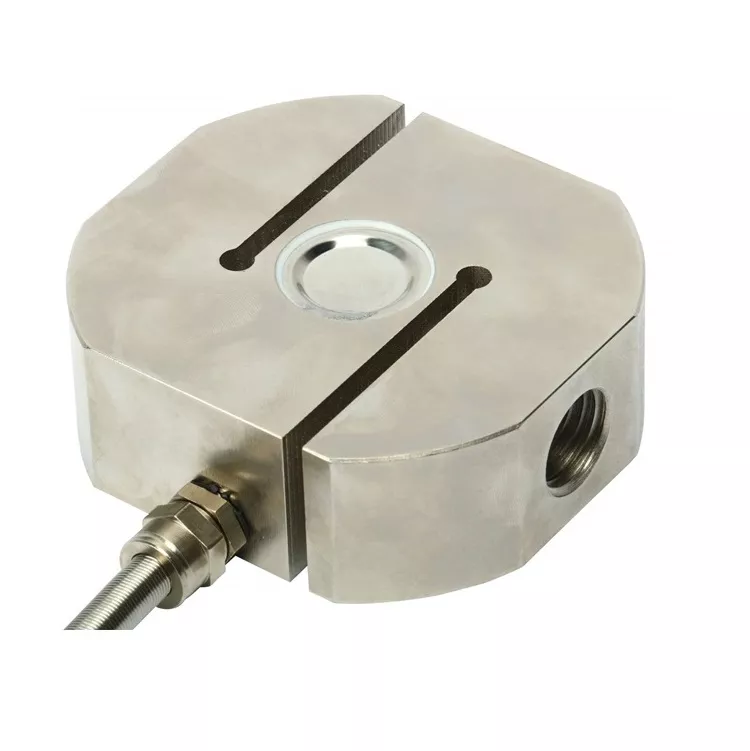

The LC201 S-Type Tension Load Cell (also S-Beam Load Cell) is available with maximum capacities ranging from 20 kg to 10t. Due to its design this S Load Cell permits convenient weighing of suspended tanks or use in conveyor, batching or hybrid scales. The main field of applications is in gravimetric level measurement. Hermetic encapsulation ensures the IP67/IP68 degree of protection. Applications in the chemical industry or mills are also possible with the optionally available versions.
Technical Parameter:
| Rated Load: |
20/100/200/300/500/750kg/1/2/3/5/10t |
| Sensitivity: |
(2.0±0.1%) mV/V |
Operating Temp.Range: |
-30~+70℃ |
| Combined Error: |
±0.03% F.S |
Maximum Safe Over Load: |
150%F.S |
| Creep Error (30min): |
±0.03% F.S |
Ultimate Over Load: |
200%F.S |
| Zero Balance: |
±1% F.S |
Recommend Excitation Vol.: |
10~12V DC |
| Temp. Effect On Zero: |
±0.05% F.S/10℃ |
Maximum Excitation Vol.: |
15V DC |
| Temp. Effect On Span: |
±0.05% F.S/10℃ |
Sealing Class: |
IP67 |
| Input Resistance: |
385±5Ω |
Element Material: |
Alloy /Stainless Steel |
| Output Resistance: |
350±2Ω |
Cable: |
Length=L:3m |
| Insulation Resistance: |
≥5000MΩ |
Citation: |
GB/T7551-2008/ OIML R60 |
| Mode Of Connection: |
Red(Input+),Black(Input-),Green(Output+),White(Output-) |
