Micro low capacity beam load cell NF501
Features

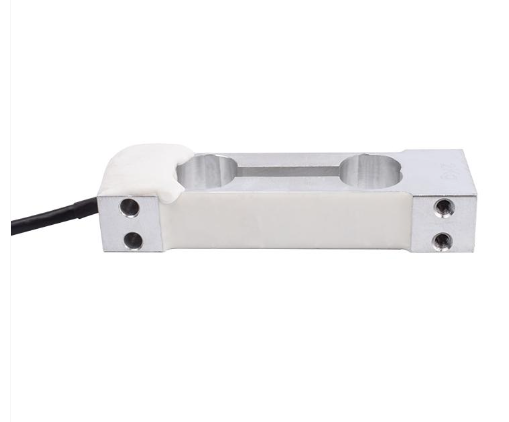

Micro low capacity beam load cell NF501 is a full bridge sensor. The shear beam sensor weighs only 100 grams with rated capacities of 0.3kg/0.5kg/1kg/1.5kg/2kg/3kg/4kg/5kg. So the low capacity load cell offers limitless possibilities for applications.
- Small size
- High precision
- Easy to install
Applications
- Electronic scale
- Counting scales
- Industrial weighing system

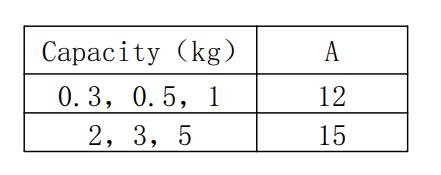

Mounting Dimension
Load Direction

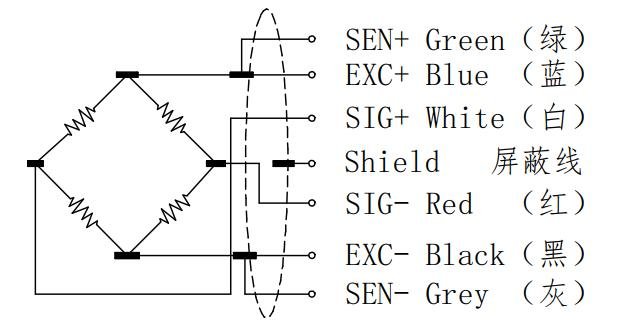

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 300g,500g,1,1.5,2,3,4,5 kg |
| Accuracy class | C3 |
| Rated output | 1.0±10%mV/V(300g,500g); 2.0±10%mV/V(1~5kg) |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.02%F.S. |
| Hysteresis | 0.015%F.S. |
| Repeatability | 0.015%F.S. |
| Creep(30min) | 0.0166%F.S. |
| Temp.effect on output | 0.017%F.S./10℃ |
| Temp.effect on zero | 0.02%F.S./10℃ |
| Input impedance | 380±40Ω |
| Output impedance | 380±40Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | —10~40℃ |
| Operation temp range | —25~70℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ4×400mm |
| Material | aluminum alloy |
| IP Class | IP65 |
| Max.platform size | 200mm×200mm |
