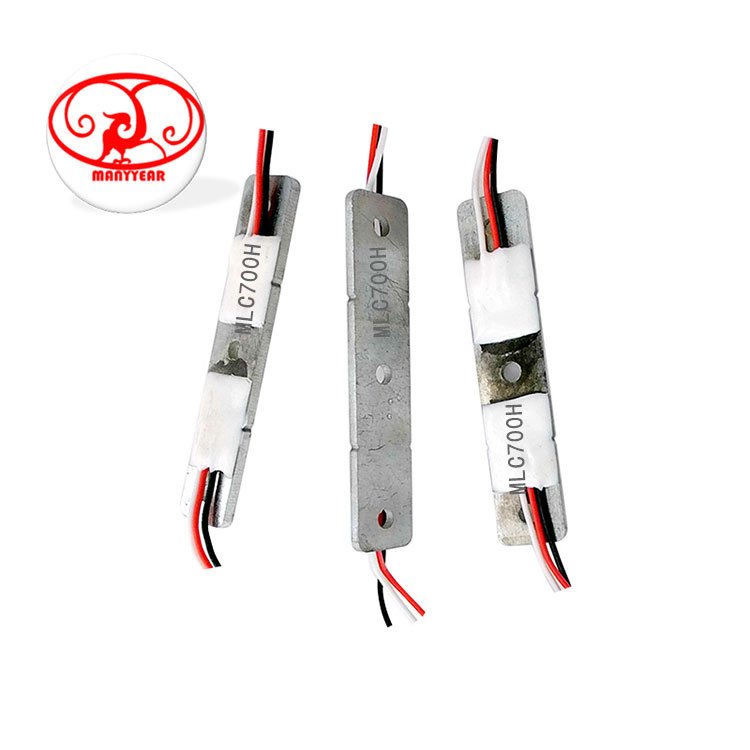

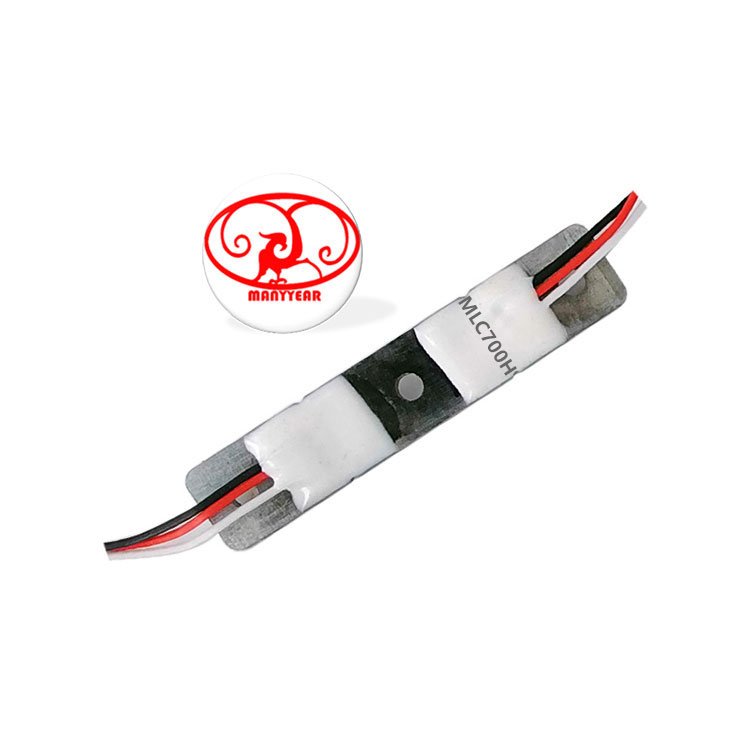

MANYYEAR / MLC700H portable scale load cell

LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAA-ADA-A current is 3kg.The measuring accuracy is 1%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy of aviation standard.
LAA-ADA-A load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.

It is Also known as shear beam weighing sensor, its shape is mostly rectangular, and the strain zone is located in the middle of the sensor. The cantilever beam weighing sensor has the characteristics of simple structure, easy installation, reliable use, long service life, and high cost-effectiveness.
Cantilever beam weighing sensors are used in highway scales such as automobile scales, main axle load gauges, small weighing scales, and flat scales in industrial scales Platform scales, steel cylinder scales, and other fields have been widely used, generally using three or four sensors as a group.

The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.

Stainless steel construction

ZMMA-SS is small size force sensor for compression and tension. Widely used on automation machine and small force test purpose.

Features:

Both compression and tension

ZMMA-CS is miniature type force sensor for both of compression and tension usage.

Features:

Both compression and tension

LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAK-B load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAK-B load cells can be used to measure loads range from 0.3kg to 3kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAK-B load cells are mainly used for electronic balances,counting scales,jewellery scales and retail scales.

The ZM3DW 3 axis load cell utilizes independent wheatstone full bridge for Fx, Fy, Fz which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Cusotmaztion can consist of load cells with client’s outer dimension, mouting size, output signal etc. Used with Zhimin’s data logger which can collect load cell’s voltage signal and display force curve.

Compact size

Weighbridge load cells also known as truck scales are designed for truck and rail scales. The ZMHBQ is common product widely used around the world. The ZMHBQ is very cost-effective with C3 class. In most of situations, they are used at 4,6 or 8 numbers together, so their sensitivity must be exact same.

Nickel plated alloy steel

The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.

Compact size

Stainless steel construction
