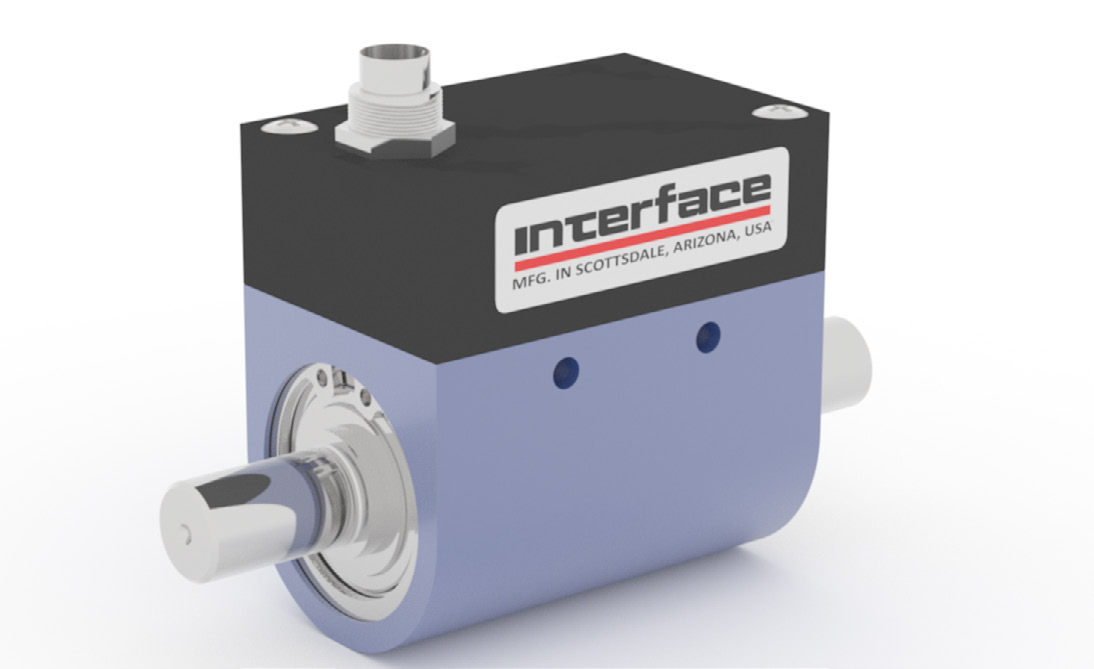

Interface / T2/T4 dynamic torque

• Contact dynamic torque, small range, small size, mV signal output
• Can measure torque values in both forward and reverse directions, but cannot measure rotational speed values
• Both ends are keyed, special shaft lengths can be customized
• Max speed≤1800r/min，Reach quickly 3000r/min

• It is an integrated product composed of resistance strain gauge as sensing element and integrated circuit
• High precision, stable and reliable performance
• Medium/Large range torque measurement, output positive and negative torque signal, keyway connection at both ends.
• Speed up to 16000 RPM.

Resistance strain is an integrated product composed of sensitive components and integrated circuits;There is no wear of the collector ring, etc., it can run at high speed for a long time, and output positive and negative torque signals;Both ends are connected by key;
definition: High precision Stable performance Maximum measuring speed 100 rpm

1. Non-contact type and small size structure to prevent wear
2. High precision, stable and reliable performance
3. Torque value can be measured in both positive and negative directions , also speed can be measured
4. Both ends are connected by key-way
5. The maximum speed of 8000RPM, suitable for long-term high speed rotation conditions

• Boot 5 minutes into the working status, not need preheating course.
• high accuracy, good stability and anti-jamming.
• Do not need repeated zero setting can measure positive and negative torque.
• Small volume, light weight, easy to install.
• The sensor can be used independently of the secondary instrument to directly output a frequency signal or analog that is
• proportional to the torque.

Product description:
Resistive strain is an integrated production of sensitive components and integrated circuits products, high precision, stable and reliable performance.
The collecting ring, which can run at high speed for a long time and output positive and negative torque signals. Both ends are key connections.
The maximum speed dose not exceed 4000rpm.
