T3R60 Three-component Sensor
Technical
| Category | Parameter | Specification | Unit |
| Design | Material | Aluminum Alloy | — |
| Dimensions (L x W x H) | 60 x 60 x 27 | mm | |
| Mounting Type | 2x Internal Thread M3 x 0.5 | — | |
| Weight | 110 | g | |
| Mechanical | Capacity (x, y, z-Axis) | $\pm 10, \pm 20, \pm 50, \pm 100, \pm 200, \pm 500$ | N |
| Safe Overload | 150 | % FS | |
| Ultimate Overload | 300 | % FS | |
| Bending Moment | 20 | Nm | |
| Electrical | Sensitivity Output (x, y, z-Axis) | 0.5 | mV/V @ FS |
| Zero Balance | $\pm 0.1$ | mV/V | |
| Excitation Voltage (MAX) | 10 | V | |
| Input Resistance (x, y-Axis) | $700 \pm 5$ | Ohm | |
| Output Resistance (x, y-Axis) | $700 \pm 5$ | Ohm | |
| Input Resistance (z-Axis) | $350 \pm 5$ | Ohm | |
| Output Resistance (z-Axis) | $350 \pm 5$ | Ohm | |
| Insulation Resistance | $> 5 \times 10^9$ | Ohm | |
| Cable Length | 3 | m | |
| Accuracy | Accuracy Class | 0.5 | % |
| Linearity Error | $\pm 0.2$ | % FS | |
| Hysteresis | $\pm 0.02$ | % FS | |
| Zero Temp. Drift | $\pm 0.02$ | % FS / K | |
| Sensitivity Temp. Drift | $\pm 0.02$ | % RD / K | |
| Creep (30 min) | $\pm 0.1$ | % FS | |
| Crosstalk | Eccentric Load Effect | 1 | % FS / 10Nm |
| Crosstalk (X to Y / Y to X) | < 1 | % FS | |
| Crosstalk (Z to X/Y) | < 1 | % FS | |
| Temp. | Operating Temperature | -20 … +60 | °C |
| Storage Temperature | -20 … +70 | °C |

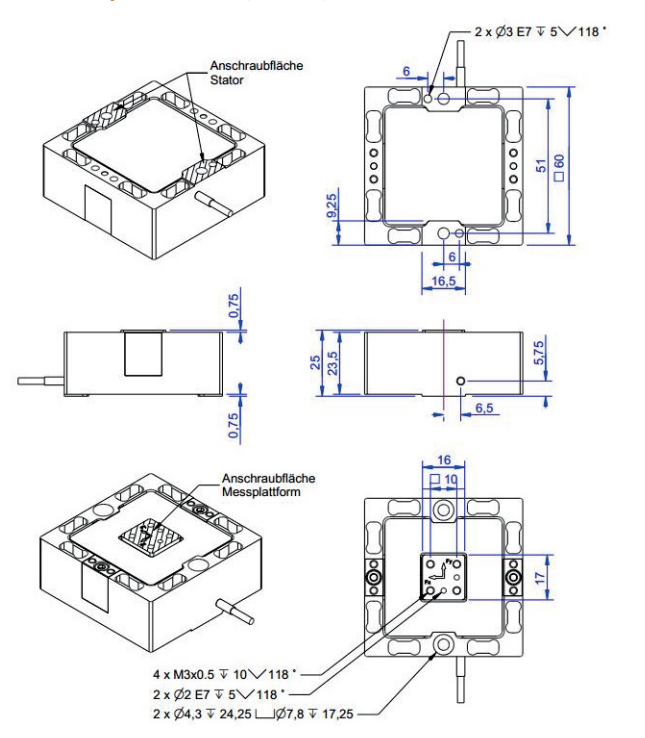

Dimensions
