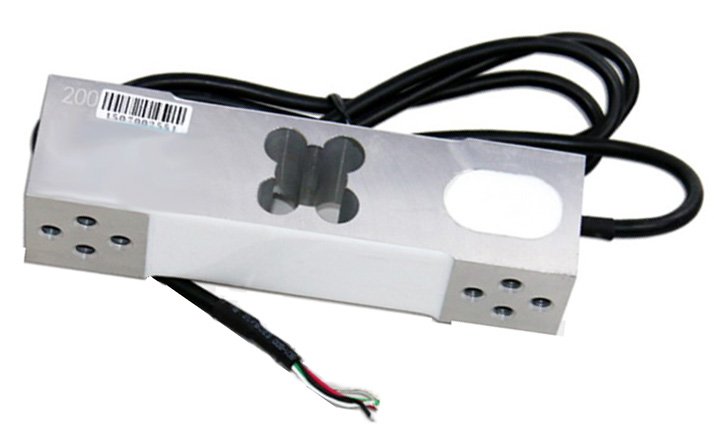

TAL208A Parallel beam load cell
INTRODUCTION:
This load cell is engineered for precision, robustness, and flexibility, making it ideal for a wide range of applications—from tank scales and platform scales to level monitoring systems.
-
Meets OIML accuracy classes D1, C3, C4, C6 and NTEP 5000 IIIM, ensuring highly precise measurements.
-
Available in rated capacities from 110 kg up to 10 t, providing reliable measurement performance.
-
Optimized design for parallel connection of multiple load cells.
-
Stainless steel construction and IP68/IP69K protection ensure exceptional durability even in harsh environments.
-
NEW: HLCi version with integrated smart IO-Link, or analog options (4–20 mA / 0–10 V) available.
