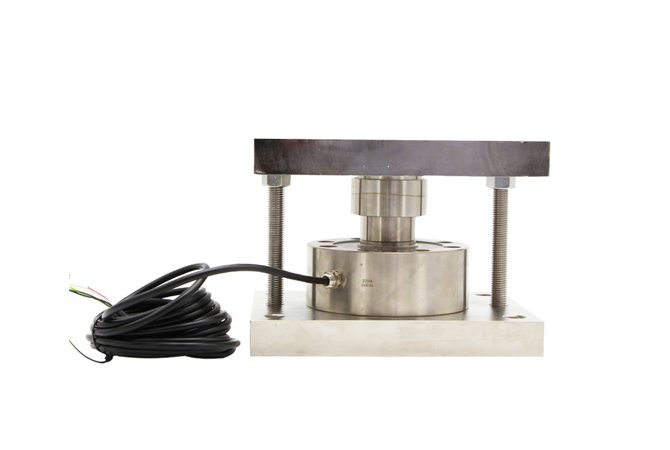

GWM400 Weighing Module
FEATURES
| Rated Load | Size(mm) | |||||||
| kN | L | L1 | A | A1 | H | H1 | <pD | |
| 5-70 | 0.5- 7 | 160 | 135 | 115 | 90 | 100 | 20 | 11 |
| 100 — 250 | 10-25 | 200 | 160 | 160 | 125 | 145 | 25 | 13 |
| 300 — 500 | 30- 50 | 240 | 200 | 180 | 135 | 175 | 30 | 17 |
| 600 — 1000 | 60 — 100 | 300 | 260 | 240 | 200 | 240 | 35 | 17 |
| 2000 | 200 | 400 | 350 | 340 | 280 | 319 | 47 | 21
|
- Alloy steel material, nickel-plated surface, moisture-proof;
- Low height, with limit bolts on both sides, safer;
- Spoke type weighing sensor, wide range;
- Widely used in tank, tower, hopper scale and other occasions.
PARAMETERS
| Rated Load | 5~2000(kN) | ||
| Comprehensive Error | ±0.05D 0.1¾F.S | Excitation, Recommended | 10VDC |
| Rated Output | 2.0mV/V | Safe Overload | 150%F.S |
| Zero Balance | ±1%F.S | Ultimate Overload | 200%F.S |
| Creep | ±0.05%F.S/30min | Insulation Resistance | ≥5000MO(50VDC) |
| Input Resistance | 380±100 or 750±150 | Cable | 4-Wire Shielded Cable |
| Output Resistance | 350±30 or 700±50 | Cable Length | < 5t •3m ; ≥5,t • 6m |
| Temp.Effect on Output | ±0.05%F.S/10°C | Ingress Protection | IP65 |
| Temp.Effect on Zero | ±0.05%F.S/10°C |
Wiring Code |
Exe+ : Red Exe-: Black |
| Operating Temp.Range | -20 — +65°C | Sig+ : Green Sig- : White | |
