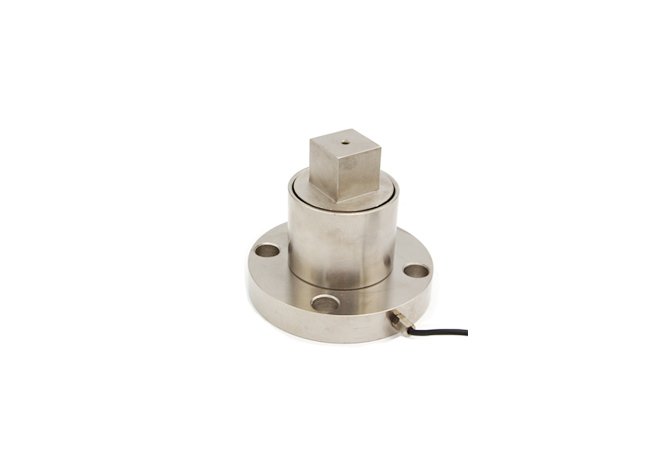

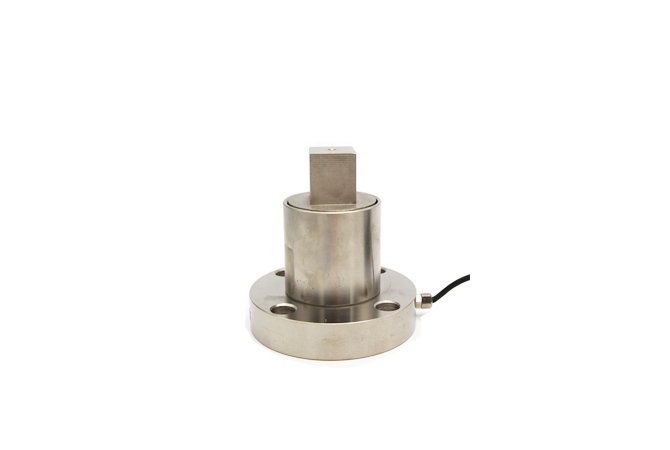

GTS301 Static Torque Sensor
FEATURES
Applicable to measure and control of the static, non-continuous rotation torque force value
| Range | Size/mm | |||||||
| N.m | A | H1 | H2 | H3 | Φ1 | Φ2 | Φ3 | φ |
| 2~200 | 12.5 | 55 | 30 | 15 | 59 | 32 | 45 | 6.5 |
| 300~1500 | 25.4 | 75 | 40 | 24 | 68 | 40 | 55 | 8.5 |
| 2000~3000 | 25.4 | 85 | 44 | 24 | 98 | 56 | 80 | 13 |
APPLICATION
It is mainly used for testing system of testing machine and static torque test. Generally for testing the slow motion of torque, such as: Test manual torque wrench, transmission static load torque, etc., It is the basis of inspection and assembly quality in quality inspection department
SPECIFICATIONS
| Parameters: | |
| Torque range: 2～3000（N.m） | Output resistance: 350±3Ω or 700±5Ω |
| Comprehensive error: 0.1~0.5%F.S | Insulation resistance:＞5000MΩ |
| Rated output: 1.0~1.5mV/V | Safe overload: 150%F.S |
| Creep: ±0.05%F.S/30min | Excitation voltage:10VDC |
| Zero output: ±1%F.S | Material: alloy steel |
| Temp. effect on zero: ±0.05%F.S/10℃ | Wiring connection: Input +: red |
| Temp. effext on span: ±0.05%F.S/10℃ | Input-: black |
| Use temp. Range: -20℃~+65℃ | Output +: green |
| Input resistance: 380±10Ω or 750±15Ω | Output-: white |
