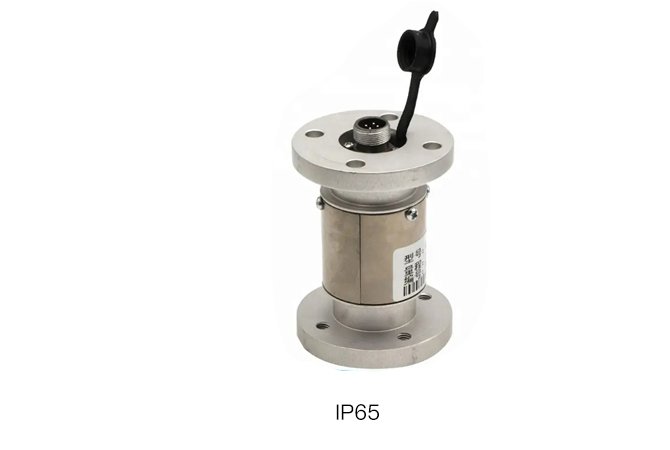

GTS300 Static Torque Sensor
FEATURES
- Double flange connection, easy installation
- Applicable to measure and control of the static, non-continuous rotation torque force value
APPLICATION
It is mainly used for testing system of testing machine and static torque test. Generally for testing the slow motion of torque, such as: Test manual torque wrench, transmission static load torque, etc., It is the basis of inspection and assembly quality in quality inspection department .
SPECIFICATIONS
| Parameters: | |
| Torque range: 1000～5000（N.m） | Output resistance: 350±3Ω or 700±5Ω |
| Comprehensive error: 0.1~0.5%F.S | Insulation resistance: ＞5000MΩ |
| Rated output:1.0~2.0mV/V | Safe overload: 120%F.S |
| Creep: ±0.05%F.S/30min | Excitation voltage: 10VDC |
| Zero output: ±2%F.S | Material: alloy steel |
| Temp. effect on zero: ±0.05%F.S/10℃ | Wiring connection: Input +: red |
| Temp. effext on span: ±0.05%F.S/10℃ | Input-: black |
| Use temp. Range: -20℃~+65℃ | Output +: green |
| Input resistance: 380±10Ω or 750±15Ω | Output-: white |
