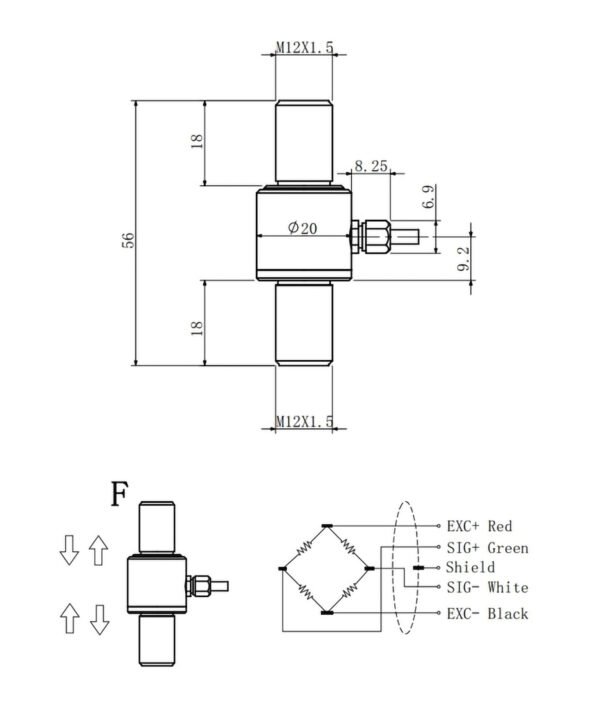

FIBOS / FA207 / 인장/압축로드셀

Эластомер сенсора изготовлен из алюминиевого сплава, герметизирован клеем, поверхность обработана прозрачным анодированием. Степень защиты достигает IP65.

LC8022 is a small-range, small-volume, high-precision single-point weighing sensor. Made of aluminum alloy. the four corner deviations have been adjusted to ensure high weighing accuracy, anodized surface, and IP66 protection level. The sensor is suitable for electronic scales, medical equipment, and industrial process control.

Model 3632 Compression Donut Load Cell features a smooth thru-hole design for use in applications which require the load structure to pass through the cell. The hollow load cells are available for compression only loads in capacities of 25K, 50K and 100K lbs. For optimum performance, this load cell must be mounted between load surfaces which are flat and parallel.

Изготовленная из легированной стали, герметизированная клеем и никелированная модель обладает высокой водонепроницаемостью и коррозионной стойкостью, имеет степень защиты IP66.

Эластомер сенсора изготовлен из алюминиевого сплава, герметизирован клеем, поверхность обработана прозрачным анодированием. Степень защиты достигает IP65.

Model 3336 Tension/Compression Donut Load Cell features a smooth thru-hole design for use in applications which require the load structure to pass through the cell. The hollow load cells are available for tension-compression loads in capacities of 5K, 10K and 20K lbs.
The precision design and manufacture of this versatile transducer style is the result of our experience in the metal working industry and automotive applications.

Ring Torsion Load Cell – Low Profile, Robust, and Highly Precise

• Available in a wide range of capacities from 1 t to 470 t

• High precision guaranteed with 0.05, C3, and C5 accuracy classes

• Available with fixed cable or plug-type versions

• EX version option for hazardous environments

• New: RTN now supports OIML C5 accuracy class

• New: “CP” protective coating option for corrosion resistance

The Model RGM In-Line load cells are high quality, stainless steel, rugged load cells capable of withstanding significant off-axis loads, making them an ideal choice for in-line compression measurement or tension measurement where side loading cannot be completely controlled. The flexible mounting options make applications easier to implement, and the all stainless steel, hermetic construction is well suited to corrosive and very high humidity environments.

The Model 3130-131 fatigue-resistant load cells are extremely resistant to extraneous bending and side loading forces. The structure virtually eliminates bending strains at the strain gage, minimizing the primary cause of load cell failure. Dual bridge option available for feedback control and redundancy.

Designed for general purpose use in demanding applications in automotive, aerospace, and military applications. Some advantages of these tension/compression load cells include compact size, high accuracy, and cost efficiency. The 3140-P has smaller maximum off-center load and moment error than the standard 3140 Series.

The Model 3129-121 fatigue-resistant load cells are extremely resistant to extraneous bending and side loading forces. The structure virtually eliminates bending strains at the strain gage, minimizing the primary cause of load cell failure. Dual bridge option available for feedback control and redundancy.
